Advantech AIM-68H – Medical Grade Tablet

Advantech AIM-68H -10.1″ Medical-Grade Tablet

Features:

• Intel® N200 processor support on Windows10/11 Enterprise for high performance
• 10.1″ WUXGA projected capacitive 10-point multi-touchscreen with anti-fingerprint, anti-glare Corning® Gorilla® Glass
• EN/UL 60601 certification, ensuring patient and medical staff safety by protecting against excessive heat and electronic interference
• The Advantech AIM-68H is equipped with the DeviceOn iService suite software for remote device management
• Built-in Barcode Scanner/NFC Reader provide accurate patient data capture
• LPDDR5 RAM/m.2 NVMe SSDs support Rapid Access to Critical Patient Data
• IP65-rated protection from water and dust ingress
• Shock/Vibration compliance with 4-ft drop tolerance
• Built-in Wi-Fi 6E, Bluetooth 5.3 for high-speed connectivity

Advantech AIM-68H-202000 / 202B00 Specifications:

• Built In Barcode X + V
• Intel® Pentium® N4200 processor
• 8GB DDR5 Memory
• Windows 10 IoT Enterprise (Windows 11/Linux OS optional)
• SSD m.2 NVMe SSD 128 GB (256GB Optional)
• Type 10.1″ IPS LCD Display, WUXGA 1920 x 1200, Brightness (cd/m2) 800
• Touch Type 10-point multi-touch P-CAP touch control
• Glass Type Corning® Gorilla® Glass 3 (Anti-Fingerprint, Anti-Glare)
• Touch Mode -Normal, Glove
• WLAN IEEE 802.11 a/b/g/n/ac/ax (Wi-Fi 6E)
• Bluetooth Bluetooth® v5.3
• NFC 13.56 MHz, compatible with ISO15693, ISO14443A, ISO 14443B, FeliCa
• STANDARD I/O PORT 1x USB3.1 Type-C for Charging & DP, 1x USB 3.1 Type-A
• EXTENDED I/O PORT 1 x AIM extension 14-pin pogo connector, 1 x USB 2.0, 1 x 2-wire UART, 5V/1A power

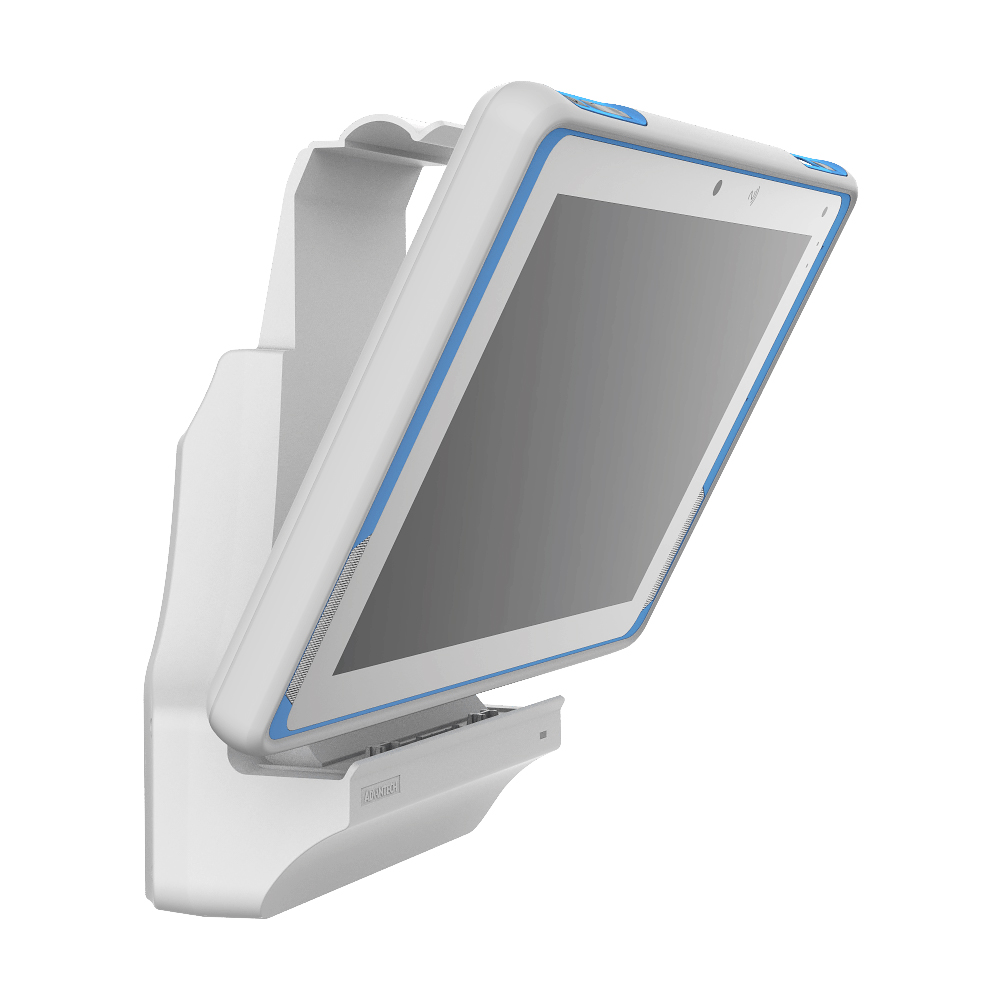

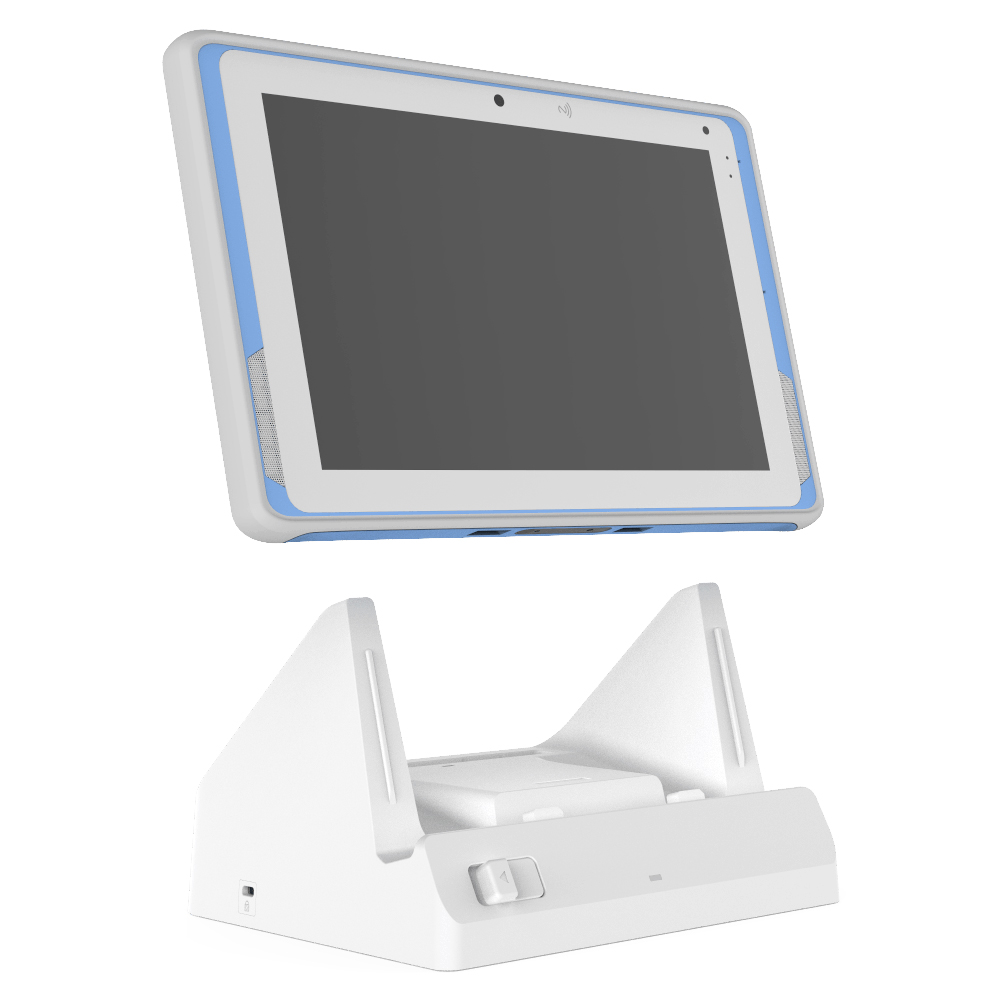

• Docking 1 x AIM docking 16-pin pogo connector: 1 x USB 3.0, 12V power
• Speaker 2 x Internal waterproof speakers (2 W)
• Audio Jack 1 x Audio combo jack (combines stereo audio output and mono microphone input)
• Rear 13.0-megapixel autofocus camera with LED flash
• Front 5 megapixel fixed-focus camera
• Ambient Light Sensor, E-Compass, G-Sensor, Gyroscope
• System Indicators – Full: green (100%); Charging: blue; Low: orange (10%)
• Voltage Input USB Type-C: 20V/3.25A ; Docking pogo: 12V/2A
• Smart battery with capacity LED indicators; 11.55V, 4010mAh, 46.31Wh; Operating time: Up to 5.5 hours (depending on usage scenario); Charging time: < 3 hours
• 1 x Power button, 2 x Volume key (up/down), 1 x Programmable button
• Operating Temperature 0 ~ 40 °C (32 ~ 104 °F)/ Discharging: 0 ~ 40° C (32 ~ 104 °F)/ Charging: 0 ~ 35 °C (32 ~ 95 °F)”
• Shock/Vibration IEC60068-2-27 & IEC60068-2-64
• Drop 1.2M
• Storage Temperature -20 ~ 60 °C/-4 ~ 140 °F
• Humidity Operating: 95% @40°C non-condensing ; Storage: 95% @60°C non-condensing
• IP Rating IP65
• Security  TPM 2.0
• Warranty  2 years
• Dimensions (W x H x D) 280 x 18.3 x 180.1 mm (11 x 0.7 x 7.1 in)
• Weight 1.1 kg (2.4 lb)
• Colour: White/Blue
• Certification:  FCC, CE, UKCA, IEC/EN/UL60601-1, EN 60601-1-2, TELEC, VCCI, CCC, RCN, IC
