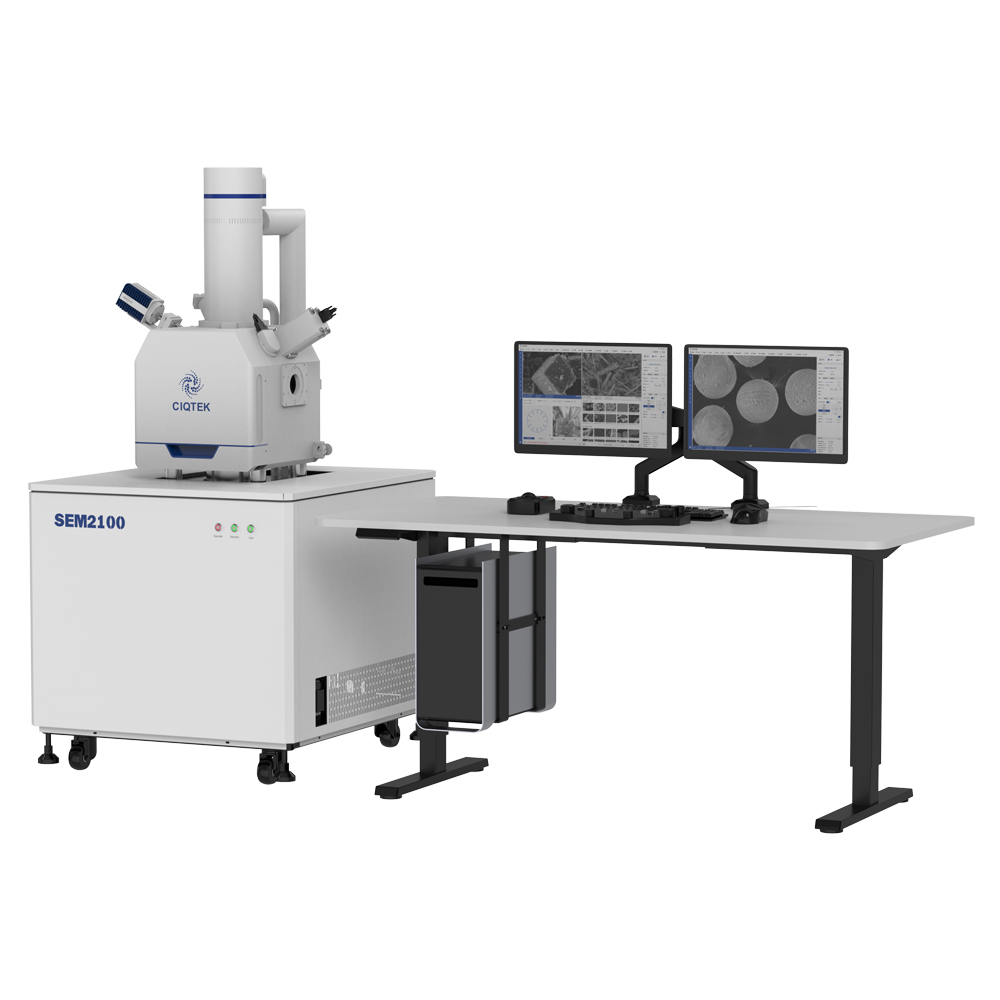

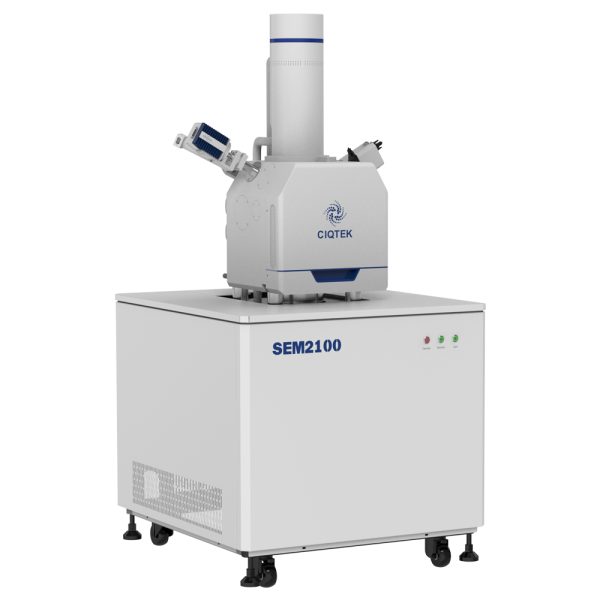

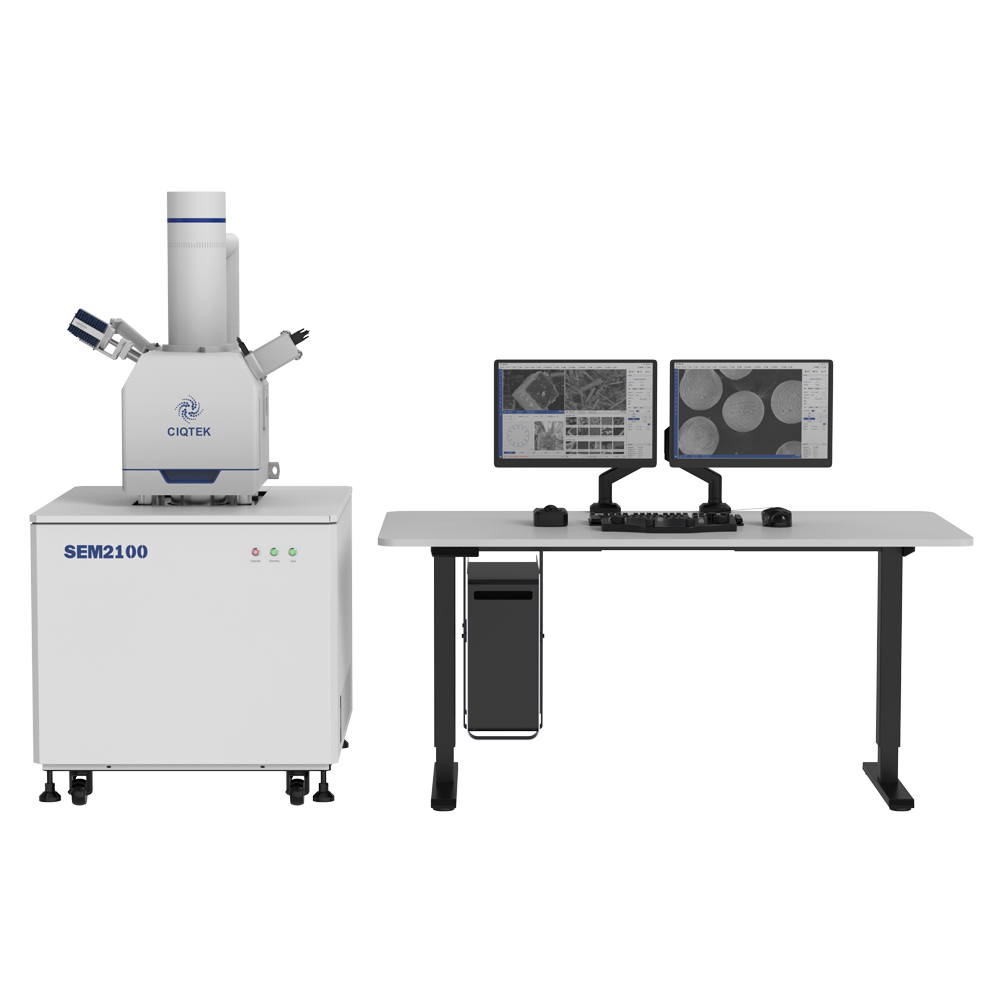

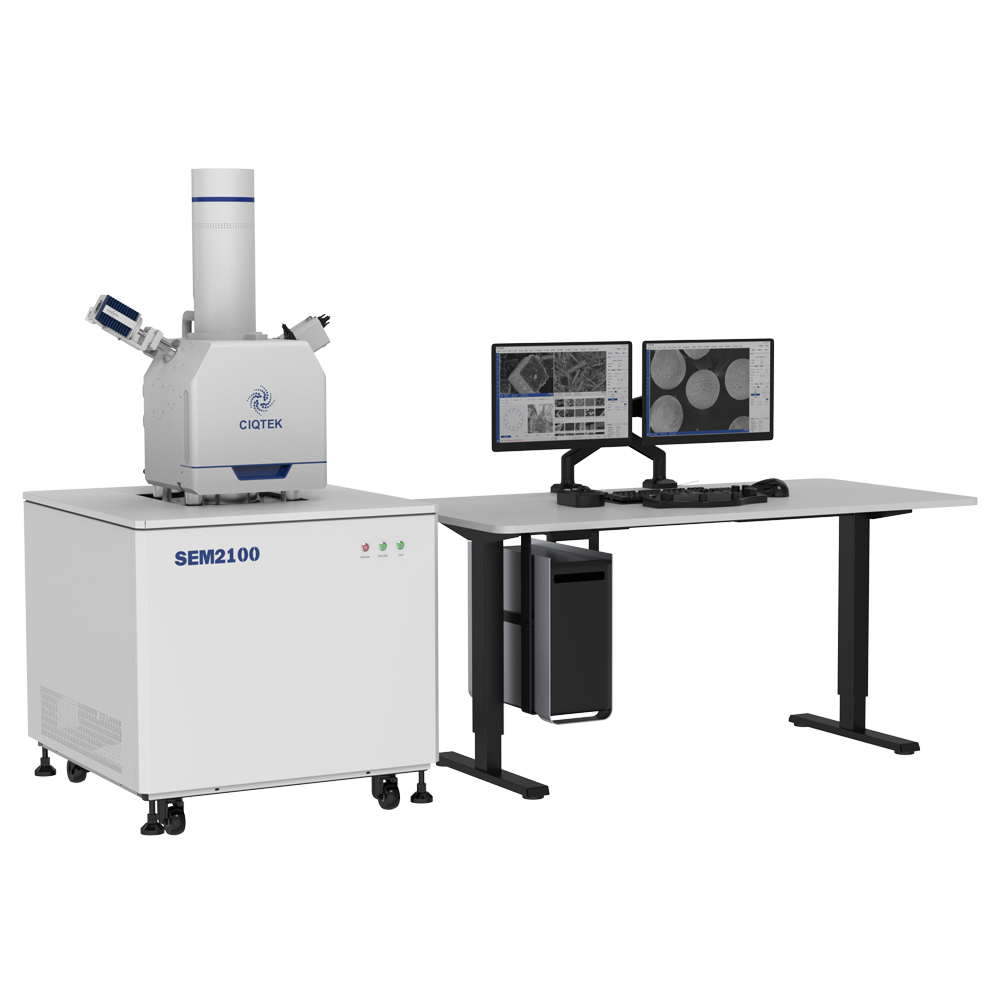

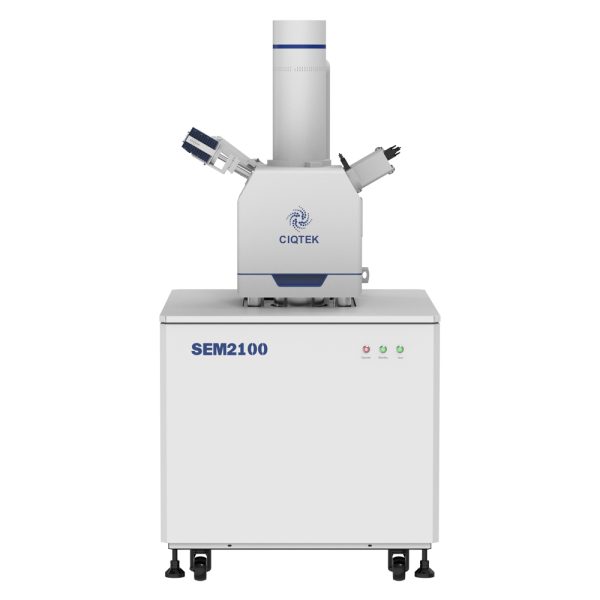

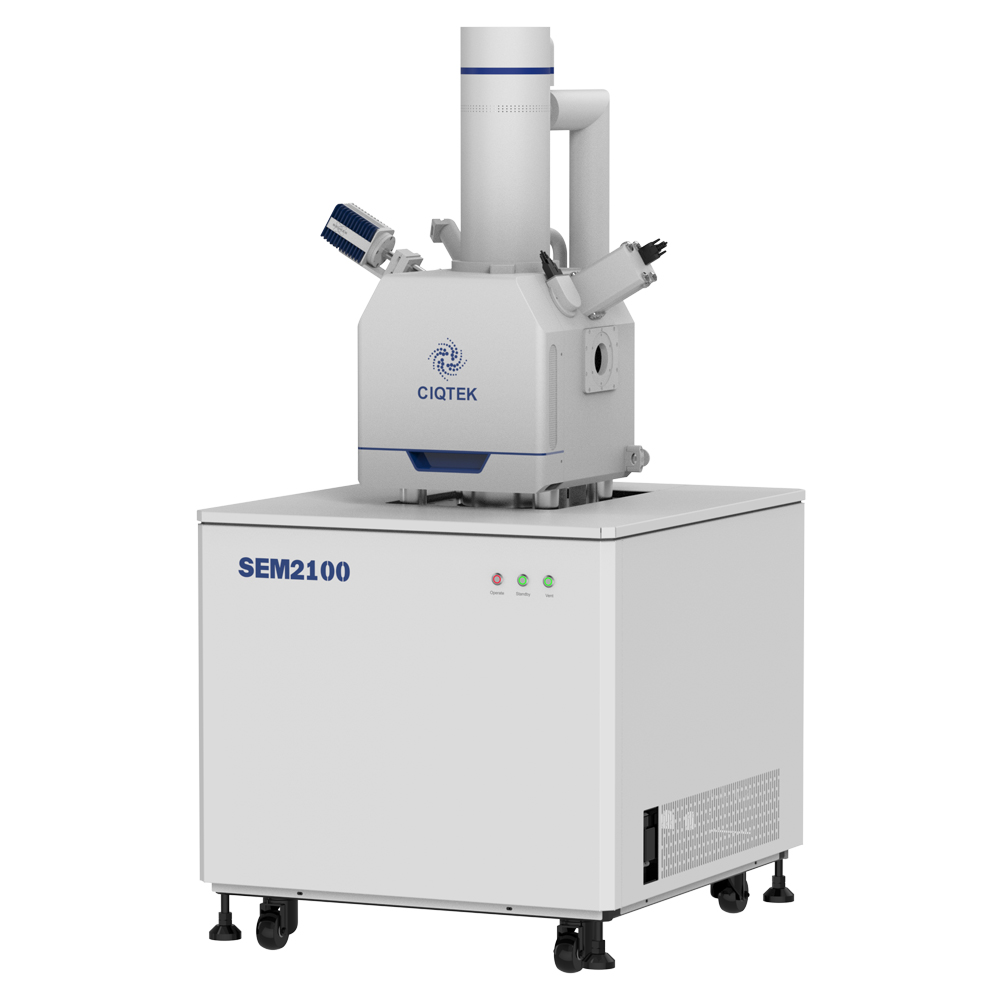

CIQTEK Tungsten Filament SEM2100
Easy-to-use Scanning Electron Microscope Even for Novices
The CIQTEK Tungsten Filament SEM2100 SEM Microscope features a simplified operating process and adheres to industry standards and user habits in its “User Interface” design. Despite the minimalist software interface, it provides comprehensive automated functions, measurement and annotation tools, image post-processing management capabilities, optical image navigation, and more. The design of SEM2100 perfectly realises the idea of “Simplicity without sacrificing functionality”.
Key Features:
- Intuitive, Clear, Easy-to-use UI design
- Comprehensive Automation Functions
- Integrated Image Post-Processing Functions
- Standard Optical Image Navigation
- Excellent Expandability
- Safer to Use
Highlights:
▶ Optical Navigation
Using a vertically mounted chamber camera to capture optical images for specimen stage navigation allows for a more intuitive and accurate specimen positioning.
▶ Intelligent Assisted Image Astigmatism Correction
Under this mode, the astigmatism value of X and Y varies with the pixels. The image clarity is maximised at the optimal astigmatism value, enabling rapid stigmator adjustment.
▶ Auto Functions
Improved Automatic Brightness & Contrast, Automatic Focus, and Automatic Astigmatism Correction Functions. Imaging in a single click!
▶ Safer to Use
Infrared CCD – Real-time chamber interior motion monitoring using image recognition and motion capture technology.
Anti-collision (Software) – Manually input the sample height to accurately define the distance between the sample and the objective lens to prevent collisions.
Anti-collision (Hardware) – Shut off the power to the stage motor at the moment of collision to minimise damage.
▶ Easy Filament Replacement
Pre-aligned replacement filament module ready to use.
