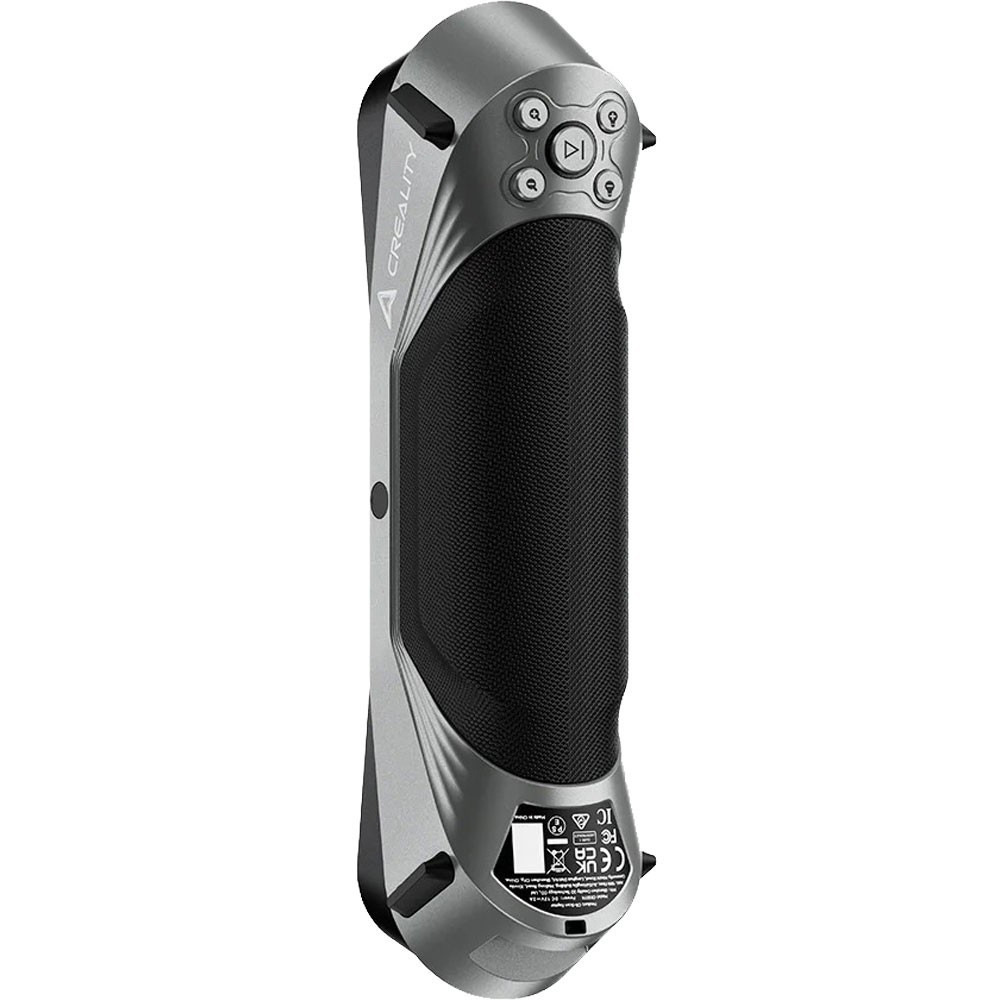

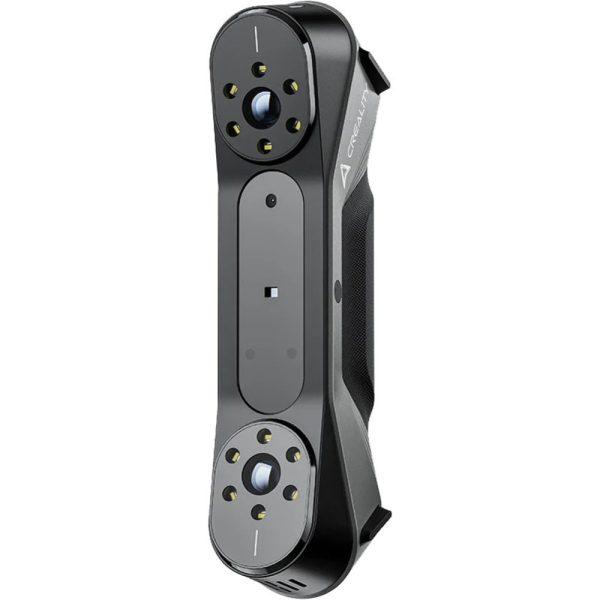

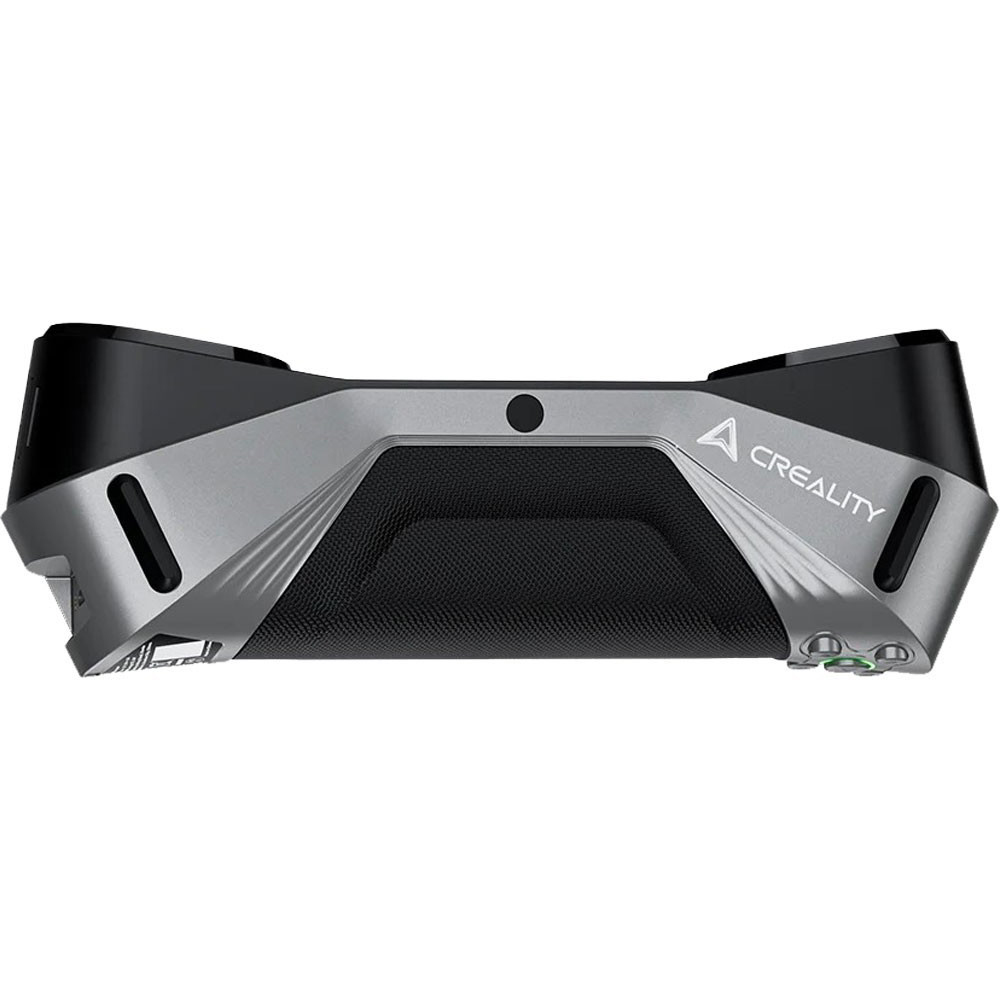

Creality CR-Scan Raptor – Handheld 3D Scanner

Creality CR-Scan Raptor 3D-Scanner, Hybrid Blue Laser & NIR with Metrology Grade Accuracy. The first multiple-line blue laser consumer 3D scanner.

Reliable Accuracy Objects between Sharper edges up to 0.02mm, 5-2000mm, and richer details

  • 7 Blue Parallel Laser Lines
  • Metrology Grade Accurate
  • Up to 0.02mm Sharper Edges and Richer Details

Key Features

  • Hybrid Blue Laser & NIR -416.—00 – 11116
  • Objects between 0.2-79″ / 5-2000mm
  • 1. / 27mm
  • 72. / 1826mm
  • Anti-shaking for Smooth Scanning
  • 24-Bit Full-Colour Scanning
  • High Scanning Speed Up to 60fps
  • Light and Compact n 372g / 0.821b 8.5x2x3″ I—I 215x50x74mm

Creality CR-Scan Raptor 3D-Scanner, Hybrid Blue Laser & NIR with Metrology Grade Accuracy. The first multiple-line blue laser consumer 3D scanner.

Reliable Accuracy Objects between Sharper edges up to 0.02mm, 5-2000m,m and richer details

  • 7 Blue Parallel Laser Lines
  • Metrology Grade Accurate
  • Up to 0.02mm Sharper Edges and Richer Details

Key Features

  • Hybrid Blue Laser & NIR -416.—00 – 11116
  • Objects between 0.2-79″ / 5-2000mm
  • 1. / 27mm
  • 72. / 1826mm
  • Anti-shaking for Smooth Scanning
  • 24-Bit Full-Colour Scanning
  • High Scanning Speed Up to 60fps
  • Light and Compact n 372g / 0.821b 8.5x2x3″ I—I 215x50x74mm

The First Multiple-line Blue Laser Consumer 3D Scanner

Blue Laser & NIR

The Creality CR-Scan Raptor integrates an innovative combination of blue laser and infrared light sources, covering the scanning of small, medium, and large objects, which can meet the needs of diverse industrial 3D scanning scenarios.

Blue Laser

  • 7 Laser Line Metrology Grade Accuracy
  • 7 parallel blue laser lines for fine scanning details, a single laser line is very thin, up to 0.1 mm, to obtain sharper and clearer edges.
  • Accuracy up to 0.02mm

2.3 Million Pixel Metrology-grade accuracy, Raptor can achieve up to 0.02mm under Blue light mode.

  • 2.3 Million Pixel 3D Imaging Camera
  • Sharper and clearer point cloud edges
  • High-speed Scanning Beyond Your Imagination
  • Blue Light Scanning Speed up to 60fps
  • NIR Scanning Speed up to 20fps

Infrared Structured Light Scanning Markerless Scanning

The CR-Scan Raptor utilises speckle-matching 3D imaging, No markers are needed for feature-rich workpieces. Objects can be scanned quickly and directly.

Unique Face & Body Algorithm

Face & body mode is equipped with a unique face mapping algorithm that captures more details, a human body scan only takes as little as 2 minutes.
Accurate and Detailed Scanning

Advanced temperature compensation algorithm

It can improve temperature stability and ensure accuracy.

High-Performance Structure
  • 420mm large depth of field lens
  • Low distortion lens < 5%,
  • 9-elements glass lens
  • Metal lens barrel and holder

The CR-Scan Raptor covers near and far distance scanning and is equipped with good stability in high and low temperatures, providing reliable measurement scanning results.

Versatile Scanning for All Sizes

Combining line lasers with infrared structured light, the Creality CR-Scan Raptor can scan objects ranging in size from 5x5x5 mm3 to 2000x2000x2000 mm3. Effortlessly scanning small figurines, bolts, faces, human bodies, automobile components, and more.

Anti-shaking for Smooth Scanning

Equipped with One-Shot 3D imaging technology, the CR-Scan Raptor is naturally stabilised and less likely to experience tracking loss. Fast backtracking speed ensures smoother handheld scanning.

Scan Black/Metal Objects without Sprays

Even without scanning spray, you can scan cars, car parts, tyres, and other black/metal objects to get the desired model effect.

24-bit Full-Colour Scanning

Equipped with 12 circular LED texture lights, it can enhance the brightness of colour mapping in dark environments and truly present the colour of objects.

Peaceful Scanning in Various Environments

  • Dual-colour circular LED texture lights can help achieve more realistic scanning results.
  • Blue Light Provides supplementary light for laser line scanning.
  • White Light is used to enhance the brightness of colour textures.

Intuitive Experience

  • Ring indicator light, providing real-time scanning status feedback; Paired with buttons, it offers comfortable and straightforward operation.
  • Lightweight and Portable, One-hand Control Lightweight 372g
  • Effectively reduces long-term work fatigue.
  • Anti-slip sleeve
  • Detachable lanyard

High Precision Glass Calibration Board

Utilises a high-precision glass substrate calibration board for accuracy calibration, you can maintain the high precision of the scanner, and maintain accuracy.

See Raptor’s Wide Applications

  • Metrology Grade Inspection
  • Reverse Engineering
  • Mold Manufacturing
  • Action Figure
  • AR / VR
