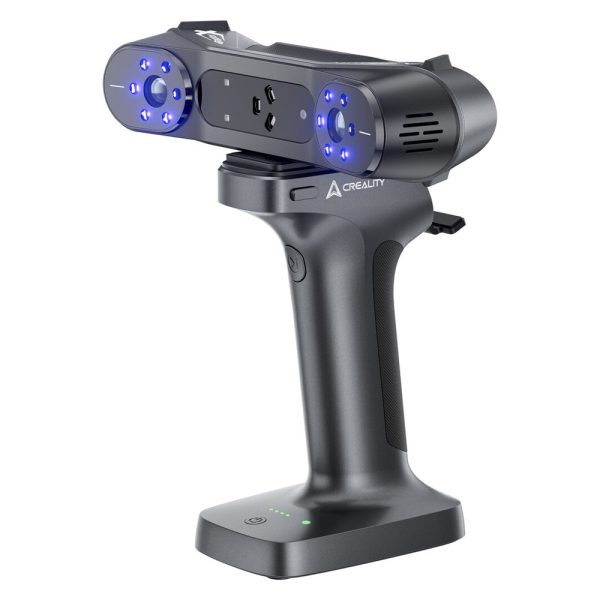

Creality CR-Scan RaptorX – 3D Scanner

Creality CR-Scan RaptorX 3D Scanner – Wireless Hybrid Blue Laser & NIR 3D Scanner

• 34+7 Blue Laser Lines
• Wireless Handle for Data Transmission
• Lightning-fast Wi-Fi 6 & easy-to-connect USB Type-C connection.
• Metrology-grade Accuracy up to 0.02mm
• Objects between 5-4000mm
• Creality RaptorX – World’s 1st Wireless Hybrid Blue Laser & NIR Scanner

Key Features



Volumetric Accuracy
0.02mm
+0.06mm/m

Scan Black/Metal Objects
Without Sprays

34 Cross Laser Lines
1,020,000 points/s

3 in 1
34 Cross Laser Lines
7 Parallel Laser Lines

NIR Structured Light
7 Parallel Laser Lines

Partial HD Scan
NIR Scanning up to 30fps

Objects Between
0.2-157” / 5-4000mm

Wireless Scanning
AX6000

Fast Data Transmission

Large Battery Capacity
Up to 4h Scanning

Full Colour Scanning for All Modes
34+7 Blue Laser Lines

Efficiency and Details

34 cross laser lines for scanning medium to large objects quickly, with the advanced laser line encoding and decoding algorithm to handle denser multi-beam lasers. 7 parallel laser lines for partial HD scanning, which improves both the efficiency and details of 3D Scanning.

34 Cross Laser Lines – High Efficiency, Reliable, Accurate
Easily and Quickly Scan Medium to Large Objects with reliable accuracy. Scanning a whole car in One Go.

The laser array arrangement enables rapid and effortless capture of complete and accurate 3D data from medium to large objects.

High-quality 1,020,000 points/s Fast Scan Speed
The 34 cross laser lines can process up to 1,020,000 points per second, making it ideal for quickly scanning medium to large objects.

7 Laser Lines for Partial HD Scanning
Each laser line is as fine as 0.1mm, capturing sharper edges and richer details. Equipped with a 2.3-megapixel 3D imaging camera, it scans and restores fine details with high accuracy.

Volumetric Accuracy
0.02 mm+0.06 mm/m

High-speed Scanning Beyond Your Imagination

• Laser Line Scanning – Achieve scan frame rates of up to 60fps
• Infrared Structured Light Scanning – Scan at frame rates of up to 30fps

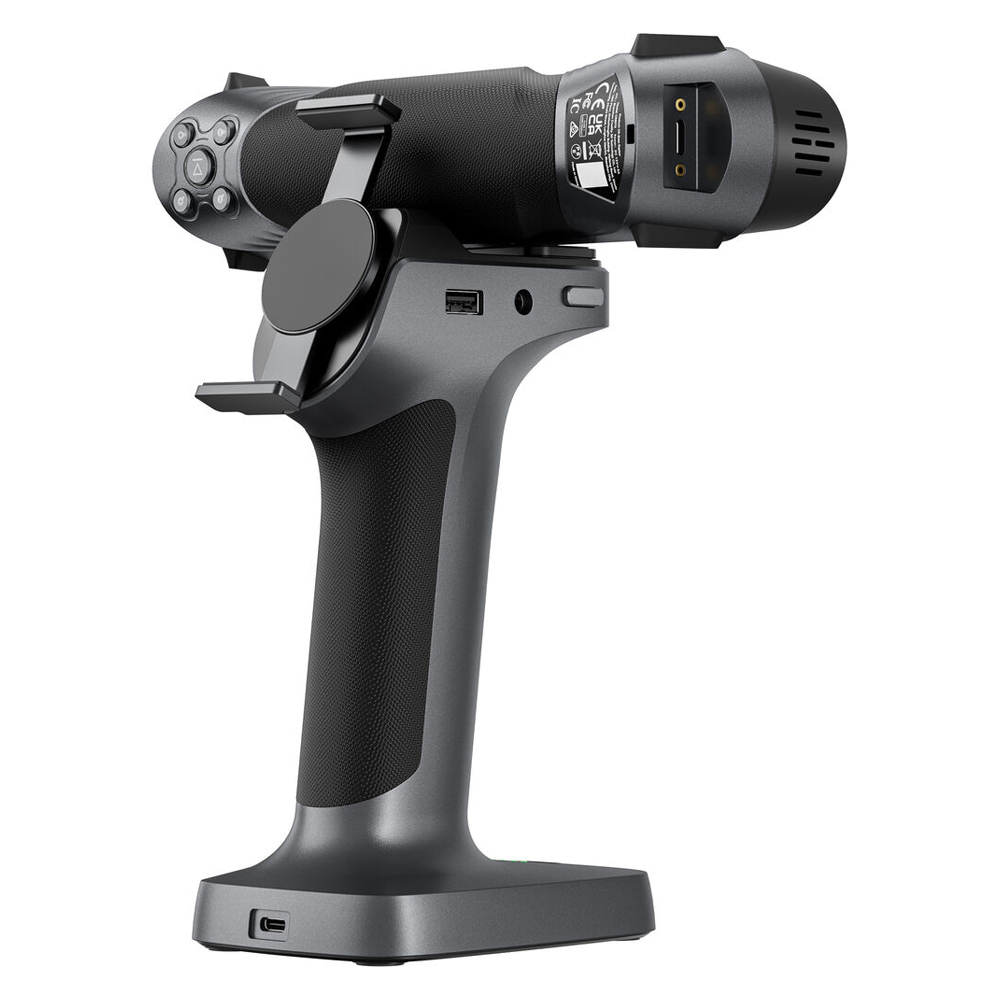

Wireless Scanner

RaptorX features a wireless handle with seamless data transmission, redefining portability in blue laser 3D scanning.
*Note: With the mirroring function, the real-time scanning can be seen easily and wirelessly from the phone.

Wi-Fi 6 AX6000 – Fast Data Transmission
Equipped with an advanced lossless data compression algorithm, RaptorX allows you to transfer scans quickly and easily over Wi-Fi 6 from the scanner to your computer.

• Low latency – 10mS
• Transmission rate – 4.7 Gbps

Large Capacity & Fast Charging

Charges to 80% in just 1.5 hours, making outdoor scanning more convenient and worry-free. Large capacity 35400 mWh battery (Aeroplane Safe).

• 35400 mWh (Aeroplane Safe)
• Magnetic Quick Setup
• Battery indicator
• NIR Structured Light Scanning

Equipped with One-Shot 3D imaging technology, the Creality CR-Scan RaptorX is naturally stabilised and less likely to experience tracking loss. Fast backtracking speed ensures smoother handheld scanning.

High Performance Structure, Details Revealed

• 2.3 Million Pixel 3D Imaging CameraLow distortion lens, less than 5‰
• φ20mm large depth of field lens
• 9-elements glass lens
• Metal lens barrel and holder
• An advanced temperature compensation algorithm can improve temperature stability and ensure accuracy.
• Objects between 0.2-157”/ 5-4000mm

Combining blue laser lines with infrared structured light, RaptorX can scan objects ranging in size from 5*5*5mm³- 4000*4000*4000 mm³. Effortlessly scanning engineering parts, moulds, human bodies, automobile components, and more.

• Laser Line Scanning
• Minimum scan size: 5*5*5 mm³,
• Maximum scan size: 4000*4000*4000 mm³.
• NIR Structured Light Scanning
• Scanning objects ranging from 150*150*150mm³- 2000*2000*2000mm³.
• Lightweight and Portable – Weighs only 405g

Software

CrealityScan is a professional 3D scanning software designed for exceptional user-friendliness and robust image and point cloud processing capabilities. With step-by-step tutorials, one-click model processing, and advanced editing features, your scanning journey from start to finish is simplified.

• 50% Faster Processing Time
• Partial HD Scanning
• Global Marker Scanning
• Point-Cloud Editing
• Face and Body Mode
• Easy Calibration

Seamless Integration to Inspection, Design & 3D Printing Software
The scan data can be imported into mainstream 3D inspection and design software programs, such as Geomagic Control X, Geomagic Design X, and Verisurf Inspect with one click, improving the workflow efficiency.
