CreatBot F430NX

Creatbot F430NX – The Professional Flagship 3D Printer – Suitable for Multiple Grades of Materials.

A new generation of professional-grade high-speed 3D printer

The CreatBot F430 series has been proven to be one of the best-selling professional 3D printers, with a cumulative global sales volume of more than 5,000 units. Now, the new generation product, Creatbot F430NX of this series, has been released. It has a more advanced design concept and profound technical reserves, with powerful performance and no shortcomings. It has a brand-new appearance design; high-precision machined parts are used as the structural framework; the independent dual-nozzle memory silicon carbide large-flow extrusion head enables it to be perfectly compatible with high-performance consumables and high-speed printing. The operation process is simpler, and the 7/24 operation is more stable. In the professional field, it will be your first choice.

Big Build Volume
  • 400*300*300mm
High Resolution
  • 0.04mm
IDEX printing
  • Single printing
  • Dual printing
  • Copy printing
  • Mirror printing
Compatible Filament
  • Consumer-grade:
    PLA, PETG, PLA-CF, etc
  • Industrial-grade:
    ASA, ABS, PC, Nylon, PET-CF, PET-GF, UltraPA-CF, etc
  • Support materials:
    S-270, S-350, etc
Heat Control System
  • Hotend 420°C dual
  • Hot Bed 120°C
  • Hot Chamber 70°C

Creatbot F430NX – Our Professional Flagship 3D Printer from Creatbot– Suitable for Multiple Grades of Materials.

A new generation of professional-grade high-speed 3D printer

The CreatBot F430 series has been proven to be one of the best-selling professional 3D printers, with a cumulative global sales volume of more than 5,000 units. Now, the new generation product, Creatbot F430NX of this series, has been released. It has a more advanced design concept and profound technical reserves, with powerful performance and no shortcomings. It has a brand-new appearance design; high-precision machined parts are used as the structural framework; the independent dual-nozzle memory silicon carbide large-flow extrusion head enables it to be perfectly compatible with high-performance consumables and high-speed printing. The operation process is simpler, and the 7/24 operation is more stable. In the professional field, it will be your first choice.

Big Build Volume
  • 400*300*300mm
High Resolution
  • 0.04mm
IDEX printing
  • Single printing
  • Dual printing
  • Copy printing
  • Mirror printing
Compatible Filament
  • Consumer-grade:
    PLA, PETG, PLA-CF, etc
  • Industrial-grade:
    ASA, ABS, PC, Nylon, PET-CF, PET-GF, UltraPA-CF, etc
  • Support materials:
    S-270, S-350, etc
Heat Control System
  • Hotend 420°C dual
  • Hot Bed 120°C
  • Hot Chamber 70°C

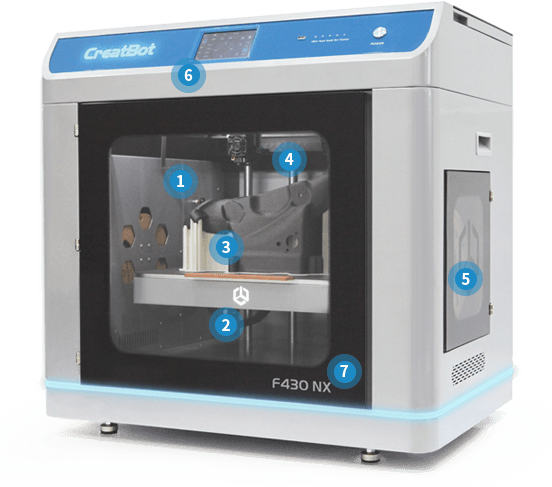

Creatbot F430NX – Core System Details

1. POWERFUL EXTRUSION SYSTEM
  • Independent Dual Extruders (IDEX)
  • Titanium alloy extrusion head
  • Quick-swap hotends
  • 420°C silicon carbide nozzles
2. ACTIVE HEATED CHAMBER
  • Chamber up to 70°C
  • Heated bed up to 140°C
3. MASSIVE PRINT VOLUME
  • 400*300*300mm (Single printing)
  • 360*300*300mm (Dual printing)
  • 225*300*300mm (Copy)
  • 190*300*300mm (Mirror)
4. HIGH SPEED READY
  • Speed 100-300mm/s
  • Z-axis strengthening
CreatBot F430NX
5. MATERIAL OPERATIONS SYSTEM
  • Filament drying room at 70°C
  • Auto Filament Switching
  • Engineering-grade materials
  • Carbon/Glass fibre ready
6. USER EXPERIENCE
  • Flexible build plate
  • Build-in Camera
  • 5” capacitive touchscreen
  • Connectivity via WiFi or Ethernet
  • Status-breathing atmosphere light
7. SAFETY
  • 50db working
  • HEAP and Carbon filter
  • Fault signal light
  • Thermal runaway protection

High temperature hotend 420°C

Using the latest technology of one-piece die-cast memory alloy hot end and super wear-resistant nozzle, with temperature resistance up to 420°C. Compatible with PLA, ABS, ASA, PC, nylon, carbon fibre, and glass fibre materials. The nozzle aperture wear rate does not exceed 10% after printing carbon fibre materials for 2000 hours.

Independent Dual Extruders (IDEX)

This is the best solution for printing engineering-grade materials with independent support materials, ensuring the best quality of engineering-grade material printing. It also supports copy, mirror, and backup mode printing.

Big build volume

The printing size of single printing reaches 400*300*300mm, and the printing size with support materials reaches 360*300*300mm. The printing size is larger than that of most professional-grade products on the market.

Z-axis reinforcement

The back side of the Z-axis is composed of a high-precision ball screw and 4 reinforced optical axes, with high-precision tight fit and synchronous movement. The surface of the model is uniform and free of impurities, improving the printing surface quality of engineering-grade materials.

Active heating of the hotbed/chamber

The active heated bed heating temperature reaches 140°C, and the active chamber heating temperature reaches 70°C. It effectively prevents the shrinkage and cracking of engineering-grade materials, allowing ABS, ASA, PC, Nylon, UltraPA-CF, etc. to be perfectly formed and the mechanical properties to be maximised.

Superior Dimensional Accuracy

The F430 NX is specifically designed with a tight combination of high-precision machined structures to maintain dimensional accuracy and tight tolerances when printing the largest parts in engineering-grade materials. Not only does the F430 NX avoid warping and layer adhesion issues, but it also creates massive parts with industrial-grade precision.

High-resolution touch screen

Adopting a 5-inch high-resolution capacitive touch screen, it has no delay in operation, delicate touch, a user-friendly interface and convenient operation and management.
