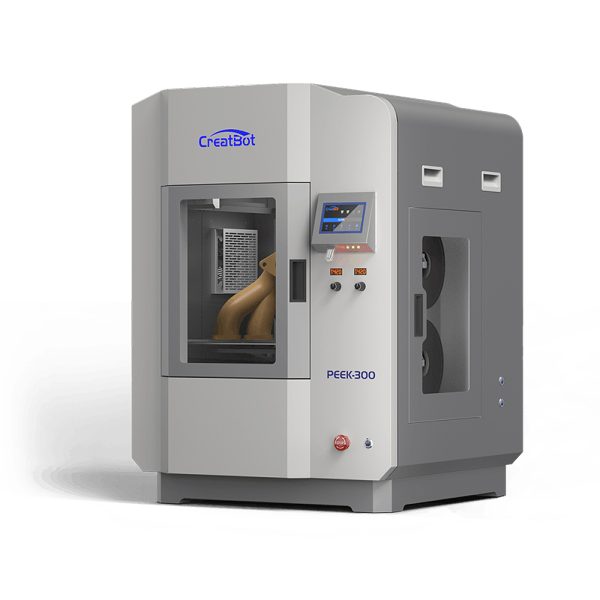

CreatBot PEEK 300

Creatbot PEEK 300 – The Leader in Ultra-High Performance 3D Printers

• Ultra-high temp. nozzle/bed
• Advanced Thermal System
• Direct Annealing System
• Water cooling/ Heat isolation system
• Medical/Industry application

Direct Annealing System

Direct Annealing System (DAS), the world’s first and extraordinary technology by CreatBot. The annealing process is instantly controllable during printing. It aims to provide the best quality parts at one time, without warping and cracking printing of large-scale functional materials. (The technology is patent-protected and available by CreatBot)

Creatbot PEEK 300 – DAS annealing process features:

Instantaneously: Finished during the printing process, no need for secondary treatment in the oven.

Completely: The annealing process points to every extruded filament, not the whole printed model. The internal structure of the whole model could not be fully crystallised, or it would deform in the oven.

Controllable: The surrounding temperature can be adjusted to 0-200 °C. The different requirements of toughness and strength can be met by adjusting the DAS temperature function at different material parts.

What concept do you need to know first?

• Heat control system
• High temp. hotend
• hotbed
• hot chamber
• Direct Annealing System
• Cooling system
• liquid cooling
• Air pump cooling

Advanced Parameters

• Hotend max. 480°C with dual extruder
• Heatbed max.200°C
• Hot chamber max. 120°C
• Build volume: 300 x 300 x 400 mm
• Triple heat isolation and liquid cooling system

New Technologies

The Direct Annealing System (DAS) is a revolutionary technology designed and patent-protected by CreatBot. It is the most advanced technology applied to 3D printing high-performance material.

Printing Materials

• Engineering Plastics: PLA, PC, ABS, PA6, PETG, PVDF, POM-C, PP, TPU
• High temperature Material: PPSU, PEI (ULTEM), PA12, PSU, PPS, PA-CF
• Ultra performance material: Medical grade PEEK, PEEK, PEKK, PEEK-CF (Carbon fibre), PEEK-GF (glass fibre), etc
• Smart Auto-rising dual extruders 480 °C

The Creatbot PEEK 300 is equipped with Creatbot’s new technology, smart Auto-rising dual extruders. Water cooling, DAS system, Auto-rising extruders.  Dual nozzle temperature is up to 480°C. You can print any 3D printer material in the world. We can say it is the best choice of polymer materials.

Cooling System

The Cooling system is one of the important parts to constitute the whole thermal system. It is made of liquid cooling. Circulating liquid can be used effectively for a long time.

Air pump cooling. Providing cold air from outside instead of hot air inside the chamber.
