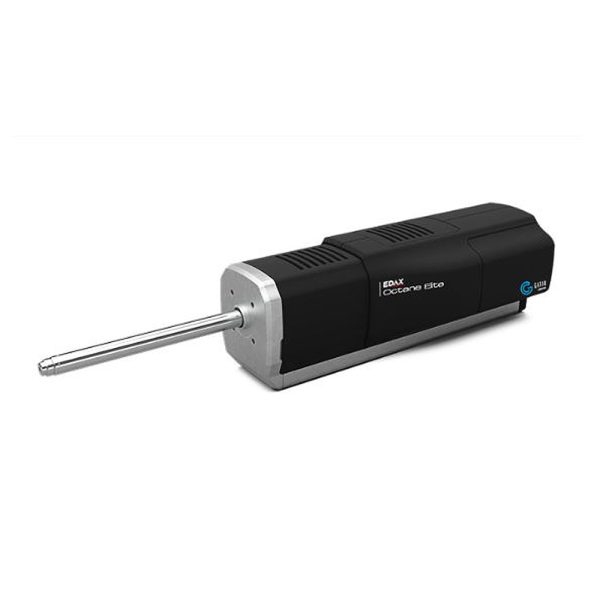

EDAX Octane Elite EDS System

The EDAX Octane Elite EDS system offers game-changing advancements in the with Octane Elite silicon drift detectors (SDDs) take energy dispersive spectroscopy (EDS) analysis to the next level. This system includes detectors with a silicon nitride (Si₃N₄) window, offering remarkable improvements in low energy sensitivity for light element detection and low kV microanalysis. The Octane Elite detectors also use high-speed X-ray data processing technology within a smaller and fully vacuum-encapsulated detector device.

The EDAX Octane Elite EDS system offers game-changing advancements with Octane Elite silicon drift detectors (SDDs) taking energy dispersive spectroscopy (EDS) analysis to the next level. This system includes detectors with a silicon nitride (Si₃N₄) window, offering remarkable improvements in low-energy sensitivity for light element detection and low-kV microanalysis. The Octane Elite detectors also use high-speed X-ray data processing technology within a smaller and fully vacuum-encapsulated detector device.

The EDAX Octane Elite SDDs are available in two models:

Octane Elite Plus – 30 mm² chip
Octane Elite Super ‐ 70 mm² chip

Best light element performance

The silicon nitride window offers significant improvements compared to a polymer window, improving light element performance and significantly more critical data for the analyst.

Si₃N₄ window

The silicon nitride window offers superior low-energy transmission compared to a polymer window.

Features and benefits of the EDAX Octane Elite

Low kV performance

The mechanical properties of Si₃N₄ allow the use of thinly fabricated windows, offering a great benefit in terms of sensitivity and optimal low-voltage analysis.

Optimised SDD electronics

Fast pulse processing from mapping and quantification
Optimised data quality at all count rates
High-resolution quantitative analysis at mapping speeds greater than 400,000 output cps

Throughput

EDAX EDS systems with advanced detection electronics offer the highest throughput count rates on the market for the best possible analysis and increased productivity.

Reliability

The material properties and durability of Si₃N₄ensure the most robust and reliable detectors available for all EDS applications.

Motorized slide

The motorised slide offers complete control of the detector via the software and is optimal for analytical flexibility. It is ideal for all focused ion beam (FIB) systems.

APEX software for EDS allows users to optimise their analysis time and get the best possible data from their sample

APEX™ ensures high-quality, accurate results and increased productivity with its easy-to-use interface, live-time graphical display, and simultaneous review mode.
