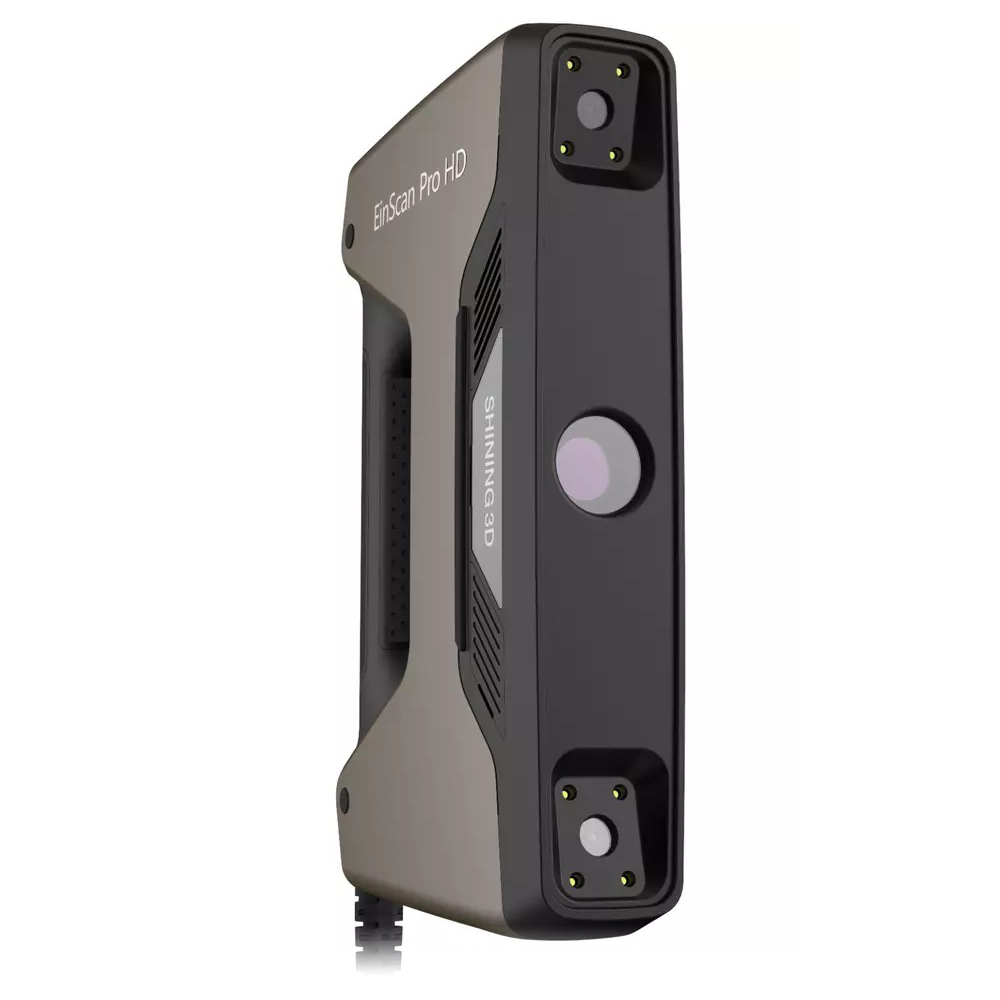

EinScan Pro HD 3D Scanner

EinScan Pro HD delivers unparalleled performance in capturing high resolution and accuracy by handheld scanning. Exceptional versatility and powerful optimisations come together for the ultimate high-efficiency and professional-grade 3D scanning experience.

Key Features

  • Improves the Efficiency of High-quality 3D Modeling
  • Impressive high resolution for fine details
  • Handle dark and casting metal surfaces with fewer limitations
  • Fast scan speed for high efficiency

EinScan Pro HD – Professional 3D Scanner

EinScan Pro HD delivers unparalleled performance in capturing high resolution and accuracy by handheld scanning. Exceptional versatility and powerful optimisations come together for the ultimate high-efficiency and professional-grade 3D scanning experience.

Key Features

  • Improves the Efficiency of High-quality 3D Modeling
  • Impressive high resolution for fine details
  • Handle dark and casting metal surfaces with fewer limitations
  • Fast scan speed for high efficiency

Inherited multi-functional and modular design of EinScan Pro series handheld 3D scanner, EinScan Pro HD delivers unparalleled performance in capturing high resolution and accuracy by handheld scanning. Exceptional versatility and powerful optimisations come together for the ultimate high-efficiency and professional-grade 3D scanning experience. It is a reliable assistant for designers and engineers who care about high-quality 3D modelling.

Impressive High Resolution for Fine Details

By adopting a new structure, light projection modular, the stripe pattern scanning, which was traditionally used in Fixed Scan Mode, is now utilised in Handheld HD Scan Mode. By 0.2mm minimum point distance setting with an optimised algorithm, it brings high resolution and accuracy in handheld scanning as good as under fixed scan.

Lesser Limitations of Scan Objects

With new lighting projection hardware and software algorithms, EinScan Pro HD is capable of scanning a wider range of objects of dark or black colour and casting metal surfaces, enriching the capability for 3D scanning of materials.

Fast Scanning Speed and Data Transmission

EinScan Pro HD has a dramatic breakthrough in scanning capability, processing up to 3,000,000 points per second under handheld scan mode, and less than 0.5s for every single frame in Fixed Scan Mode. USB 3.0 provides high-speed data transmission.

High Accuracy for High-Quality 3D Modelling

By various positioning methods, both scanners and objects can be moved during scanning. It delivers accuracy up to 0.04 mm in Fixed Scan Mode. Under handheld scanning mode by marker alignment, the volumetric accuracy is up to 0.045 mm + 0.3 mm/m.

Modular Design for a Wide Range of Applications by Multi-Scan Modes and Data Alignments

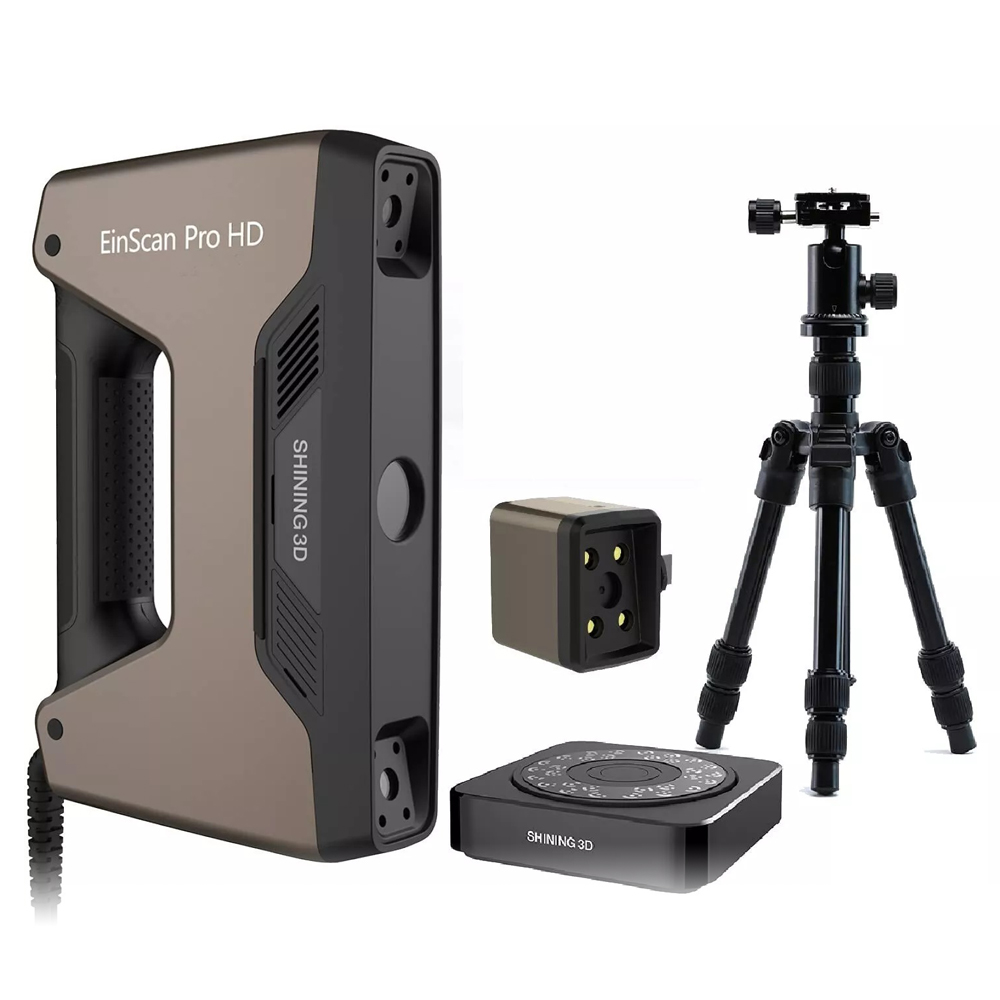

Modular-designed Colour Pack and Industrial Pack as optional add-ons to EinScan Pro HD extend your scanning experience for more applications. Multiple positioning methods,
including feature alignment, marker alignment, turntable coded targets alignment, manual alignment and texture alignment (with Colour Pack),  greatly enhancing the scanning efficiency without additional preparation.

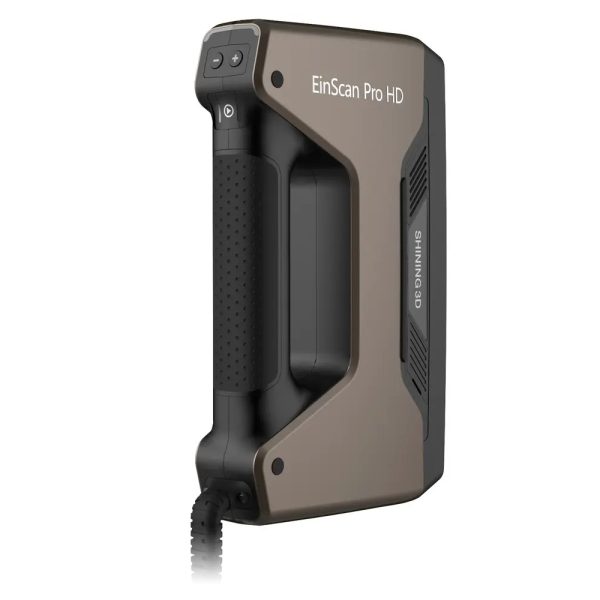

Take the Portable EinScan Pro HD Anywhere You Go

Ergonomic designed EinScan Pro HD with lightweight, you can easily take the scanner anywhere you go; easy plug-and-play lets you run the scanner without complex installation; the compact size allows the scanner to move freely with unlimited scanning experience.

Package Size

37 X 36.5 X 13.5 cm

Lightweight

1.13 KG

ExScan Pro Software

ExScan Pro is a professional software for 3D scanning and data processing with a collection of both scan and mesh editing tools for generating high-quality 3D models.
Accuracy of EinScan Pro Series Scanners
Factory tested accuracy according to VDI/VDE 2634 standards.

QuickSurface RE Solution

Working with large meshes, QUICKSURFACE provides all the necessary tools to convert the meshes into editable CAD models. Interactive tools for hybrid parametric modelling of both organic and prismatic shapes that fit the meshes. Export data in standard IGES or STEP file formats, or build a fully parametric history tree directly into other CAD packages.
