EinScan SP-V2 3D Scanner

EinScan SP-V2 3D Scanner

The EinScan SP-V2 3D Scanner is the expert’s choice for an enhanced scanning experience. With precise calibration in a simple way, achieving high accuracy of better than 0.05 mm. Depending on the size of the object, scanning can be carried out using a turntable for automatic scanning or a tripod for manual scanning.

Easy Operation, Faster Scanning Speed

• One-click scanning
• Automatic calibration with no rigid set-up required
• 1 second for a single scan
• 45 seconds for a 360-degree scan under auto-scan mode
• Fine details
• Highly detailed reproduction of display data
• Compatible with 3D printers
• Auto-meshing to watertight 3D data
• Seamlessly connect to 3D printers
• Provide API access service for any brand of 3D printers

Extensive post-processing functions

Software of EinScan-SE/SP V2 has the functions of filling holes, smoothing and sharpening, and can also readjust the data coordinates in the post-processing process to provide more perfect 3D data for subsequent applications.

• Capable of Reverse Engineering and Design in the Office
• Explore a fast scanning experience
• Making the high-resolution scanning available to everyone

For designers looking to recreate detailed models with accurate 3D scans, the EinScan-SP V2 3D Scanner with Turntable enables experienced modellers to easily capture their subjects for reverse engineering, modification during the printing process, and more.

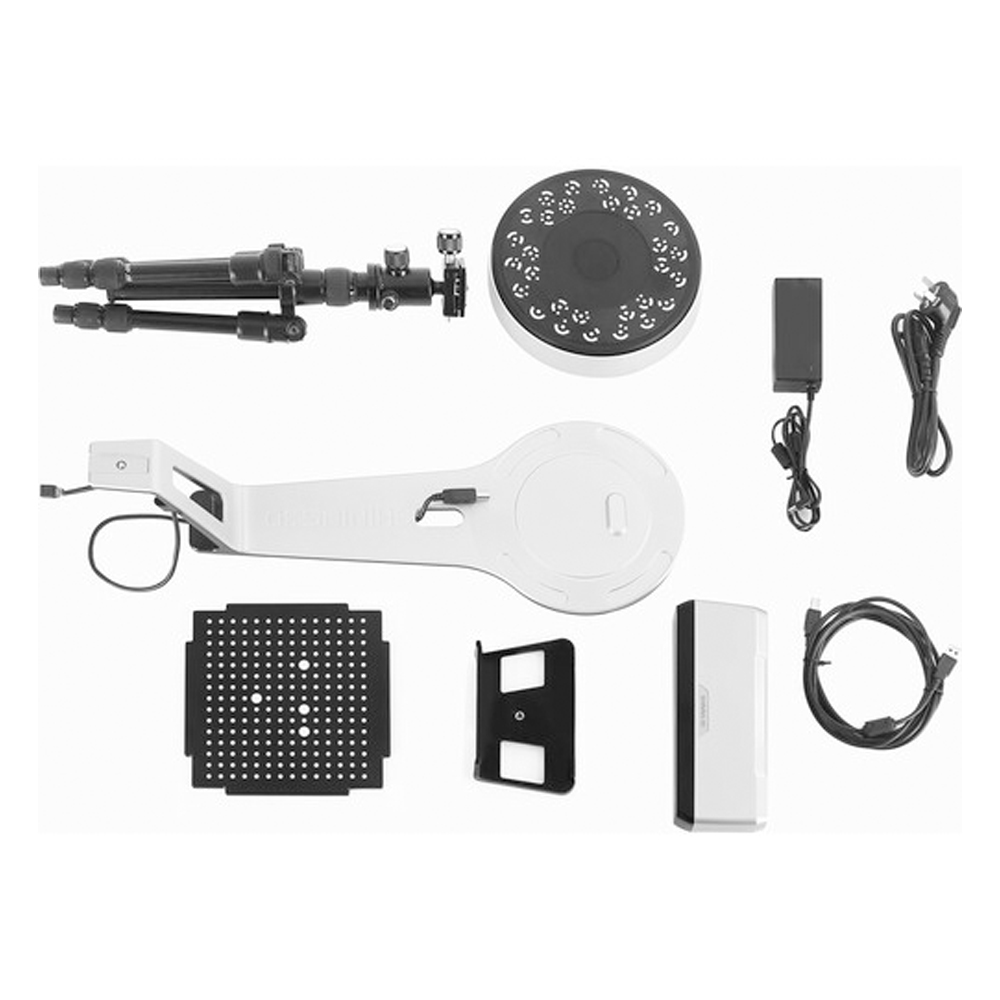

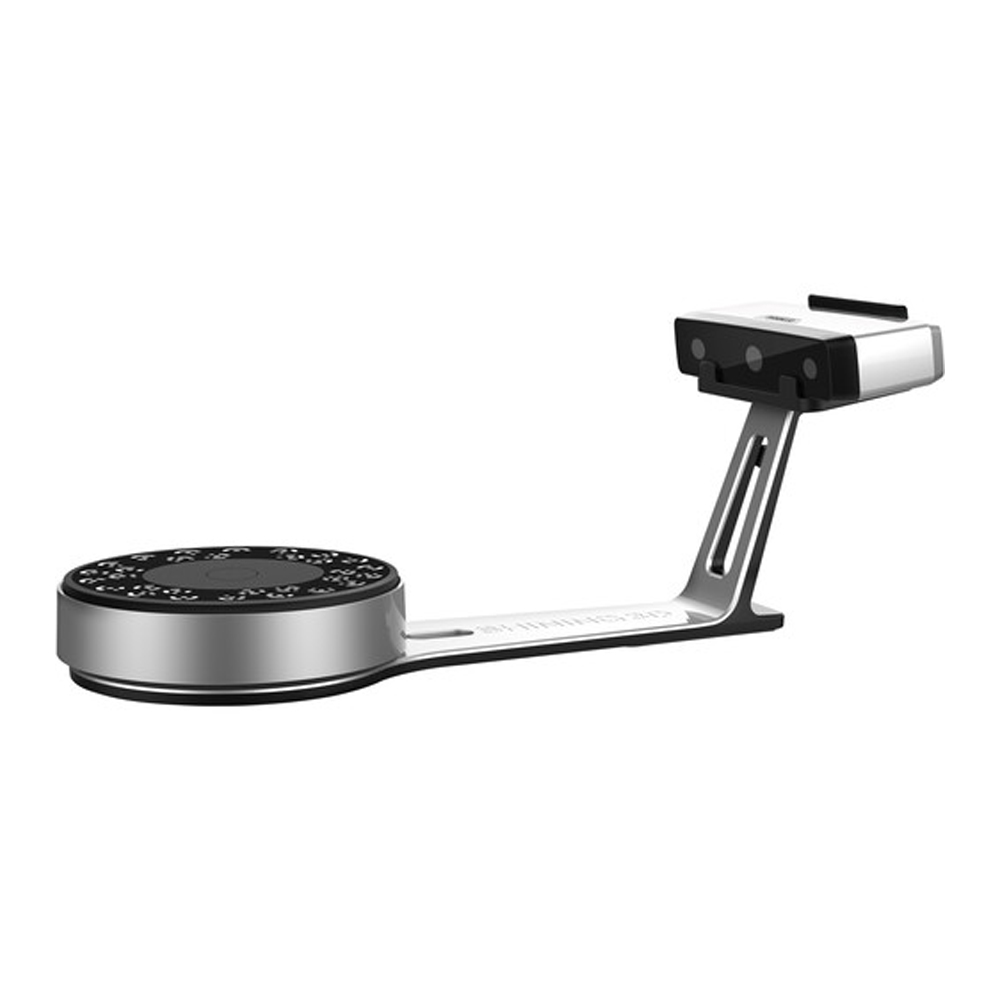

Comprised of a removable scanner with white light LED technology and a turntable, scan items as small as 7.9 x 7.9 x 7.9″ and as large as 27.5 x 27.5 x 27.5″. Built-in texture capture ensures each model is digitally recreated with fine details, making reproduction precise with 0.05mm accuracy. You get single scan and turntable scan modes, which allow you to take single shots from multiple angles or have a full 45-second rotation to capture all angles. Automatic calibration reduces your setup time, and if you wish to adjust your scanning distance, you can pair the scanner with an optional tripod.

Extensive Scanning

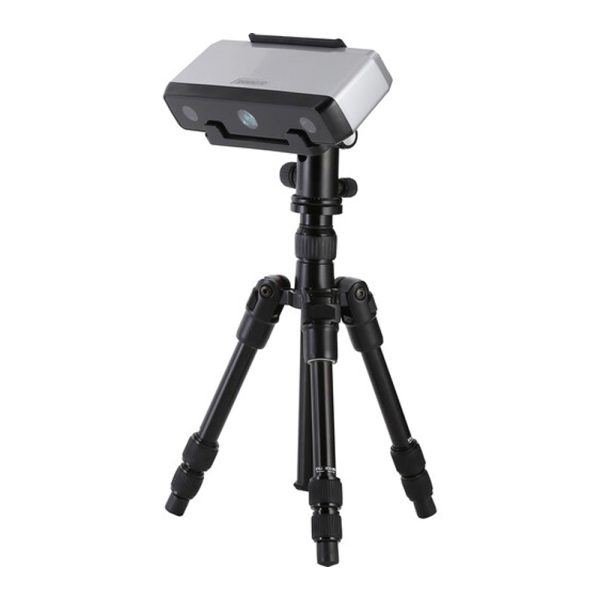

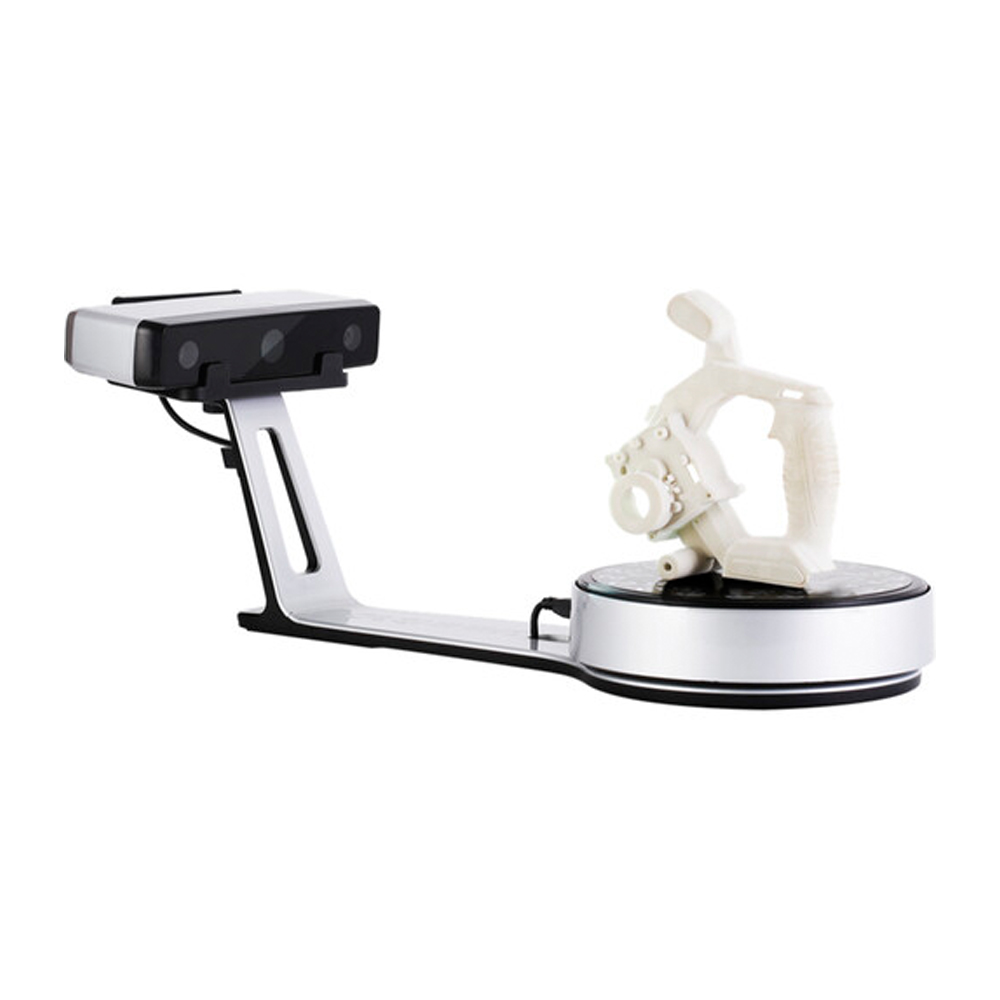

Depending on the size of the object, scanning can be carried out using a turntable for automatic scanning or a tripod for manual scanning.

Coded Targets & Markers

The EinScan includes turntable-coded targets and markers to help with calibration and ensure optimal scanning conditions.

Quick Scanning Capable

The EinScan-SP V2 gives you one-click scanning, automatic calibration with no rigid setup required, a 1-second single scan, and a 45-second 360° scan under auto scan mode.

3D Printer Compatible

The EinScan can provide you with an open API access service so you can use your captures with multiple 3D printer brands.

Post-Processing

Software of EinScan-SP V2 has the functions of filling holes, smoothing, and sharpening, and can also readjust the data coordinates in the post-processing process to provide more accurate 3D data for subsequent applications.
