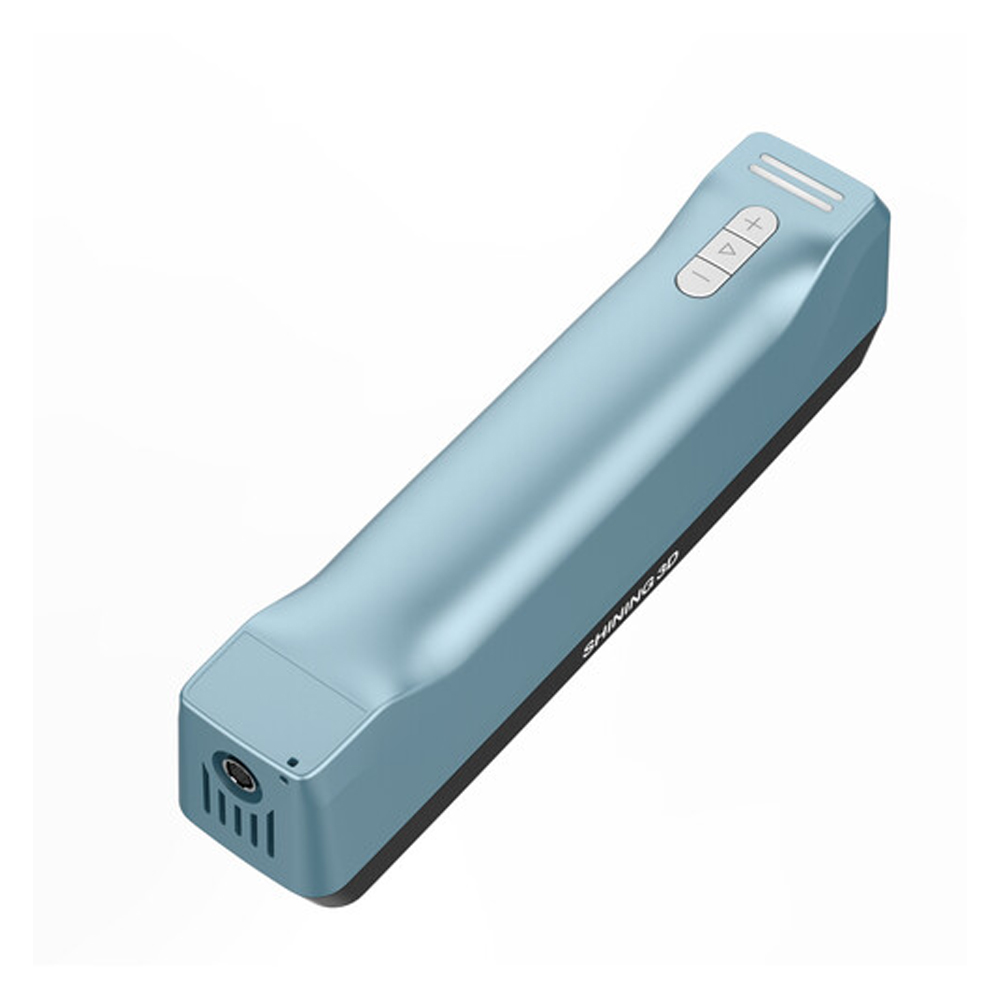

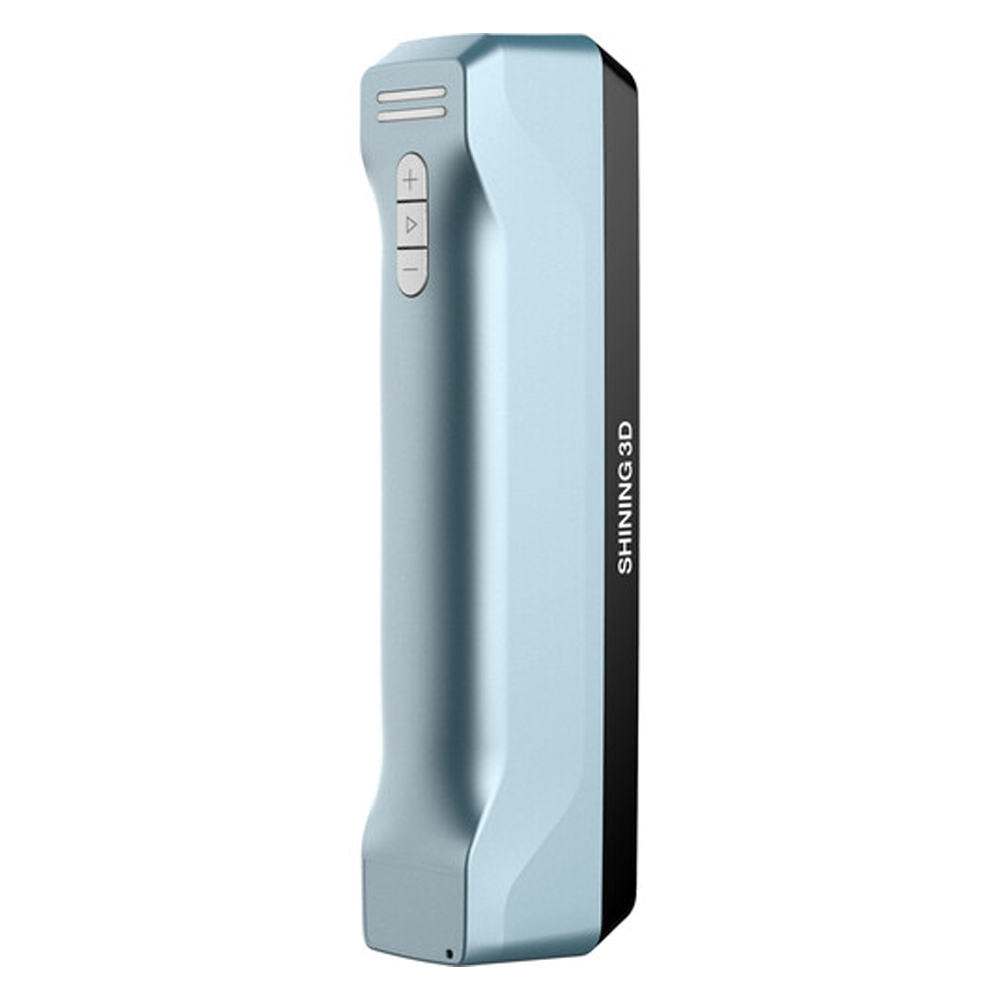

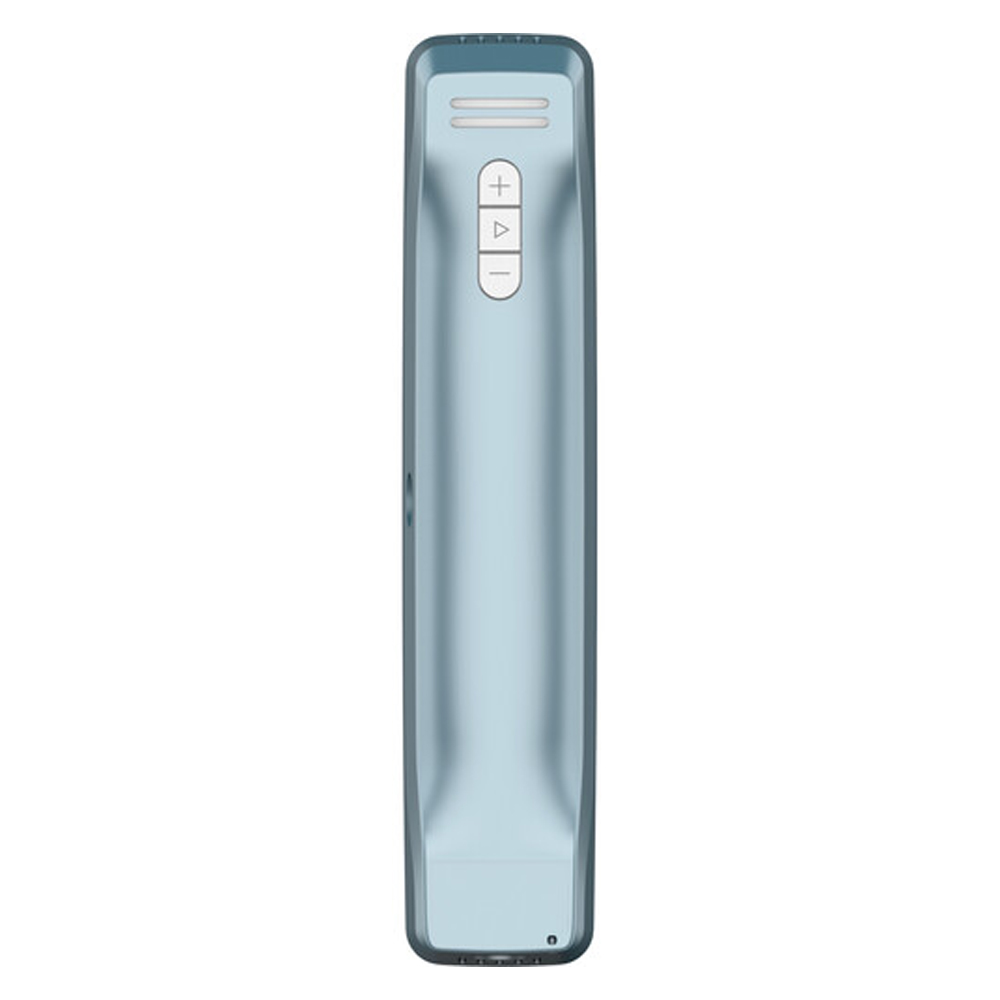

Einstar Handheld 3D Scanner

Designed for archiving, designing, and even 3D printing, the Einstar Handheld 3D Scanner offers creative users a lightweight and compact freehand scanner that can easily capture real-world items for digital recreation.

Key Features
  • Structured Light Scan Mode
  • RGB Color Camera Capture
  • 0.1 to 3mm Point Distance
  • 400mm Optimal Working Distance
  • 160 to 1400mm Depth of Field
  • Up to 14 FPS Scan Speed
  • Multiple Alignment Modes
  • Infrared VCSEL Structured Light Source
  • Texture & Outdoor Scanning
  • USB 2.0 Interface

Einstar Handheld 3D Scanner

Designed for archiving, designing, and even 3D printing, the Einstar Handheld 3D Scanner offers creative users a lightweight and compact freehand scanner that can easily capture real-world items for digital recreation.

Key Features

  • Structured Light Scan Mode
  • RGB Colour Camera Capture
  • 0.1 to 3mm Point Distance
  • 400mm Optimal Working Distance
  • 160 to 1400mm Depth of Field
  • Up to 14 FPS Scan Speed
  • Multiple Alignment Modes
  • Infrared VCSEL Structured Light Source
  • Texture & Outdoor Scanning
  • USB 2.0 Interface

With the Einstar Handheld 3D Scanner, you can easily collect high-density and complex data with a point distance of just 0.1mm, capturing fine details. Structured light scan mode, built-in RGB colour camera, and infrared VCSEL structured light source all work together to pick up patterns and pigments, making the Einstar viable for indoor and outdoor scanning. Ensure every element is captured with an enhanced effective working distance and depth of field up to 1400mm.

A scan speed of 980,000 points per second up to 14 frames per Second (FPS) reduces the number of passes you need to make to gather sufficient data. The Einstar also includes multiple alignment modes, including Feature, Hybrid, and Texture Alignments, along with Global Marker operation. A single USB 2.0 connection to your system enables easy scanning, getting you set up quickly without the need for multiple cables or power adapters.

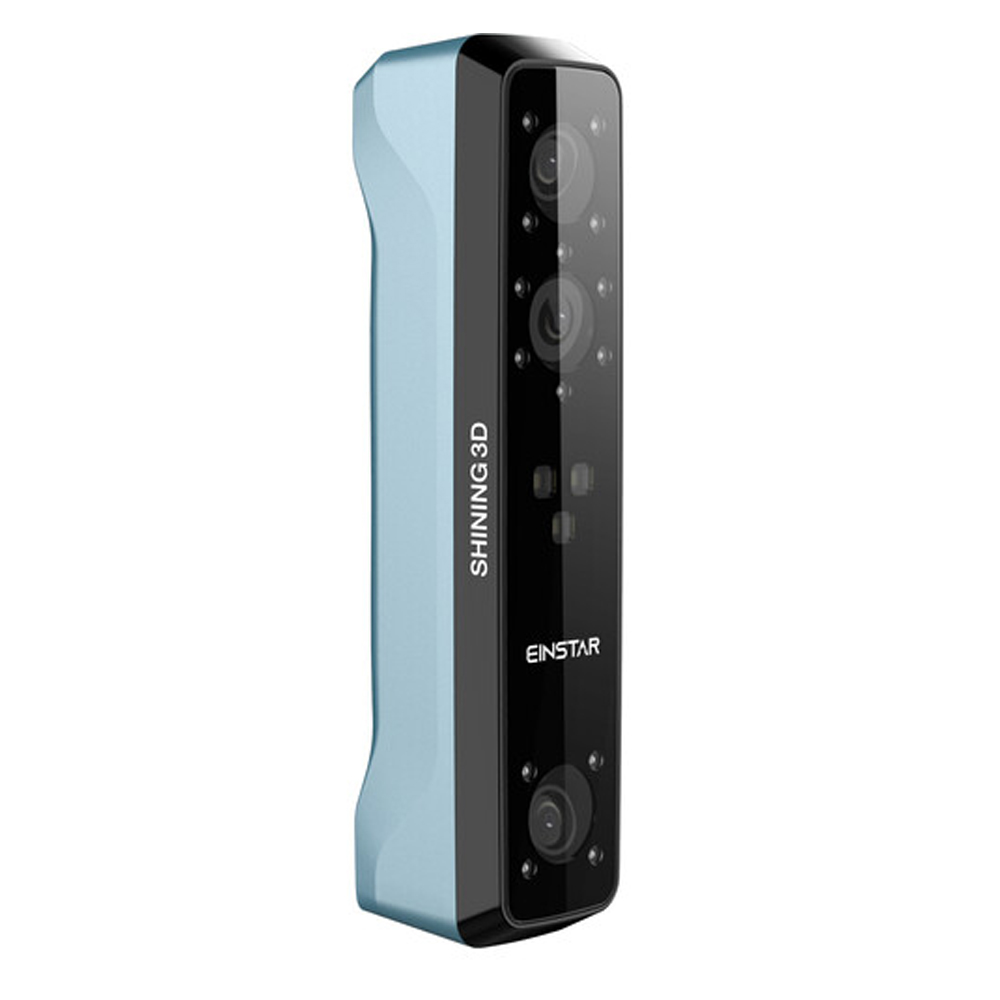

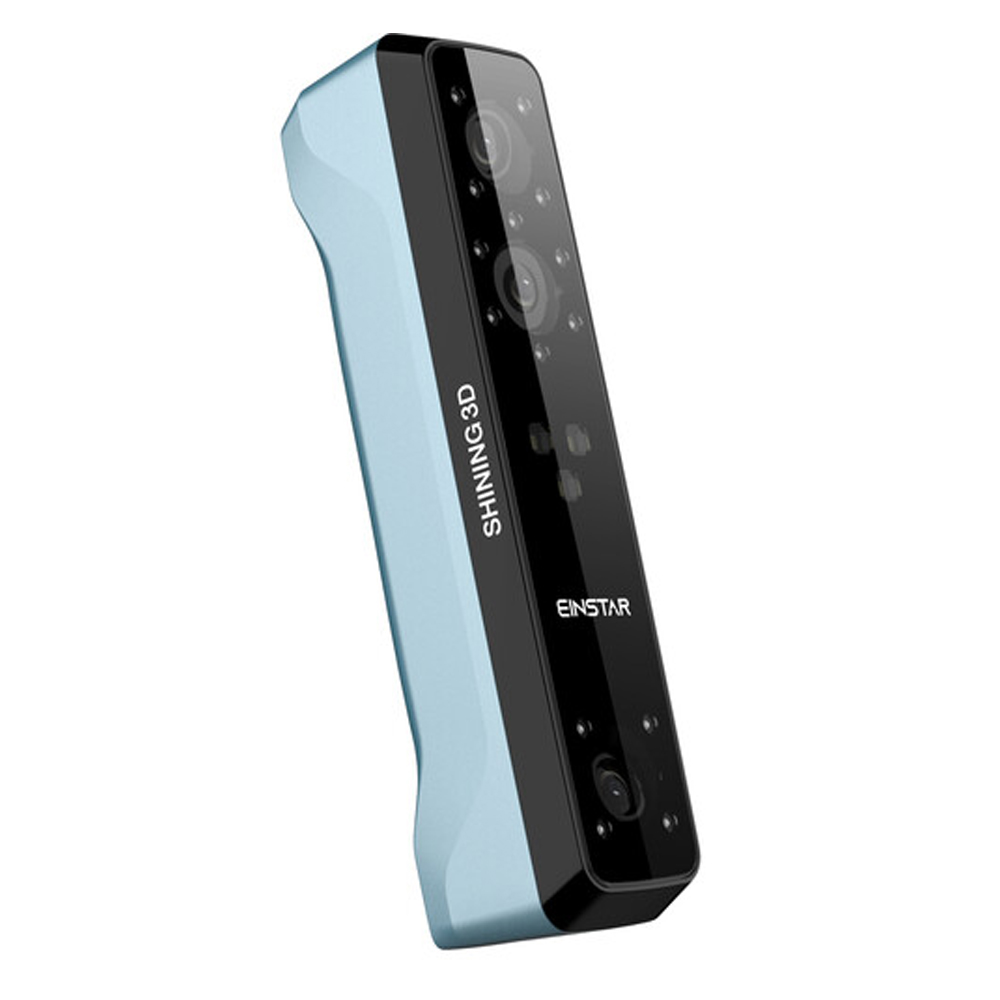

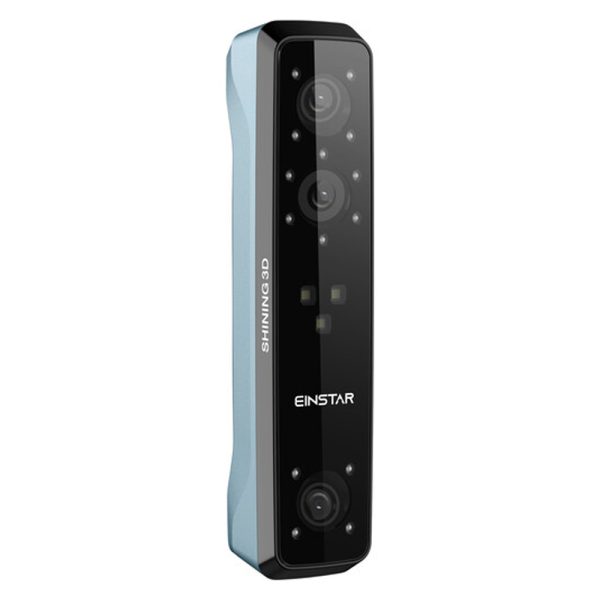

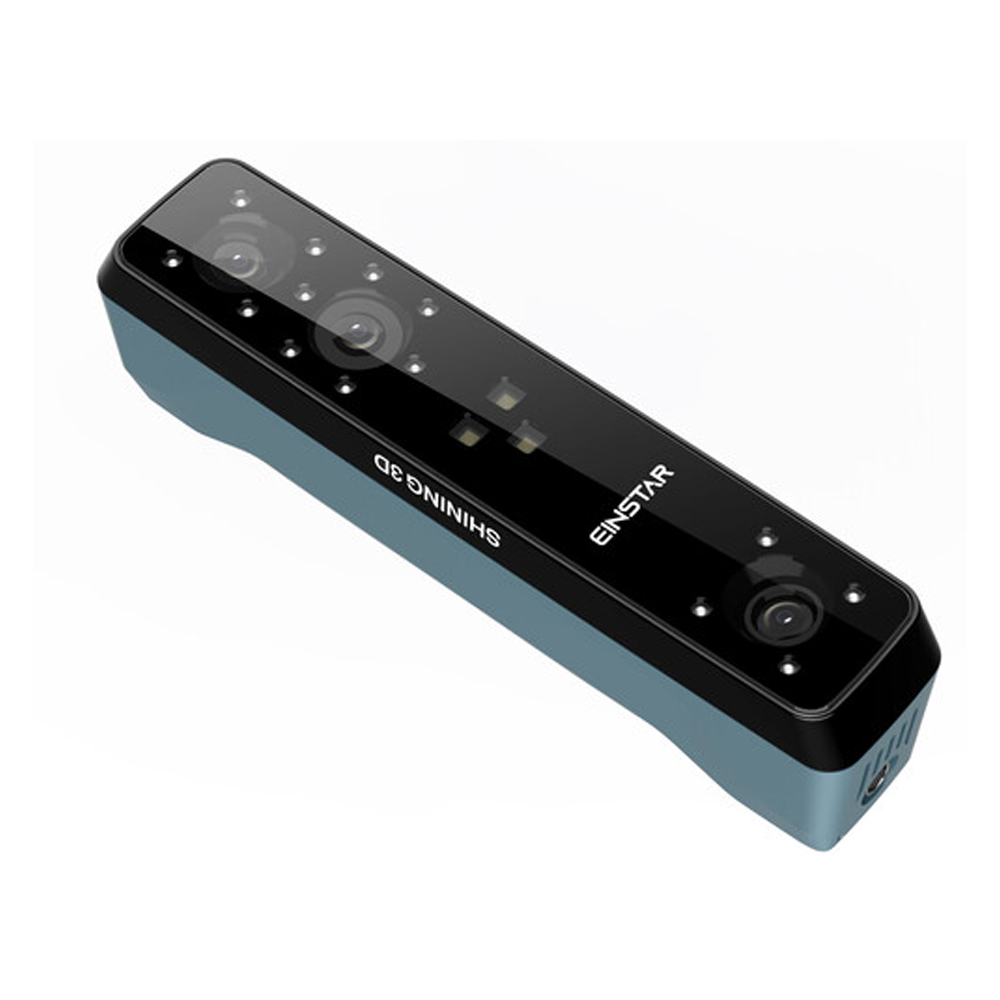

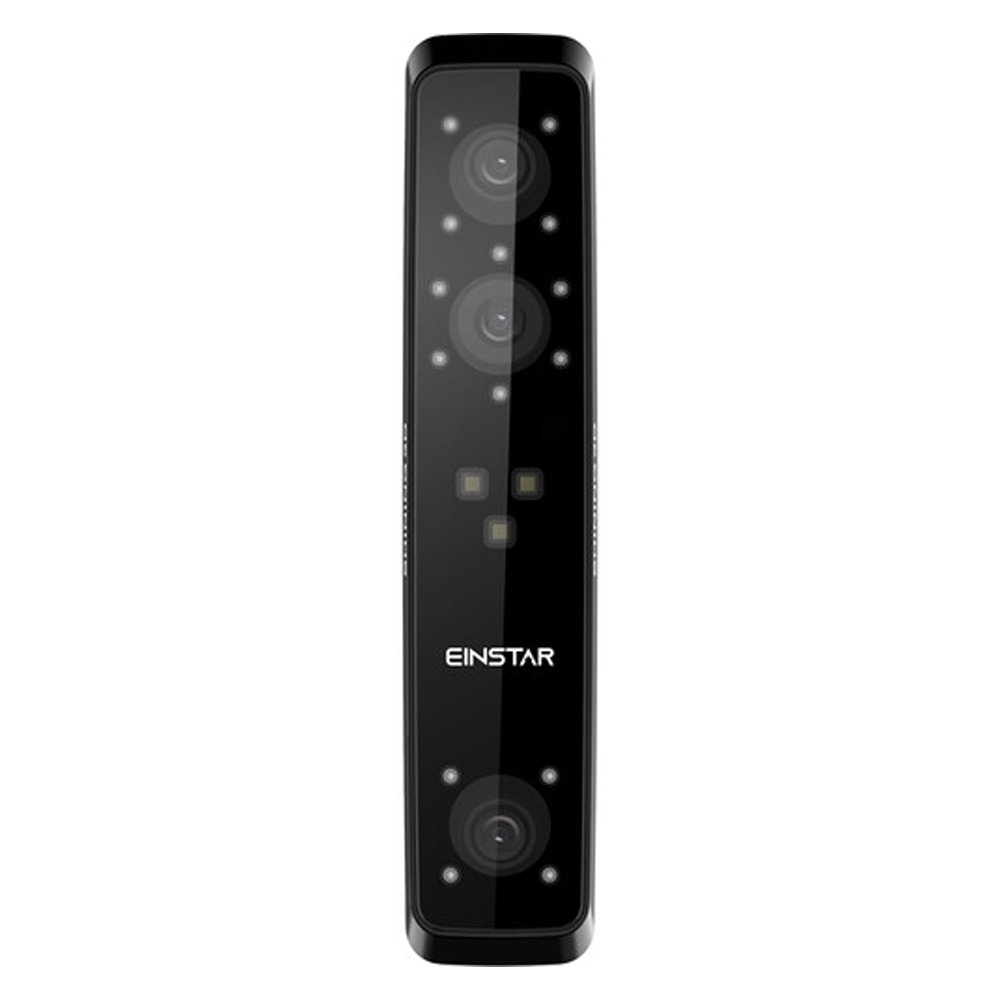

Internal Scanning Components
Equipped with three Infrared VCSEL Projectors, two Stereo Depth Cameras and one RGB Camera, Einstar can capture clear scan data and generate stable images of items found indoors and outdoors.
Detailed Capturing
Detail-oriented enhancement technology optimises the point cloud for complete data acquisition. Red, yellow, and green highlights tell you when data is insufficient, incomplete, and adequate, respectively.
Streamlined Experience
Smooth and fast scanning enables you to capture all the fine details of your model. Smart tracking, automatic alignment, and intelligent algorithms all work together to provide a streamlined user experience without compromising performance or detail. A single cable connects to your system and provides the Einstar with data transmission as well as power.
Designed for Safety
You can turn on the Hair Mode to get sufficient hair data for human scanning. It also removes projector lighting during the process, making it comfortable and safe for the eyes.
