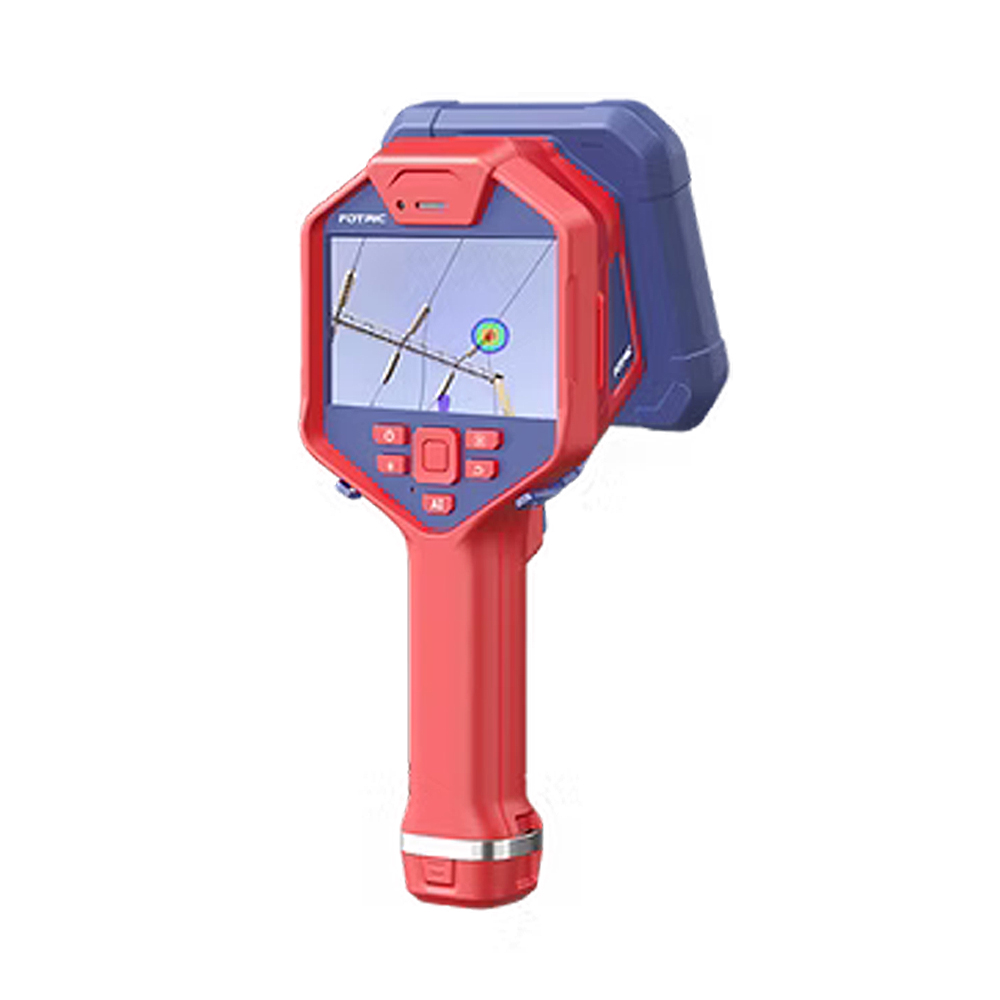

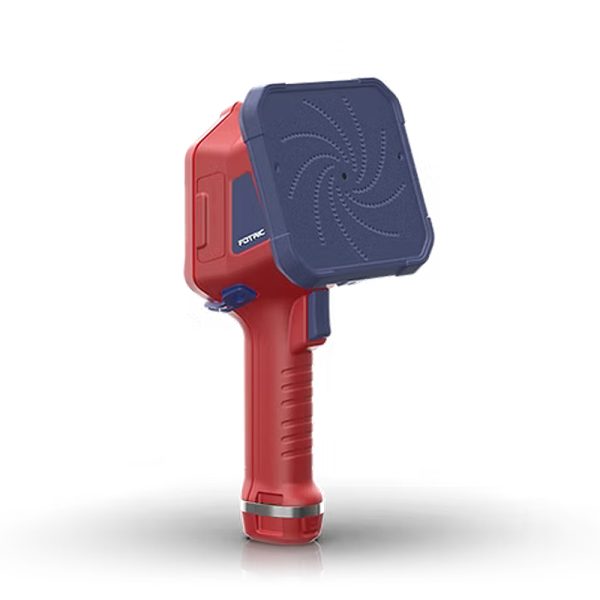

Fotric H4 High-Performance Acoustic Camera

FOTRIC H4 High-Performance Acoustic Camera

Introducing the FOTRIC H4 High-Performance Acoustic Imaging Camera, our latest innovation in industrial inspection. This cutting-edge tool combines leak evaluation and partial discharge detection into one powerful device.

• 162 MEMS – Digital Microphone
• LED Flash Lamp – Flash Light Mode
• Applications – Leakage Cost Evaluation/Partial Discharge Diagnosis
• On-device Analysis – Identifies Discharge Types Directly

Equipped with up to 162 MEMS digital microphones, the H4 offers unparalleled sensitivity to detect even the faintest acoustic signals. Its Acoustic Focus Mode ensures precise targeting and accurate diagnostics, making it essential for maintaining equipment integrity and preventing costly failures.

Elevate your inspection capabilities with the H4, where exceptional performance meets advanced technology.

Applications

• Electric Utilities
• Maintenance & Reliability
• Oil & Gas
• Manufacturing
• R&D
• Building Inspection
• Metallurgy
• Product Insights

Exceptional Sensitivity

• up to 162 MEMS Digital Microphone

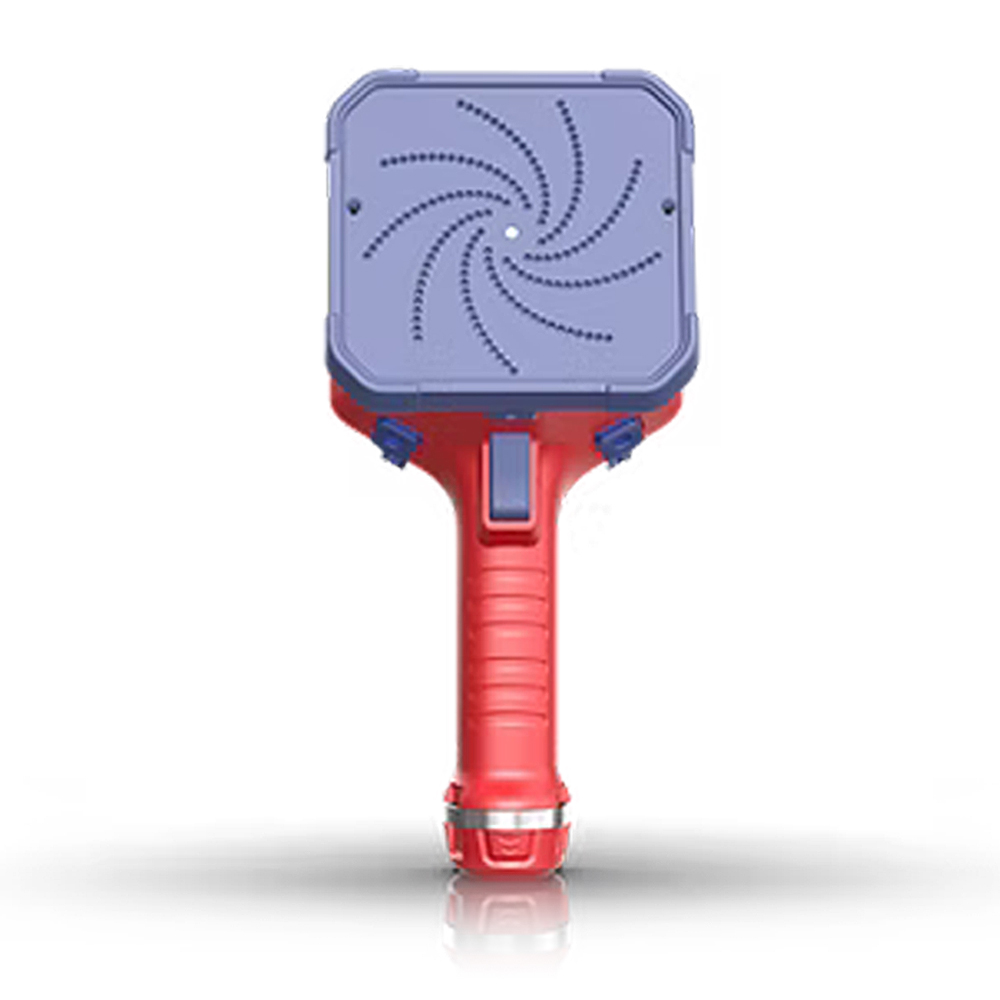

• 6.6-inch Spiral Array Layout
• 66°×52° Acoustic Image Field of View (FOV)
• 13 Megapixels Industrial Digital Camera

FOTRIC H series boasts exceptional sensitivity thanks to its array of up to 162 MEMS (Micro-Electro-Mechanical Systems) digital microphones. This advanced technology ensures the camera detects even the faintest acoustic signals, identifying small gas leaks or minor electrical discharges that could otherwise go unnoticed until they escalate into major issues.

Acoustic Focus Mode – Precision Targeting for Enhanced Diagnostics
A standout feature of the FOTRIC H series is its Acoustic Focus Mode. This mode filters out background noise and interference, allowing the camera to zero in on a specific area of interest.

With this precision targeting, inspectors can accurately pinpoint the source of issues, whether a subtle gas leak or a localised partial discharge, without being distracted by surrounding noise.

Dual-Function Excellence – Leak Evaluation and Partial Discharge Detection

The FOTRIC H series excels with its dual capability to evaluate gas leaks and detect partial discharges. This unique combination makes it an essential tool for professionals in industries where equipment reliability is critical. By integrating these functions, the H-Series helps users manage assets more efficiently, reducing downtime and preventing costly failures.

Gas Leakage Evaluation

The H series Leak Evaluation mode does more than just detect leaks—it quantifies their financial impact on compressed air systems, gas pipelines, and other pressurised systems. By calculating the cost of leaks, users can prioritise repairs based on potential savings, making maintenance decisions more strategic and impactful.

Partial Discharge Applications

The H series takes Partial Discharge (PD) detection to the next level with automated diagnosis, accurately identifying the type of discharge occurring. This feature is vital for electrical systems like transformers and switchgear, where different discharge types signal varying levels of risk.
