Fotric Ti5 Advanced SharpView Thermal Camera

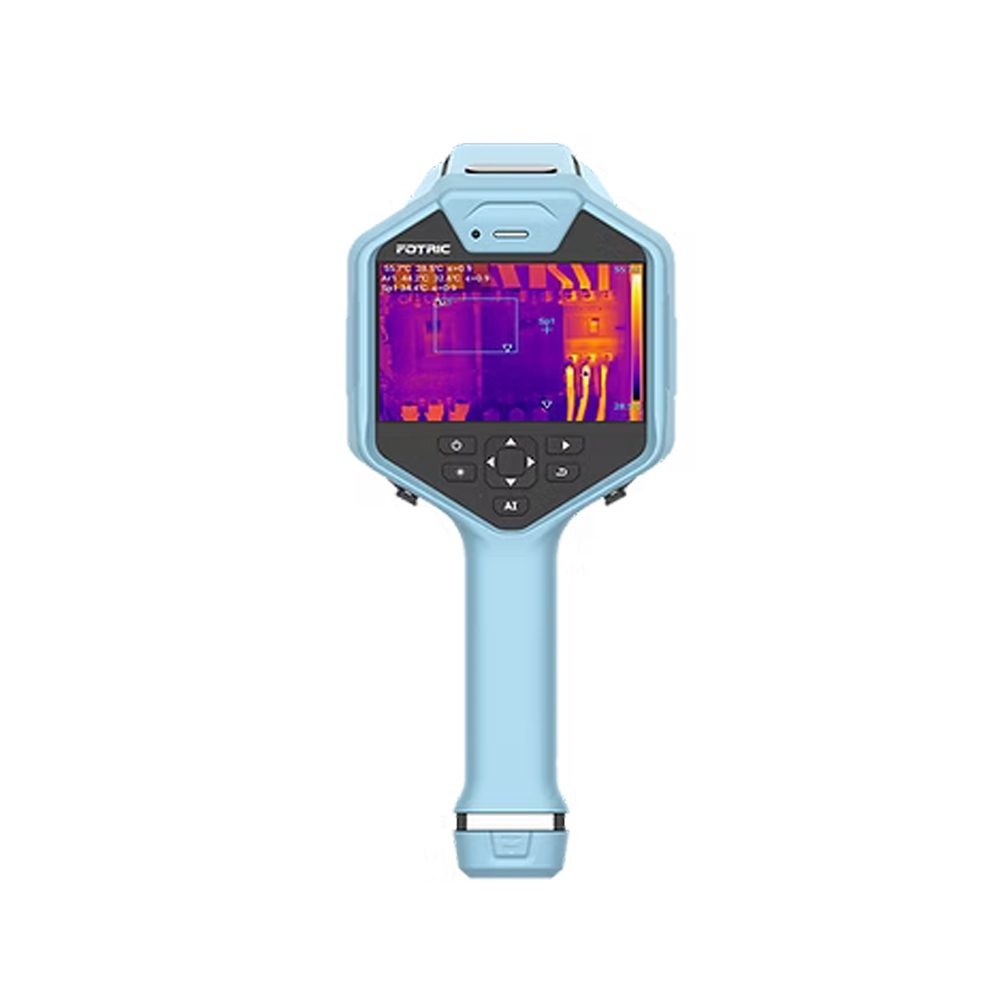

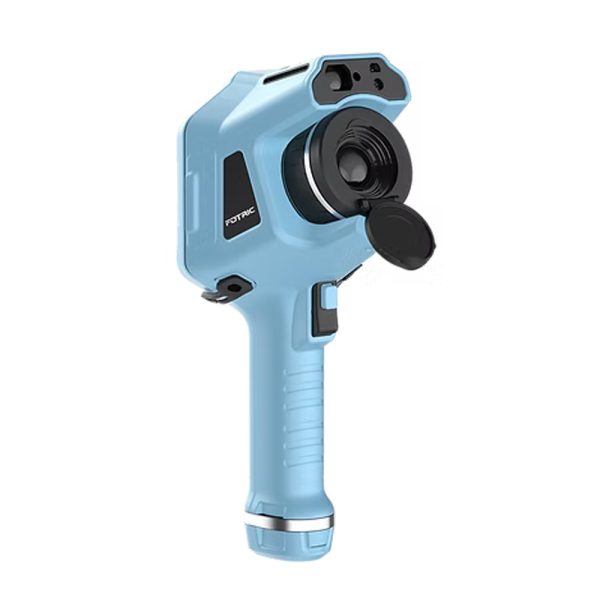

FOTRIC Ti5 Advanced SharpView Thermal Camera

With Manual Focus for precise measurements at any distance and a robust build featuring 640×480 IR resolution and 40 mK Thermal Sensitivity, the FOTRIC Ti5 Advanced SharpView is designed to be your gateway to professional thermography.

up to 640*480 IR Resolution
TurboFocus® System & Manual Focus
Laser-assisted Area/Length Measurement
5-Inch Touchscreen Display

Its user-friendly Android interface ensures an intuitive experience, while the choice of 25-degree lens options caters to diverse industries, from building inspections to HVAC and electric distribution.

Plus, inspection data can be easily imported into the AnalzyIR software via WiFi, and reports can be generated with a single click.

FOTRIC Ti5 Advanced SharpView Thermal Camera

up to 640*480 IR Resolution
TurboFocus® System & Manual Focus
Laser-assisted Area/Length Measurement
5-Inch Touchscreen Display

Plus, inspection data can be easily imported into the AnalzyIR software via WiFi, and reports can be generated with a single click.

FOTRIC Ti series Thermal Cameras

Applications

Electric Utilities
Maintenance & Reliability
Oil & Gas
Manufacturing
R&D
Building Inspection
Metallurgy
Product Insights

Impeccable Imaging

T-TWB® Histogram Temperature Representation – Automatically adjusts the palette ribbon based on the pixel distribution across temperature ranges, offering a clearer view of temperature distribution for more efficient inspections.

IREdge® Contour Detail Enhancement

Enhances object contours and edges to improve visibility and differentiation from the background.

Robust and Versatile

TurboFocus® Intelligent Focusing System – Combines thermal contrast AF, laser-assisted AF, continuous AF, touch AF, and manual focus to deliver fast, accurate, and quiet focusing. Seamlessly aligns thermal and digital images for precise analysis.

Robust Design

2-meter drop impact resistance makes a truly enduring equipment; With an IP54 protection rating, this device is built for demanding industrial environments.

Powerful Analysis, Swift Decision-making

Laser-assisted Area/Length Measurement – Equipped with a high-precision laser rangefinder, this system measures distances up to 50 meters with an accuracy of d*0.01% ± 2mm. It automatically calculates areas and lengths within the thermal image, ideal for building inspections and thermal loss assessments of large equipment.

On-device Analysis

Easily annotate images during inspections with the bookmark feature. Bookmarked images can be retrieved anytime for onboard analysis and streamlining your workflow.

Professional Analysis Software

FOTRIC AnalyzIR software enables detailed data analysis, batch processing of inspection results, and instant report generation, enhancing the efficiency and professionalism of inspection workflows.
