ISI-SYS DAQ BOXES – DATA ACQUISITION

DAQ BOXES DATA ACQUISITION

The isi-sys DAQ devices are set up for operation with the Vic software for Digital Image Correlation (DIC) by Correlated Solutions and function as an integral part of isi-sys turn-key DIC systems. They mainly serve for triggering the cameras (hardware trigger) and simultaneously recording analogue data as well as for delivering analogue real-time output generated by the Vic-Gauge software.

There are three DAQ types with different performance and features:

DAQ-STD-8D
Only the DAQ-STD-8D Synchronisation / Trigger Device can be used for synchronisation of the cameras via a periodic signal (supported by the Fulcrum Module of Vic-Snap or the isi-sys synchronisation software module / isi-Studio

DAQ-T8D-16
Isi-sys also offers a 16-bit device — the DAQ-T8D-16. Both devices have +/-10V output channels.

DAQ-T4D-12
The DAQ-T4D-12 is a 12-bit device with a 5V analogue output.

DAQ BOXES DATA ACQUISITION

The isi-sys DAQ devices are set up for operation with the Vic software for Digital Image Correlation (DIC) by Correlated Solutions and function as an integral part of isi-sys turn-key DIC systems. They mainly serve for triggering the cameras (hardware trigger) and simultaneously recording analogue data as well as for delivering analogue real-time output generated by the Vic-Gauge software.

There are three DAQ BOXES DATA ACQUISITION types with different performance and features:

DAQ-STD-8D
Only the DAQ-STD-8D Synchronisation / Trigger Device can be used for synchronisation of the cameras via a periodic signal (supported by the Fulcrum Module of Vic-Snap or the isi-sys synchronisation software module / isi-Studio

DAQ-T8D-16
Isi-sys also offers a 16-bit device — the DAQ-T8D-16. Both devices have +/-10V output channels.

DAQ-T4D-12

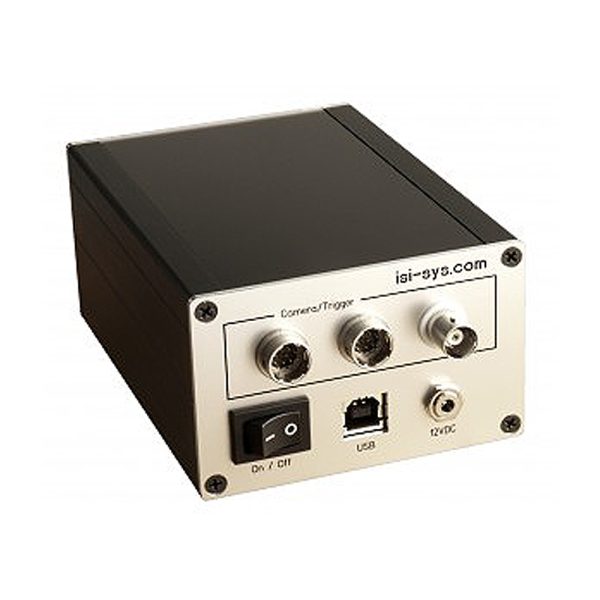

The DAQ-T4D-12 is a 12-bit device with a 5V analogue output. Hardware triggering and the power supply for the cameras are transmitted via the 12-pin Hirose connectors on the DAQ device. Two of these connectors are available for connecting up to two cameras. Isi-sys also offers Y‑cables for operating 4 cameras (two stereo systems) or more. It is also possible to operate more than two cameras with one DAQ device. We will be happy to advise you.

Connection to a computer is via a USB cable (type A <-> type B connector).

isi-sys DAQ devices are available with either differential or non-differential analogue inputs. The analogue input connectors are BNC type, the range is +/-10V.

Besides analogue inputs, all isi-sys DAQ devices can also be equipped with analogue outputs (BNC type connector), which differ in voltage range depending on the DAQ type. Digital IO connectors (BNC type) are available as well.
