ISI-SYS VIC-GAUGE 2D/3D

VIC-GAUGE 2D/3D

Vic-Gauge 2D/3D – Vic-Gauge uses our optimised 2‑D and 3‑D correlation algorithms to provide real-time displacement and strain data for mechanical testing. Think of this tool as a set of virtual strain gauges: Data can be retrieved for multiple points and plotted live against analogue load inputs. Results are saved for every analysed point, and full images may be saved for full-field analysis in Vic-2D or Vic-3D.

General Features:

  • Real-time measurement of strain and displacement at one or many discrete points
  • Measure strain data at points, or use virtual extensometers to connect locations
  • Analogue value inputs for real-time load vs. strain reporting
  • Dual BNC analogue outputs for non-contacting strain or displacement control of test frames, forming machines, etc.
  • Each gauge measures
    • X, Y, & Z coordinates
    • X, Y, & Z displacement
  • Full strain and shear tensor
  • First and second principal strains

The full test setup can be saved as a project for fast, consistent, repeated tests.

VIC-GAUGE 2D/3D

Vic-Gauge 2D/3D – Vic-Gauge uses our optimised 2‑D and 3‑D correlation algorithms to provide real-time displacement and strain data for mechanical testing. Think of this tool as a set of virtual strain gauges: Data can be retrieved for multiple points and plotted live against analogue load inputs. Results are saved for every analysed point, and full images may be saved for full-field analysis in Vic-2D or Vic-3D.

VIC Gauge Measurement System Feature Overview:

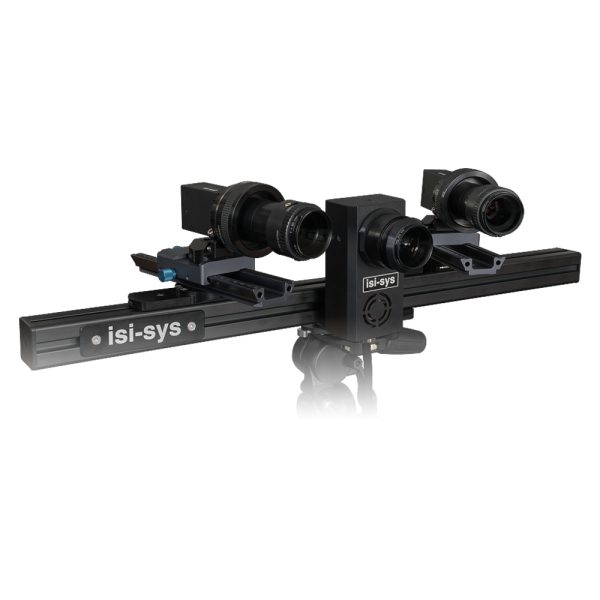

The Vic-Gauge 3D system is offered as a turnkey strain measurement solution that doubles as a video extensometer and virtual strain gauge. The system performs a three-dimensional digital image correlation (DIC) analysis on a pair of images in real-time, processes the data, and then outputs a control signal. The measurements are displayed graphically, but also as virtual gauge values. The system utilises the same robust and precise algorithms found in the Vic-3D system, and the same ease of use.

General Features:

  • Real-time measurement of strain and displacement at one or many discrete points
  • Measure strain data at points, or use virtual extensometers to connect locations
  • Analogue value inputs for real-time load vs. strain reporting
  • Dual BNC analogue outputs for non-contacting strain or displacement control of test frames, forming machines, etc.
  • Each gauge measures
    • X, Y, & Z coordinates
    • X, Y, & Z displacement
  • Full strain and shear tensor
  • First and second principal strains

The full test setup can be saved as a project for fast, consistent, repeated tests
