Koehler Instrument Ashing Furnace determines ash in distillate and residual fuels, gas turbine fuels, crude oils, lubricating oils, waxes, and other petroleum products.

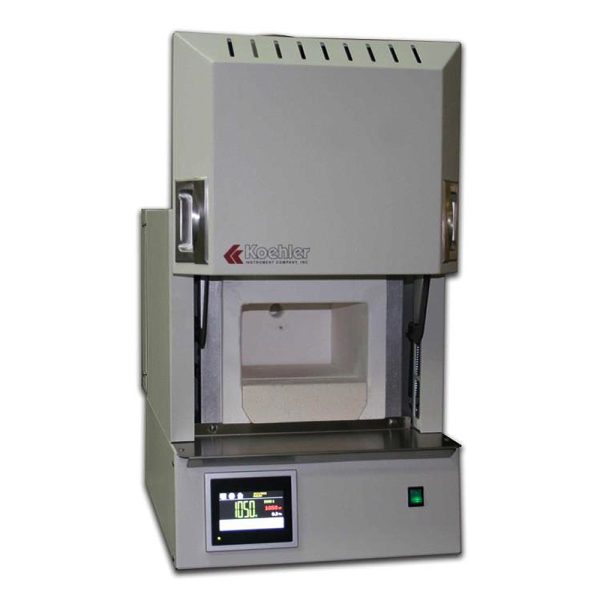

Programmable Ashing Furnaces with Lift Gate Door
Features
- 6 Complete Air Exchanges per Minute
- Maximum Temperature of 1200°C
- Touch Screen Control Panel
- Double-walled housing for low external temperatures and stability
| Koehler Instrument Ashing Furnace – Specifications | |
| Conforms to the Specifications of | ASTM D482, D874, D1026, D3174, D4422, D5184 |
| Temperature Range | Ambient to 1200°C |
| Temperature Accuracy | ± 1°C |
| Temperature Uniformity | ± 3°C |
| Temperature Resolution | ± 0.1°C |
| Oven Volume | 0.17 cu. ft. model: 5 L 0.52 cu. ft. model: 15 L 1.41 cu. ft. model: 40 L |
| Chamber Internal Dimensions (wxdxh,in.(cm)) | 0.17 cu. ft. model: 8x7x5 (20.32×17.78×12.70) 0.52 cu. ft. model: 9x13x7 (22.86×33.02×17.78) 1.41 cu. ft. model: 13x19x10 (33.02×48.26×25.40) |
| Power | 0.17 cu. ft. (5L) model: 2700 W 0.52 cu. ft. (15L) model: 5500 W 1.41 cu. ft. (40L) model: 11000 W |
| Electrical Requirements | 115V, 60Hz, Single Phase 230V, 50/60Hz, Single Phase |
| Catalog Number | Capacity | Voltage | Dimensions WxDxH,in.(cm) | Net Weight |
| K24410 | 0.17 cu.ft. (5L) | 115V 60Hz | 18x26x22 (45.7x66x55.8) | 88 lb (40 kg) |
| K24419 | 0.17 cu.ft. (5L) | 230V 50/60Hz | 18x26x22 (45.7x66x55.8) | 88 lb (40 kg) |
| K24420 | 0.52 cu.ft. (15L) | 115V 60Hz | 20x29x24 (50.8×73.7×61) | 132 lb (60 kg) |
| K24429 | 0.52 cu.ft. (15L) | 230V 50/60Hz | 20x29x24 (50.8×73.7×61) | 132 lb (60 kg) |
| K24429-18L | 0.64 cu.ft. (15L) | 230V 50/60Hz | 20x29x24 (50.8×73.7×61) | 132 lb (60 kg) |
| K24430 | 1.41 cu.ft. (15L) | 115V 60Hz | 24x34x29 (61×86.4×73.7) | 176 lb (80 kg) |
| K24439 * | 1.41 cu.ft. (15L) | 230V 50/60Hz | 24x34x29 (61×86.4×73.7) | 176 lb (80 kg) |
| Catalog Number | Description |
| K24410-1 | Steel Collecting Pan, 5L |
| K24420-1 | Steel Collecting Pan, 15L |
| K24430-1 | Steel Collecting Pan, 40L |
| K24300-1 | Evaporation Crucible, Porcelain, 100mL |
| K24300-2 | Crucible Tong, 300mm |
| K24300-3 | Gloves, 900°C Max |
| K24300-8 | Evaporation Crucible, Porcelain, 30mL, pk/6 |
| K24300-9 | Porcelain Lid, for 30mL Crucible, pk/6 |
