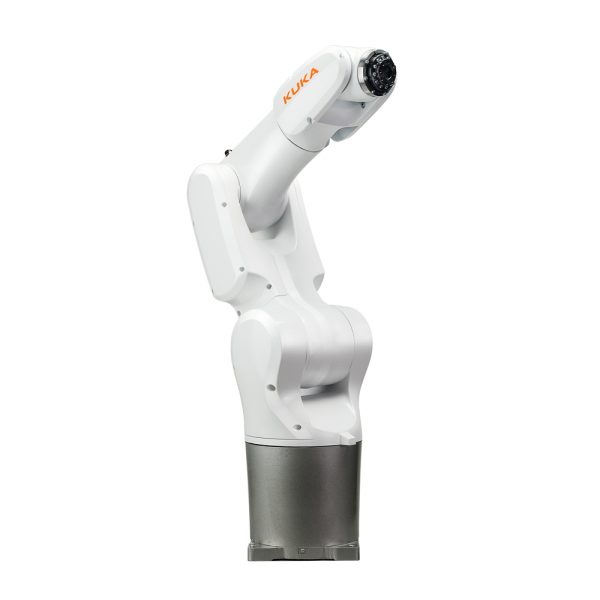

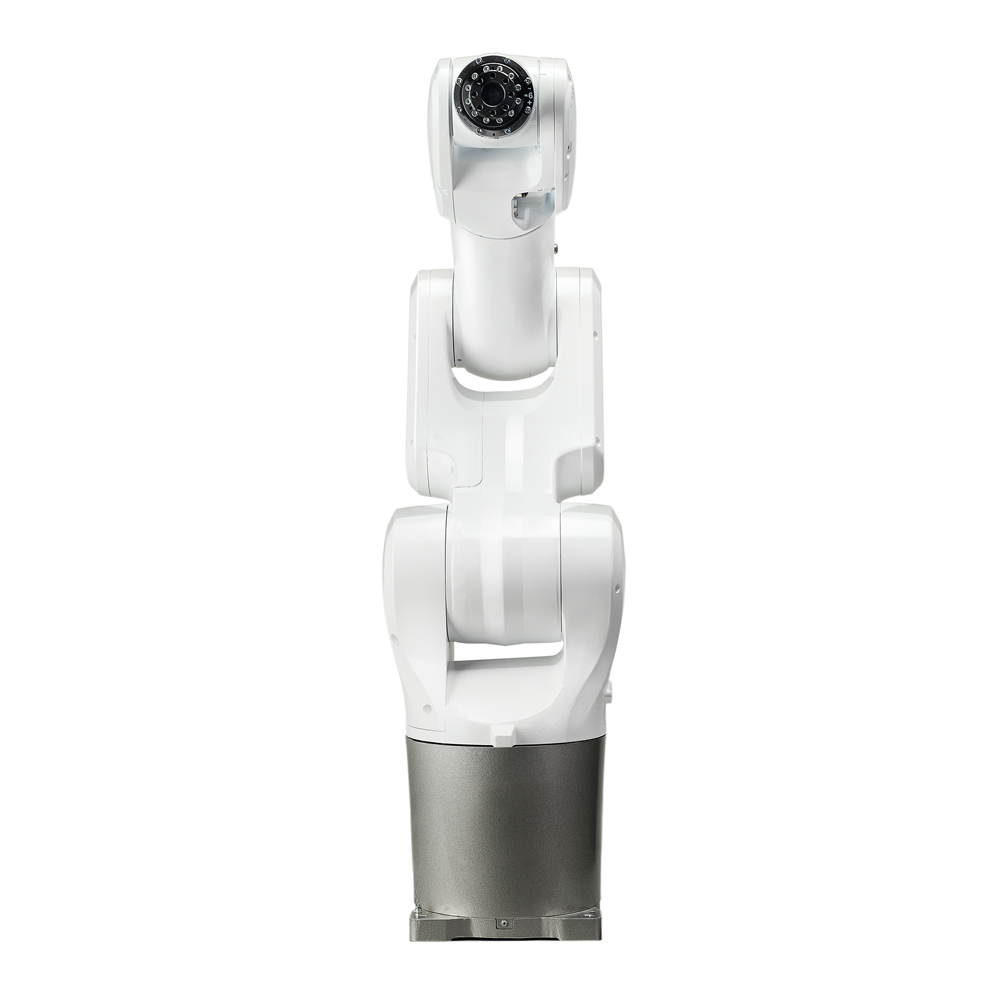

KUKA – KR4 AGILUS-R600

KUKA KR4 AGILUS COBOT SYSTEM

High performance in any installation position and in a small footprint – the KR 4 AGILUS impresses with its compact design and long reach, and precision.

The KR 4 AGILUS combines ultra-compact, interference-free design with optimum performance: with a payload capacity of 4 kilograms and a reach of 600 mm, the compact robot performs a wide variety of tasks, such as handling and assembly in the electronics industry or small automation cells. It works reliably and precisely even with the shortest cycle times.

Compact, flexible robot for various applications in the electronics industry

COBOTS

ADD TO QUOTE REQUEST LIST

Description
Reviews (0)

KUKA KR4 AGILUS COBOT SYSTEM

High performance in any installation position and in a small footprint – the KUKA KR 4 AGILUS impresses with its compact design and long reach, and precision.

Compact, flexible robot for various applications in the electronics industry

The KUKA KR4 AGILUS COBOT combines ultra-compact, interference-free design with optimum performance: with a payload capacity of 4 kilograms and a reach of 600 mm, the compact robot performs a wide variety of tasks, such as handling and assembly in the electronics industry or small automation cells. It works reliably and precisely even with the shortest cycle times.

Velocity

Cycle times up to 0,4 seconds

Precision

Repeat accuracy of 0.02 mm and improved path accuracy

Robust

Can be used in a temperature range from 0°C to 55°C, equipped in protection class IP40, and ESD-protected

Integrated energy supply

Compatible with most connections

4 x 4 compressed air
1 x M12 8 Pin (24V, 2A)
1 x M12 8 Pin Ethernet (optional)

Advantages

Maximum flexibility

Compact, interference contour-free design, flexible mounting position and various interfaces for peripheral devices

ESD protected

The robot is protected as standard against uncontrolled electrostatic charging or discharging and is thus equipped for the safe handling of sensitive electronic components.

High reliability

Particularly long service life and low service and maintenance requirements, e.g. thanks to fewer steps when replacing cables

Easy operation

Control via KRC5 micro and operation via KUKA smartPAD
