KUKA LBR MED 14-R820 COBOT - from Link Pakistan

KUKA – LBR-MED-14-R820

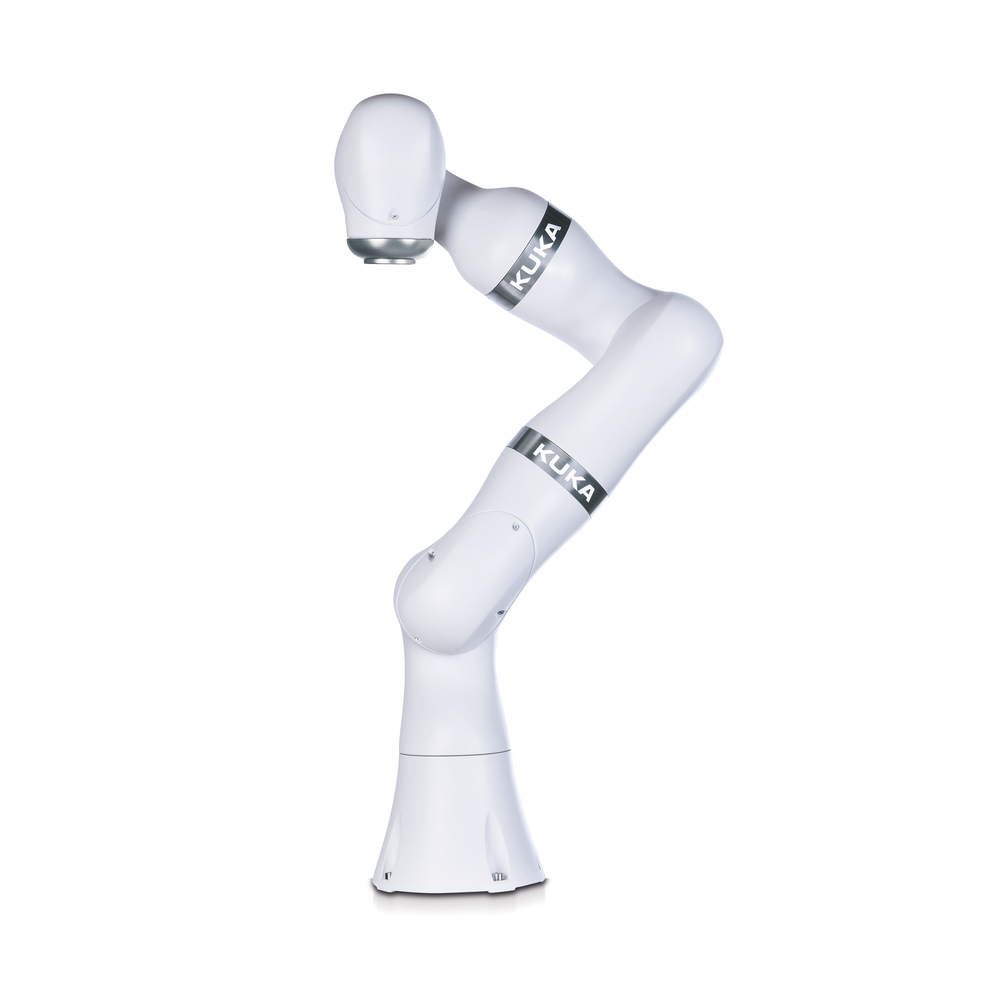

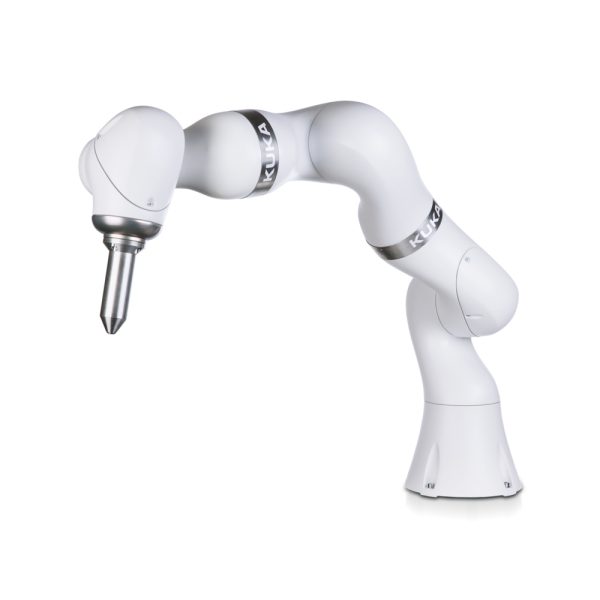

KUKA LBR MED 14-R820 MEDICAL COBOT SYSTEM

The KUKA LBR MED is a compact robot arm which has been specially designed for use in the medical sector. It has integrated force-torque sensors which allow it to be used collaboratively with human users.

Max total payload 14kg
7 DOF
Positioning accuracy ±0.15mm

LBR Med: a collaborative robot for medical applications

KUKA LBR MED 14-R820 MEDICAL COBOT SYSTEM

The KUKA LBR MED is a compact robot arm which has been specially designed for use in the medical sector. It has integrated force-torque sensors, which allow it to be used collaboratively with human users.

Max total payload 14kg
7 DOF
Positioning accuracy ±0.15mm

LBR Med: a collaborative robot for medical applications

The sensitive KUKA LBR MED 14-R820 robot has been adapted to meet specific medical requirements and is perfectly suited for a wide range of assistance systems in medical technology on account of its human-robot collaboration capability.

One-of-a-kind robotic component for integration into a medical product

From diagnostics to treatment and surgical interventions, the LBR Med stands out as a perfect assistant for diverse tasks in the field of healthcare. The sensitive seven-axis lightweight robot is flexible and easy to integrate into medical products for various medical activities. With its responsive sensors, comprehensive safety precautions, hygiene-optimised surfaces and a controller designed for direct collaboration with the human operator, it is ideally suited to applications in medical technology. Moreover, the robotic component makes it much easier and quicker for manufacturers of medical devices to develop products and also to get them approved because the LBR Med is certified following the internationally recognised CB Scheme.

Flexible connection possibilities

On account of its versatile media flange inside electrical Med, the LBR Med can be simply and flexibly integrated into various medical products. For customised medical instruments, a range of connections are available on the flange, e.g. for power supply, I/Os or Ethernet.

For assistance tasks in the healthcare sector: safe, precise and consistent

Precise

The LBR Med requires no additional devices for calibration or high-precision work. Integrated mastering sensors pave the way for an entirely autonomous calibration process. Depending on the variant, the LBR Med achieves an outstanding repeatability of ±0.1 mm to ±0.15 mm.

Flexible

Designed as a universally deployable component, the LBR Med can be seamlessly integrated into a wide range of solutions. With a variety of preconfigured interfaces, it is a versatile robot system for various applications in medical technology.

Safe

The LBR Med has an extensive safety structure. Relevant signals are evaluated on a safety-oriented basis by both hardware and software. The safety equipment includes force/torque sensor systems, single fault safety, safety interfaces and configurable safety events.

Sensitive

Based on the sensitive KUKA LBR iiwa robot that has proven itself in industrial environments, the LBR Med is likewise equipped with redundant integrated torque sensors. These endow it with strong haptic capabilities, the ability to perceive external influences, and safe collision detection, making the LBR Med HRC-compliant.
