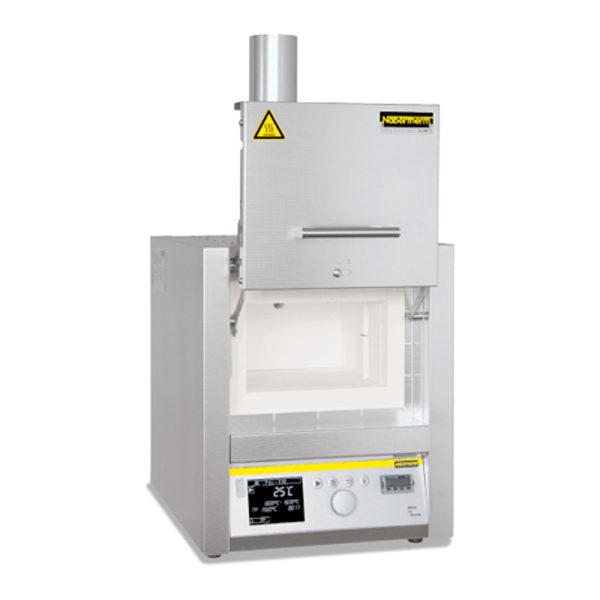

Nabertherm Ashing Furnace with B510 Controller

Nabertherm Ashing Furnace with B510 Controller

The Nabertherm Ashing Furnace LV Series/11 is designed especially for ashing processes to 1050 °C in the laboratory. Applications include determining loss on ignition, ashing food and plastics for subsequent substance analysis. A special fresh-air and exhaust air system ensures that the air is replaced 6 times per minute so that there is always sufficient oxygen for the ashing process. Incoming air passes the furnace heating and is pre-heated to ensure good temperature uniformity.

Standard Equipment
  • Tmax 1100 °C
  • Heating from two sides
  • Ceramic heating plates with an integral heating element, which is safeguarded and easy to replace
  • Air exchange of more than 6 times per minute
  • Good temperature uniformity due to preheating of incoming air, temperature uniformity according to DIN 17052-1 to +/− 10 °C in the defined empty work area (from 550 °C)
  • Dual shell housing made of textured stainless steel sheets with additional fan cooling for low surface temperature
  • Exclusive use of insulation materials without categorisation according to EC Regulation No. 1272/2008 (CLP)
  • Suitable for many standardised ashing processes according to ISO, ASTM, EN, and DIN
  • Optional flap door (LV), which can be used as a work platform or a lift door (LVT) with a hot surface facing away from the operator
  • Controller B510 (5 programs with each 4 segments)
  • Solid-state relays provide for low-noise operation
  • Defined application within the constraints of the operating instructions
  • NTLog Basic for Nabertherm controller: recording of process data with USB flash drive

Nabertherm Ashing Furnace with B510 Controller

The Nabertherm Ashing Furnace LV Series/11 is designed especially for ashing processes to 1050 °C in the laboratory. Applications include determining loss on ignition, ashing food and plastics for subsequent substance analysis. A special fresh-air and exhaust air system ensures that the air is replaced 6 times per minute so that there is always sufficient oxygen for the ashing process. Incoming air passes the furnace heating and is pre-heated to ensure good temperature uniformity.

Standard Equipment
  • Tmax 1100 °C
  • Heating from two sides
  • Ceramic heating plates with an integral heating element, which is safeguarded and easy to replace
  • Air exchange of more than 6 times per minute
  • Good temperature uniformity due to preheating of incoming air, temperature uniformity according to DIN 17052-1 to +/− 10 °C in the defined empty work area (from 550 °C)
  • Dual shell housing made of textured stainless steel sheets with additional fan cooling for low surface temperature
  • Exclusive use of insulation materials without categorisation according to EC Regulation No. 1272/2008 (CLP)
  • Suitable for many standardised ashing processes according to ISO, ASTM, EN, and DIN
  • Optional flap door (LV), which can be used as a work platform or a lift door (LVT) with a hot surface facing away from the operator
  • Controller B510 (5 programs with each 4 segments)
  • Solid-state relays provide for low-noise operation
  • Defined application within the constraints of the operating instructions
  • NTLog Basic for Nabertherm controller: recording of process data with USB flash drive
Additional Equipment
  • Over-temperature limiter with adjustable cutout temperature as a temperature limiter to protect the oven and load
  • Port for thermocouple in the rear wall or the furnace door
  • Charging rack with closed or perforated trays for loading the furnace in two levels, incl. holder for inserting/removing the trays up to a max. temperature of 800 °C and a max. loading weight of 2 kg for the LV(T) 9/11 respectively 3 kg for the LV(T) 15/11
  • Process control and documentation via the VCD software package for monitoring, documentation and control
Catalog Number
Model
TMax
Controller
Volume
Electrical
Interior Dimensions
W x D x H (mm)
Exterior Dimensions²
W x D x H³ (mm)
Weight
LV034K1LN1-208 LV3/11 1100 B510 3L 208V 1.2kW
1-phase
160 x 140 x 100 385 x 360 x 735 20kg
LV034K1LN1-240 LV3/11 1100 B510 3L 240V 1.2kW
1-phase
160 x 140 x 100 385 x 360 x 735 20kg
LV034K1ON1-208 LV3/11 1100 C550 3L 208V 1.2kW
1-phase
160 x 140 x 100 385 x 360 x 735 20kg
LV034K1ON1-240 LV3/11 1100 C550 3L 240V 1.2kW
1-phase
160 x 140 x 100 385 x 360 x 735 20kg
LV054K1LN1-208 LV5/11 1100 B510 5L 208V 2.4kW
1-phase
200 x 170 x 130 385 x 420 x 790 35kg
LV054K1LN1-240 LV5/11 1100 B510 5L 240V 2.4kW
1-phase
200 x 170 x 130 385 x 420 x 790 35kg
LV054K1ON1-208 LV5/11 1100 C550 5L 208V 2.4kW
1-phase
200 x 170 x 130 385 x 420 x 790 35kg
LV054K1ON1-240 LV5/11 1100 C550 5L 240V 2.4kW
1-phase
200 x 170 x 130 385 x 420 x 790 35kg
LV094K1LN1-208 LV9/11 1100 B510 9L 208V 3.0kW
1-phase
230 x 240 x 170 415 x 485 x 845 45kg
LV094K1LN1-240 LV9/11 1100 B510 9L 240V 3.0kW
1-phase
230 x 240 x 170 415 x 485 x 845 45kg
LV094K1ON1-208 LV9/11 1100 C550 9L 208V 3.0kW
1-phase
230 x 240 x 170 415 x 485 x 845 45kg
LV094K1ON1-240 LV9/11 1100 C550 9L 240V 3.0kW
1-phase
230 x 240 x 170 415 x 485 x 845 45kg
LV154K1LN1-208 * LV15/11 1100 B510 15L 208V 3.5kW
1-phase
230 x 340 x 170 415 x 585 x 845 55kg
LV154K1LN1-240 LV15/11 1100 B510 15L 240V 3.5kW
1-phase
230 x 340 x 170 415 x 585 x 845 55kg
LV154K1ON1-208 LV15/11 1100 C550 15L 208V 3.5kW
1-phase
230 x 340 x 170 415 x 585 x 845 55kg
LV154K1ON1-240 LV15/11 1100 C550 15L 240V 3.5kW
1-phase
230 x 340 x 170 415 x 585 x 845 55kg
Lift Door Models
LV034H1LN1-208 LVT3/11 1100 B510 3L 208V 1.2kW
1-phase
160 x 140 x 100 385 x 360 x 735 20kg
LV034H1LN1-240 LVT3/11 1100 B510 3L 240V 1.2kW
1-phase
160 x 140 x 100 385 x 360 x 735 20kg
LV054H1LN1-208 LVT5/11 1100 B510 5L 208V 2.4kW
1-phase
200 x 170 x 130 385 x 420 x 790 35kg
LV054H1LN1-240 LVT5/11 1100 B510 5L 240V 2.4kW
1-phase
200 x 170 x 130 385 x 420 x 790 35kg
LV054H1ON1-208 LVT5/11 1100 C550 5L 208V 2.4kW
1-phase
200 x 170 x 130 385 x 420 x 790 35kg
LV054H1ON1-240 LVT5/11 1100 C550 5L 240V 2.4kW
1-phase
200 x 170 x 130 385 x 420 x 790 35kg
LV094H1LN1-208 LVT9/11 1100 B510 9L 208V 3.0kW
1-phase
230 x 240 x 170 415 x 485 x 845 45kg
LV094H1LN1-240 LVT9/11 1100 B510 9L 240V 3.0kW
1-phase
230 x 240 x 170 415 x 485 x 845 45kg
LV154H1LN1-208 LVT15/11 1100 B510 15L 208V 3.5kW
1-phase
230 x 340 x 170 415 x 585 x 845 55kg
LV154H1LN1-240 LVT15/11 1100 B510 15L 240V 3.5kW
1-phase
230 x 340 x 170 415 x 585 x 845 55kg
LV154H1ON1-208 LVT15/11 1100 C550 15L 208V 3.5kW
1-phase
230 x 340 x 170 415 x 585 x 845 55kg
LV154H1ON1-240 LVT15/11 1100 C550 15L 240V 3.5kW
1-phase
230 x 340 x 170 415 x 585 x 845 55kg
