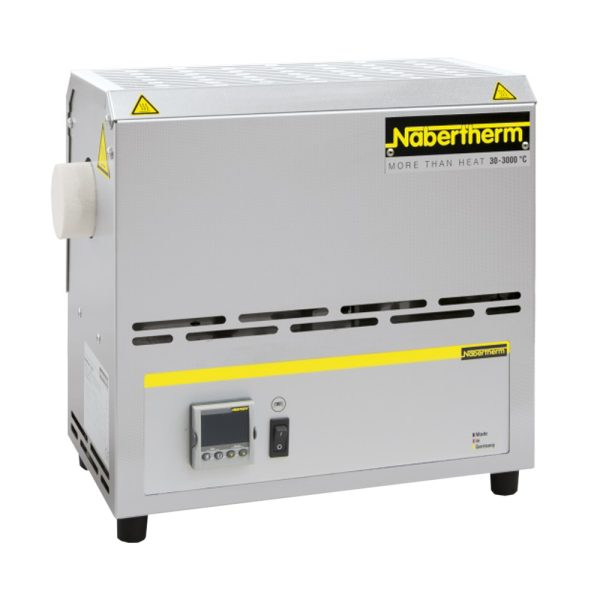

Nabertherm Compact Tube Furnace With R7 Controller

Nabertherm Compact Tube Furnace With R7 Controller – up to 1100 °C

The Nabertherm Compact Tube Furnace – RD SERIES/11 impresses with its very good price-performance ratio, particularly compact external dimensions and its low weight. This all-rounder is equipped with a working tube, which also serves as support for the heating wires. The working tube is therefore part of the furnace heating, with the advantage that the tube furnace reaches very high heating speeds. The furnace is designed for horizontal use up to 1100 °C.

Standard Equipment

• Tmax 1100 °C
• Dual shell housing made of textured stainless steel sheets with additional fan cooling for low surface temperature
• Exclusive use of insulation materials without categorisation according to EC Regulation No. 1272/2008 (CLP)
• Inner diameter of the tube: 30 mm, heated length: 200 mm
• Ceramic working tube C 530, including two fibre plugs for operation under air
• Thermocouple type K (1100 °C)
• Solid-state relays provide for low-noise operation
• Heating wires wound directly around the working tube, resulting in very fast heat-up rates
• Defined application within the constraints of the operating instructions
• Controller R7

Additional Equipment

• Over-temperature limiter with adjustable cutout temperature for thermal protection class 2 under EN 60519-2 as a temperature limiter to protect the furnace and load
• Gas supply system 1 for non-flammable protective or reactive gas
