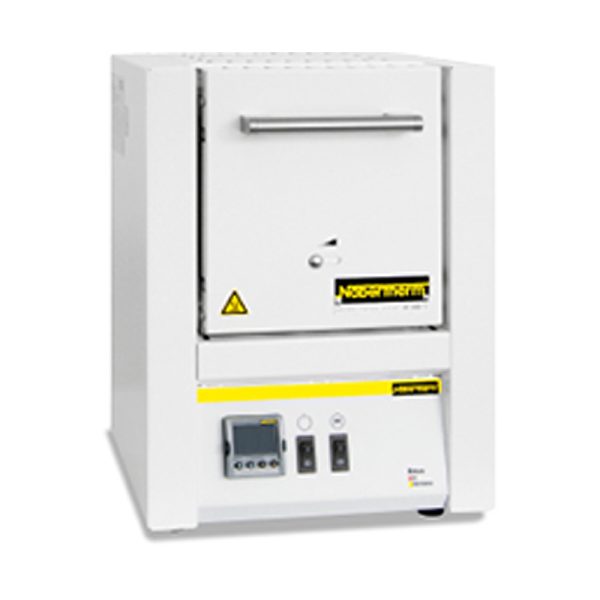

Nabertherm Economy Muffle Furnace

Nabertherm Economy Muffle Furnace LE SERIES/11 With R7 Controller – Economy Muffle Furnaces up to 1100 °C

With their convincing price/performance ratio and fast heat-up rates, these compact muffle furnaces are perfect for many applications in the laboratory. Quality features like the dual shell furnace housing of rust-free stainless steel, their compact, lightweight constructions, or the heating elements encased in quartz glass tubes make these models reliable partners for your application.

Standard Equipment

  • Tmax 1100 °C
  • Heating from two sides by heating elements protected in quartz glass tubes
  • Fast heating times (see table)
  • Maintenance-friendly replacement of heating elements and insulation
  • Housing coated in RAL
  • Solid-state relays provide for low-noise operation
  • Dual shell housing made of textured stainless steel sheets with additional fan cooling for low surface temperature
  • Exclusive use of insulation materials without categorisation according to EC Regulation No. 1272/2008 (CLP)
  • Flap door, which can also be used as a work platform
  • Exhaust air outlet in the rear wall
  • Compact dimensions and light weight
  • The controller is mounted under the door to save space
  • Controller R7
  • Defined application within the constraints of the operating instructions

Nabertherm Economy Muffle Furnace LE SERIES/11 With R7 Controller – Economy Muffle Furnaces up to 1100 °C

With their convincing price/performance ratio and fast heat-up rates, these compact muffle furnaces are perfect for many applications in the laboratory. Quality features like the dual shell furnace housing of rust-free stainless steel, their compact, lightweight constructions, or the heating elements encased in quartz glass tubes make these models reliable partners for your application.

Standard Equipment

  • Tmax 1100 °C
  • Heating from two sides by heating elements protected in quartz glass tubes
  • Fast heating times (see table)
  • Maintenance-friendly replacement of heating elements and insulation
  • Housing coated in RAL
  • Solid-state relays provide for low-noise operation
  • Dual shell housing made of textured stainless steel sheets with additional fan cooling for low surface temperature
  • Exclusive use of insulation materials without categorisation according to EC Regulation No. 1272/2008 (CLP)
  • Flap door, which can also be used as a work platform
  • Exhaust air outlet in the rear wall
  • Compact dimensions and light weight
  • The controller is mounted under the door to save space
  • Controller R7
  • Defined application within the constraints of the operating instructions
Additional Equipment

Chimney, with fan or catalytic converter (not for LE 1 and LE 2)

Catalog Number     Model TMax Controller Volume Electrical Interior Dimensions
W x D x H (mm)
Exterior Dimensions
W x D x H (mm)
Weight
LE013K17N1-120 LE1/11 1100 R7 1L 120V 1.6kW
1-phase
90 x 115 x 110 290 x 280 x 410 15kg
LE013K17N1-208 * LE1/11 1100 R7 1L 208V 1.6kW
1-phase
90 x 115 x 110 290 x 280 x 410 15kg
LE013K17N1-240 LE1/11 1100 R7 1L 240V 1.6kW
1-phase
90 x 115 x 110 290 x 280 x 410 15kg
LE022K17N1-120 LE2/11 1100 R7 2L 120V 1.9kW
1-phase
110 x 180 x 110 330 x 390 x 410 20kg
LE022K17N1-208 LE2/11 1100 R7 2L 208V 1.9kW
1-phase
110 x 180 x 110 330 x 390 x 410 20kg
LE022K17N1-240 LE2/11 1100 R7 2L 240V 1.9kW
1-phase
110 x 180 x 110 330 x 390 x 410 20kg
LE062K17N1-120 LE6/11 1100 R7 6L 120V 2.0kW
1-phase
170 x 200 x 170 390 x 440 x 470 27kg
LE062K17N1-208 LE6/11 1100 R7 6L 208V 2.0kW
1-phase
170 x 200 x 170 390 x 440 x 470 27kg
LE062K17N1-240 LE6/11 1100 R7 6L 240V 2.0kW
1-phase
170 x 200 x 170 390 x 440 x 470 27kg
LE142K17N1-208 LE14/11 1100 R7 14L 208V 3.2kW
1-phase
220 x 300 x 220 440 x 540 x 520 35kg
LE142K17N1-240 LE14/11 1100 R7 14L 240V 3.2kW
1-phase
220 x 300 x 220 440 x 540 x 520 35kg
