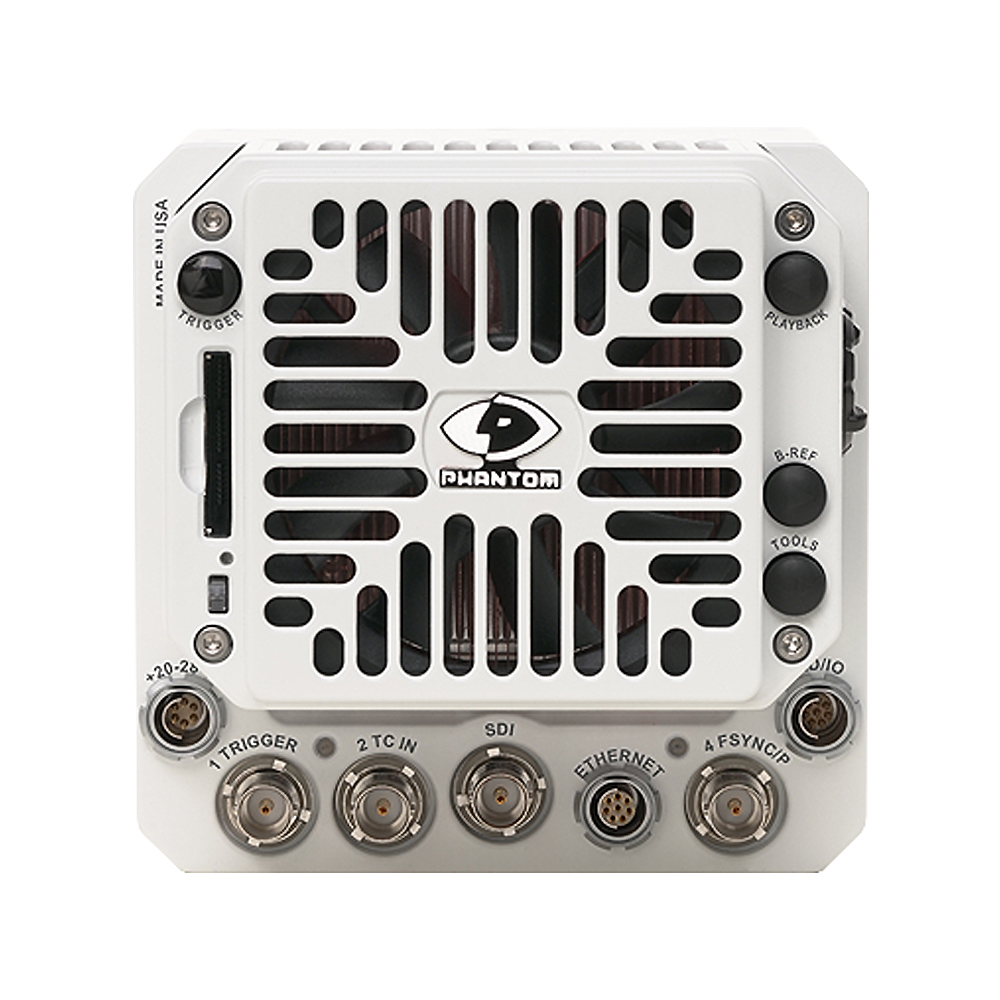

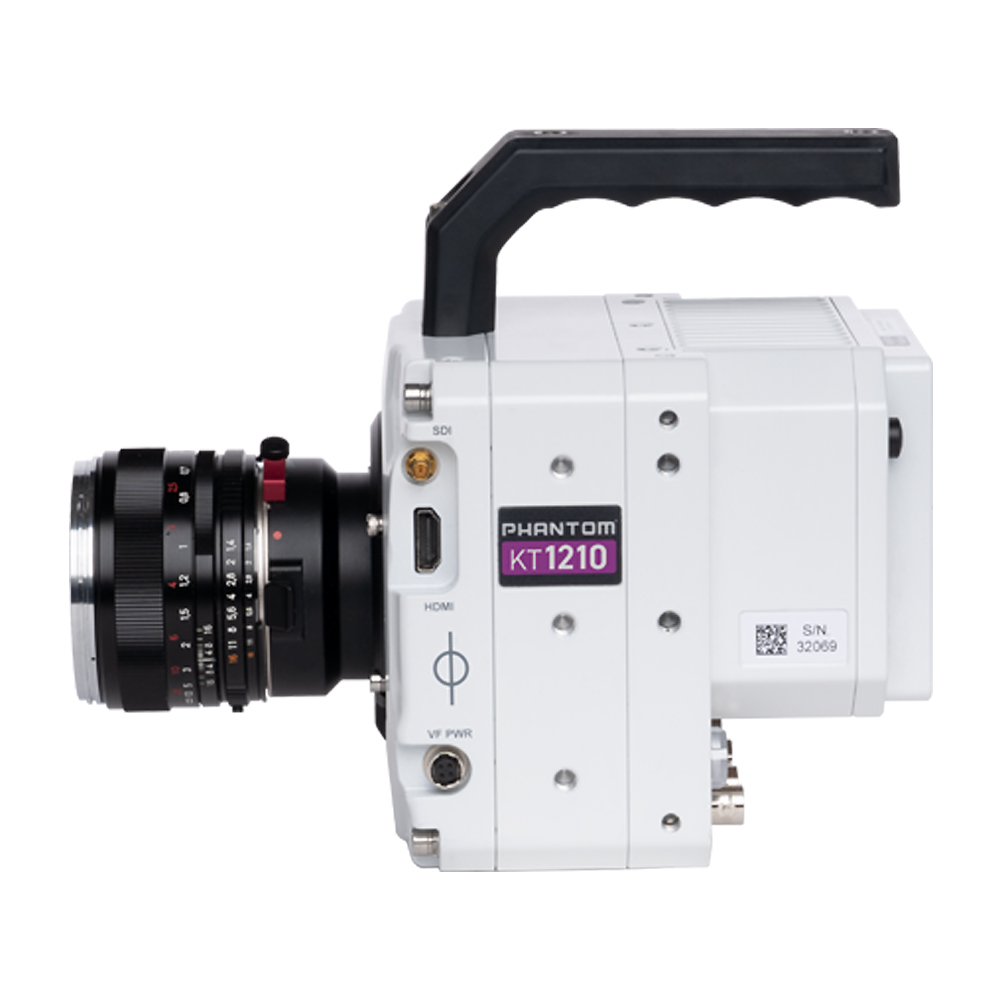

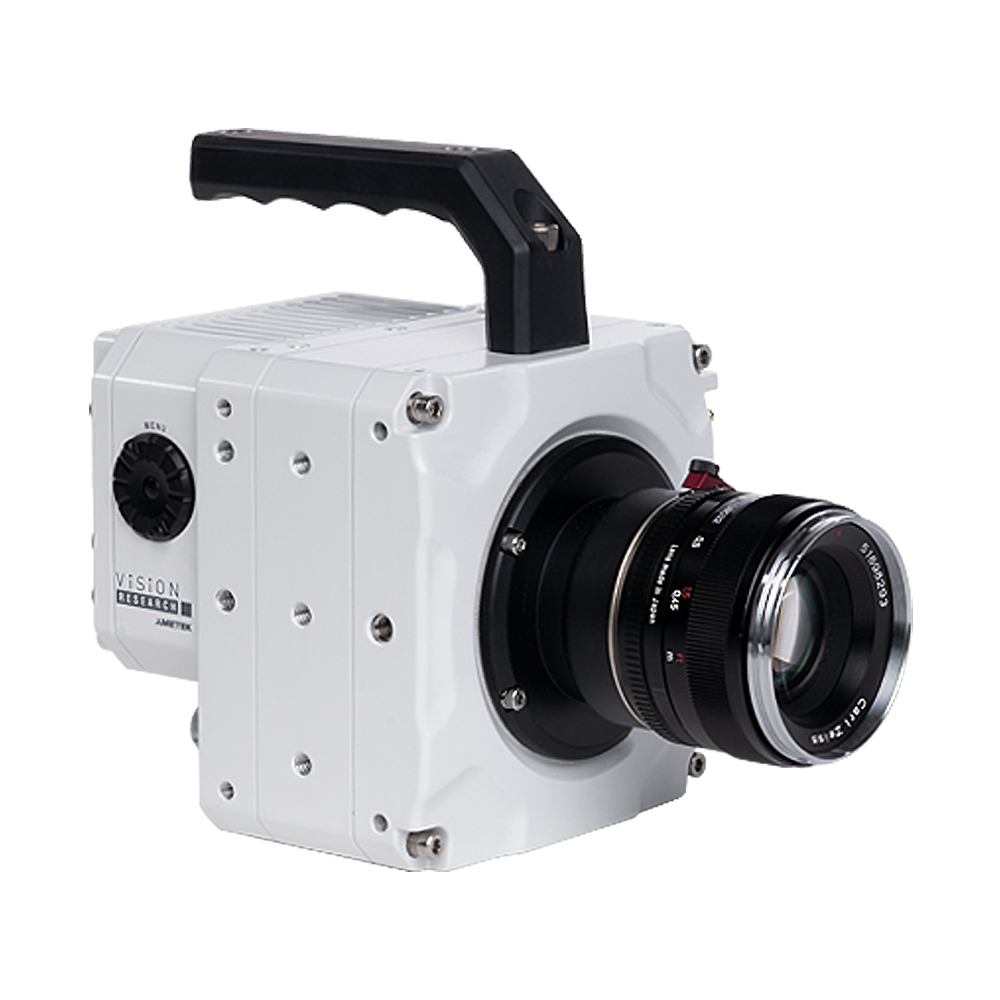

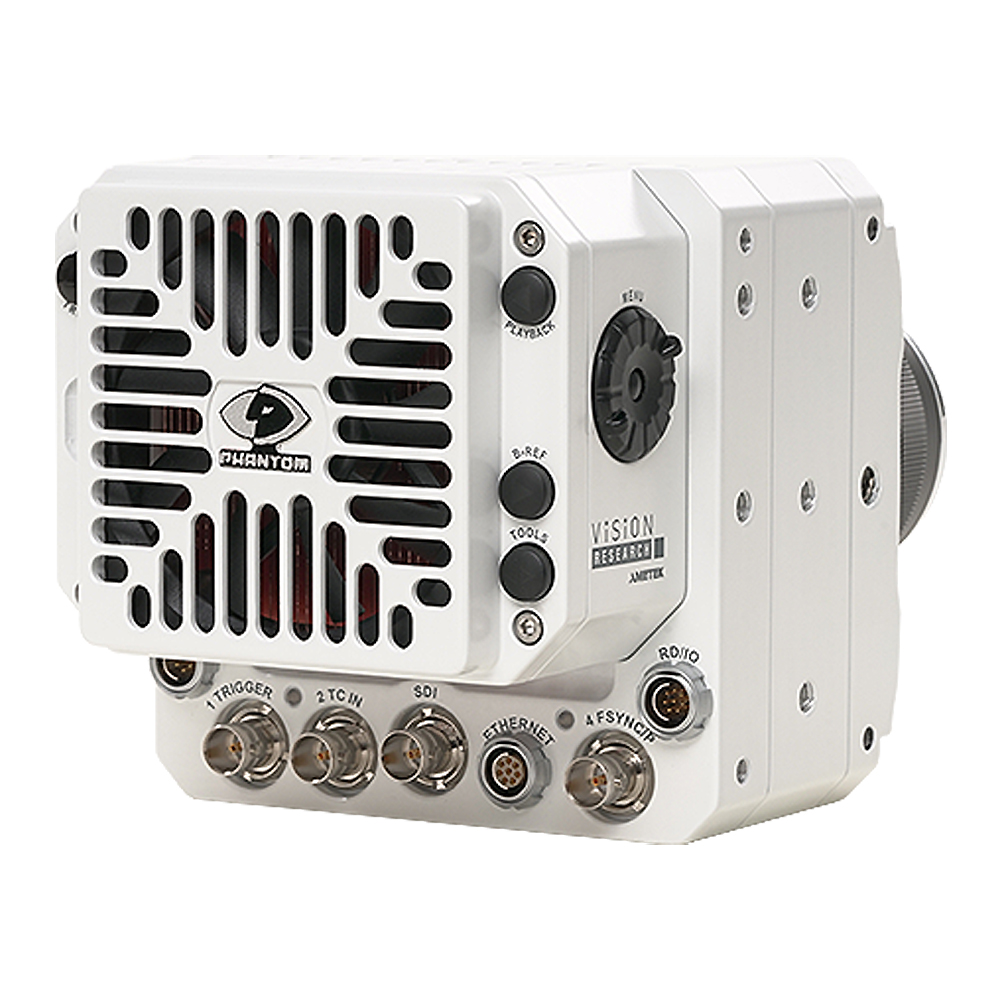

Phantom High-Speed KT1210

The Phantom-High-Speed-KT1210 utilises the same advanced high-speed sensor as the KT1610 to ensure optimal image performance for challenging motion analysis applications. The camera’s compact and lightweight (3.2 kg) design reduces the size and complexity of support equipment, great for installations with limited space.

  • 12,090 fps at 1280 x 832
  • Fast option for 708,330 fps at 256 x 64 and 190 ns min exposure
  • 84.6% QExFF (mono)
  • Up to 128 GB RAM

The Phantom-High-Speed-KT1210, with frame rates over 12,000 fps at full 1Mpx resolution, to over 52,000 fps at 640 x 384 and 708,000 fps at 256 x 64, the KT1210 is a versatile solution for applications ranging from material impact analysis to fluid dynamics to ballistics testing.

Phantom KT-Series cameras include premium features to enable a variety of applications, including:

  • Programmable I/O to assign and modify the hardware signal interface for advanced synchronisation. Users can interface with data acquisition (DAQ) systems and other measurement sensors, which can be recorded and viewed as metadata in Cine files.
  • Extreme Dynamic Range (EDR) provides flash mitigation for ballistic studies by dynamically adjusting exposure in saturated image areas.
  • The option for an automated workflow using image-based auto-trigger (IBAT), combined with multi-Cine partitions and continuous recording in PCC.

Key Features of the Phantom-High-Speed-KT1210

  • Binned Mode combines pixels for a frame rate boost at 640 x 384 and below
  • Programmable I/O for precise control of sync and precision triggering
  • EDR for flash mitigation
  • CF Express-B compatibility for remote storage or secure file backup
  • On-Camera control interface for standalone operation
  • SDI and HDMI video outputs for continuous monitoring and smooth playback

What’s in the box?

  • 160w Power supply with XLR power cable
  • Ethernet Cable
  • Mini-SDI video cable

*Printed Manual and PCC Software CD available upon request.
