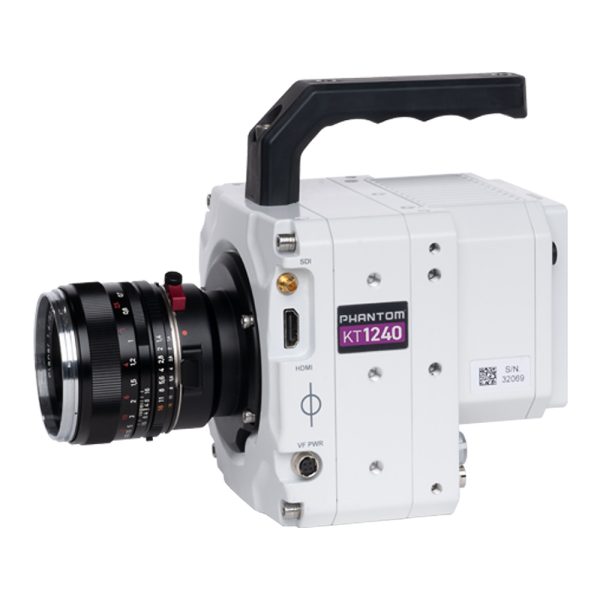

Phantom High-Speed KT1240

The Phantom-High-Speed-KT1240 offers the pixel resolution required to ensure fine details are captured, in addition to the high-speed movement of the subject, to ensure the reliability of captured data for advanced research in a variety of fields. The camera’s compact and lightweight (3.2 kg) design reduces the size and complexity of support equipment, great for installations with limited space.

2,920 fps at 2560 x 1664
326,310 fps at 512 x 64
88.7% QExFF (mono)
Up to 128 GB RAM

The Phantom-High-Speed-KT1240 takes advantage of the same advanced 4.2MPx sensor as the KT1640, providing all of the same benefits at a lower throughput and price point. BSI sensor architecture provides a QExFF rating of 88.7% (mono), ensuring optimal response for subjects with limited available light.

Digital Image Correlation (DIC) and tracking of projectiles and explosives research are examples of applications that benefit from the increased pixel resolution.

Phantom High-Speed-KT1240 camera includes premium features to enable a variety of applications, including:

Programmable I/O to assign and modify the hardware signal interface for advanced synchronisation. Users can interface with data acquisition (DAQ) systems and other measurement sensors, which can be recorded and viewed as metadata in Cine files.
Extreme Dynamic Range (EDR) provides flash mitigation for ballistic studies by dynamically adjusting exposure in saturated image areas.
On-camera controls, CF Express and video outputs enable a standalone untethered workflow

Key Features
