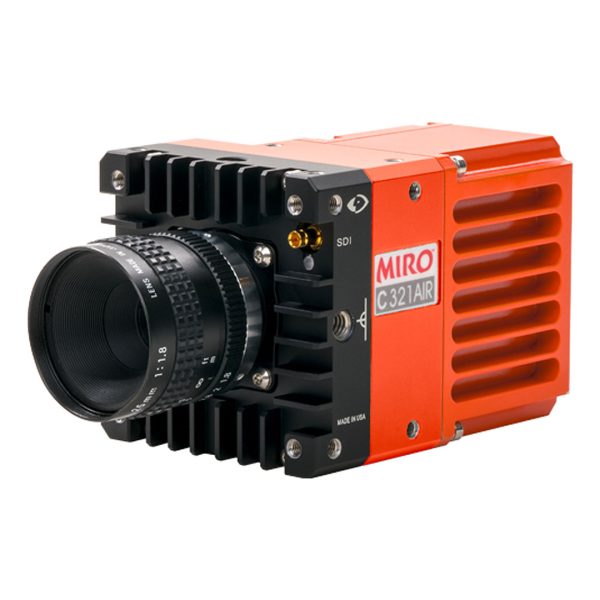

Phantom Miro C321 AIR High-Speed Camera

The Phantom Miro C321 AIR provides high-quality, HD images in a small and rugged package specifically designed for harsh aerospace applications.

  • It is tested to -55°C to +50°C for  aerospace testing needs
  • 16GB of RAM and the capability for a secured, removable CFast allow for multiple tests.

The Phantom Miro C321 AIR leverages years of rugged application use in auto crash testing, where every test is critical. It’s designed to withstand harsh environments and repeatedly deliver high-quality images. The Phantom Miro C321 AIR offers:

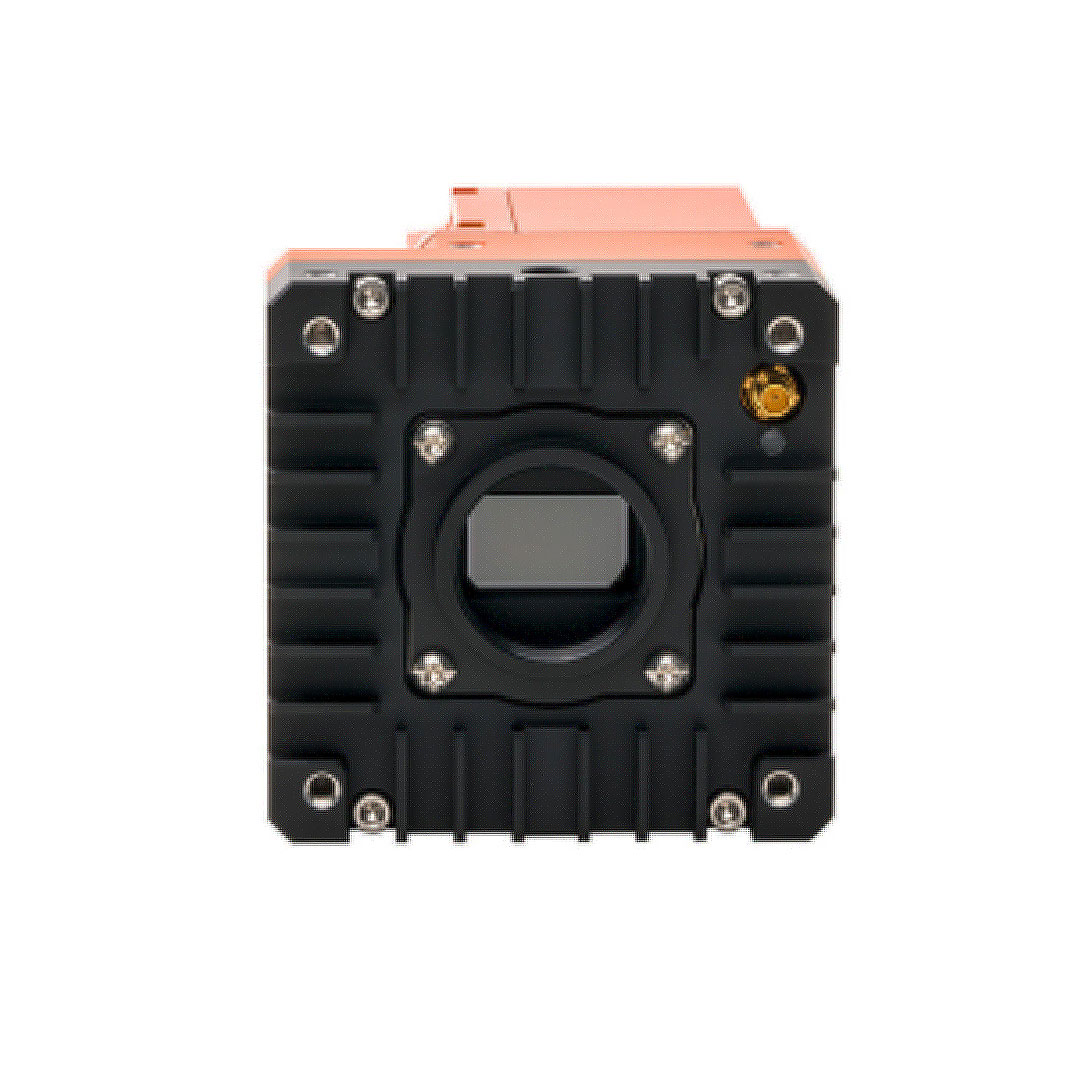

  • A 10-micron pixel for high sensitivity in a small camera package.
  • A high frame rate at HD resolution and a low 1 microsecond minimum exposure time to truly capture the test event and reduce motion blur. Frame rates increase to over 94,000 fps with reduced resolutions.
  • 16GB of memory, CFast capability, memory partitioning and autosave allow multiple shots to be securely stored.
  • Programmable I/O to configure signals, as well as many other standard Phantom Features for flexible test capabilities.
  • Designed to meet MIL-STD 810H, 704, and 461 test standards.
Key Features:
  • 1920 x 1080 resolution
  • High sensitivity
  • -55C to +50C operational temperature
  • small form factor
What’s in the box?
  • 40W Power supply with XLR extender
  • Ethernet cable
  • DIN 1.0/2.3 cable for SDI
  • MiniBOB

*Printed Manual and PCC Software CD available upon request.
