Phantom Miro C321 High-Speed Camera

The Phantom Miro C321J and C321 provide high-quality HD imaging for on-board auto crash testing and a range of other applications. The small, rugged cameras work perfectly within established Phantom imaging solutions for additional flexibility.

  • 1480 fps at 1920 x 1080
  • Sensitivity: Quantum Efficiency*
    • Mono: 45.3%
    • Colour: 31.5%
  • Memory Capabilities:
    • 8 or 16 GB RAM
    • 240 GB internal, non-removable CineFlash
  • Internal battery for data protection

The Phantom Miro C321 and C321J cameras are the next evolution in offering 3GPX/sec throughput with a maximum frame rate of 1480 fps at full 1920 x 1080 resolution. These cameras provide very high-quality, low-noise images, including the ability for you to set a new CSR default that provides a high-quality image right at boot-up for a fast and convenient set-up. They are small, rugged, and built in the same form factor as other Miro C cameras. This makes them perfect to incorporate into already-established automotive crash test imaging solutions. The Miro C Series are tested and proven to withstand shocks of up to 170G and vibration of 24 Grms. The cameras also come with an internal backup battery and Flash, which ensures critical test images are captured and saved safely.

The cameras use a sensor with tightly packed 10-micron pixels for great light sensitivity. When you combine this with the camera’s advanced features, your shots are delivered quickly with clear detail. You can save 25 shots into the 240GB Flash before downloading is required, making it ideal for situations with repeat setups or experiments. These new features help the Phantom Miro C321 improve speed and image quality, both on the auto test floor and in cutting-edge laboratories. The combination of the on-camera battery and the non-volatile Flash keeps all of your data safe in the event of power loss.

Key Features:
  • High-quality images
  • 1920 x 1080 resolution
  • High sensitivity
  • Tested to 170G Shock
What’s in the box?

C321J

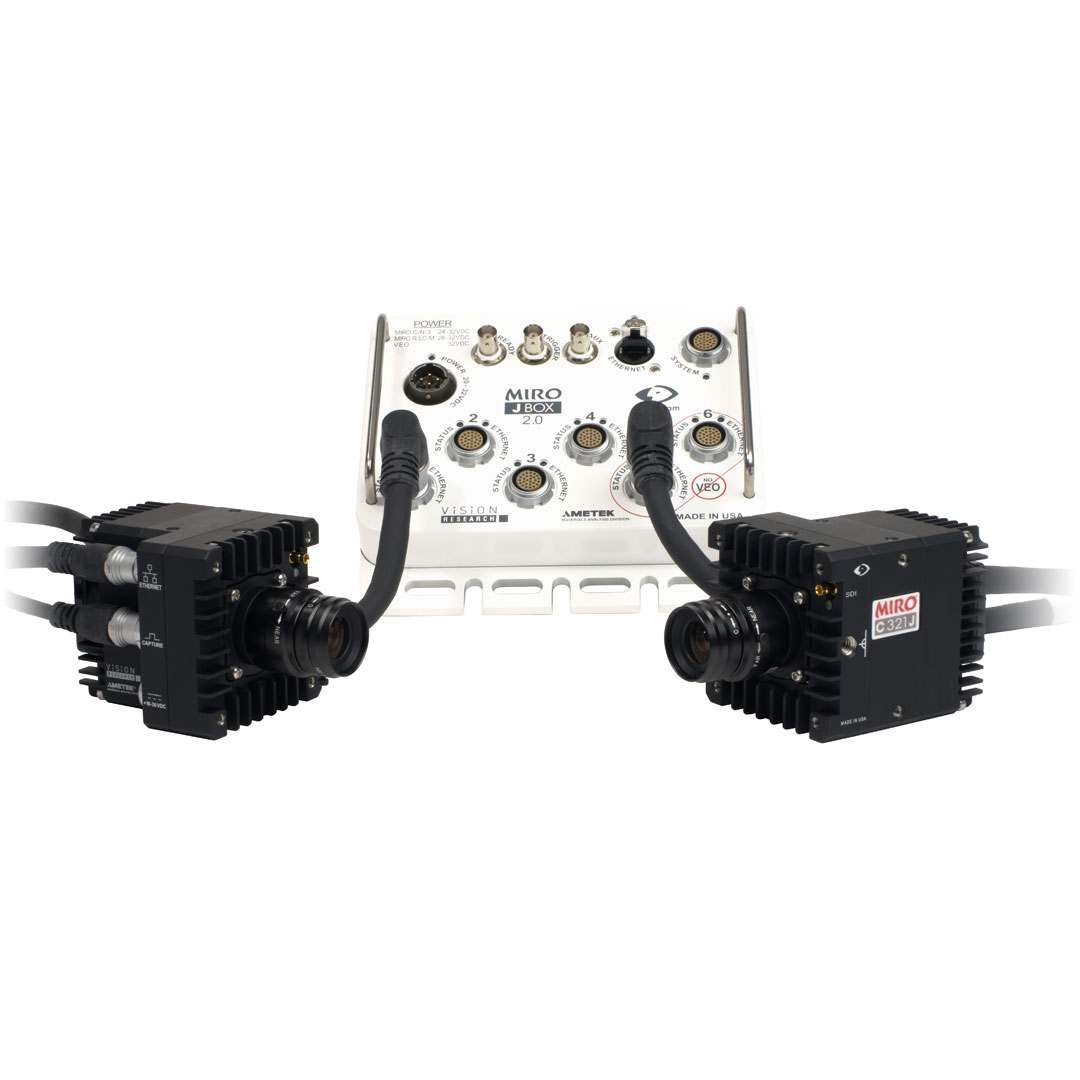

The C321J connects directly to the Miro J-Box and does not ship with other accessories.

C321

  • Power Supply with XLR extender
  • Ethernet cable
  • DIN 1.0/2.3 cable for SDI
  • MiniBOB
