Phantom S210 Machine Vision High-Speed Camera

The Phantom S210 Machine Vision delivers high-quality images at 2Gpx/sec throughput via 4 CoaXpress (CXP) channels. This special machine vision camera is compact, cost-conscious and offers GPIO for common signals.

  • Up to 1,730 fps at 1280 x 1024
  • Global shutter
  • 8- and 10-bit selectable
  • GenICam protocol compliant

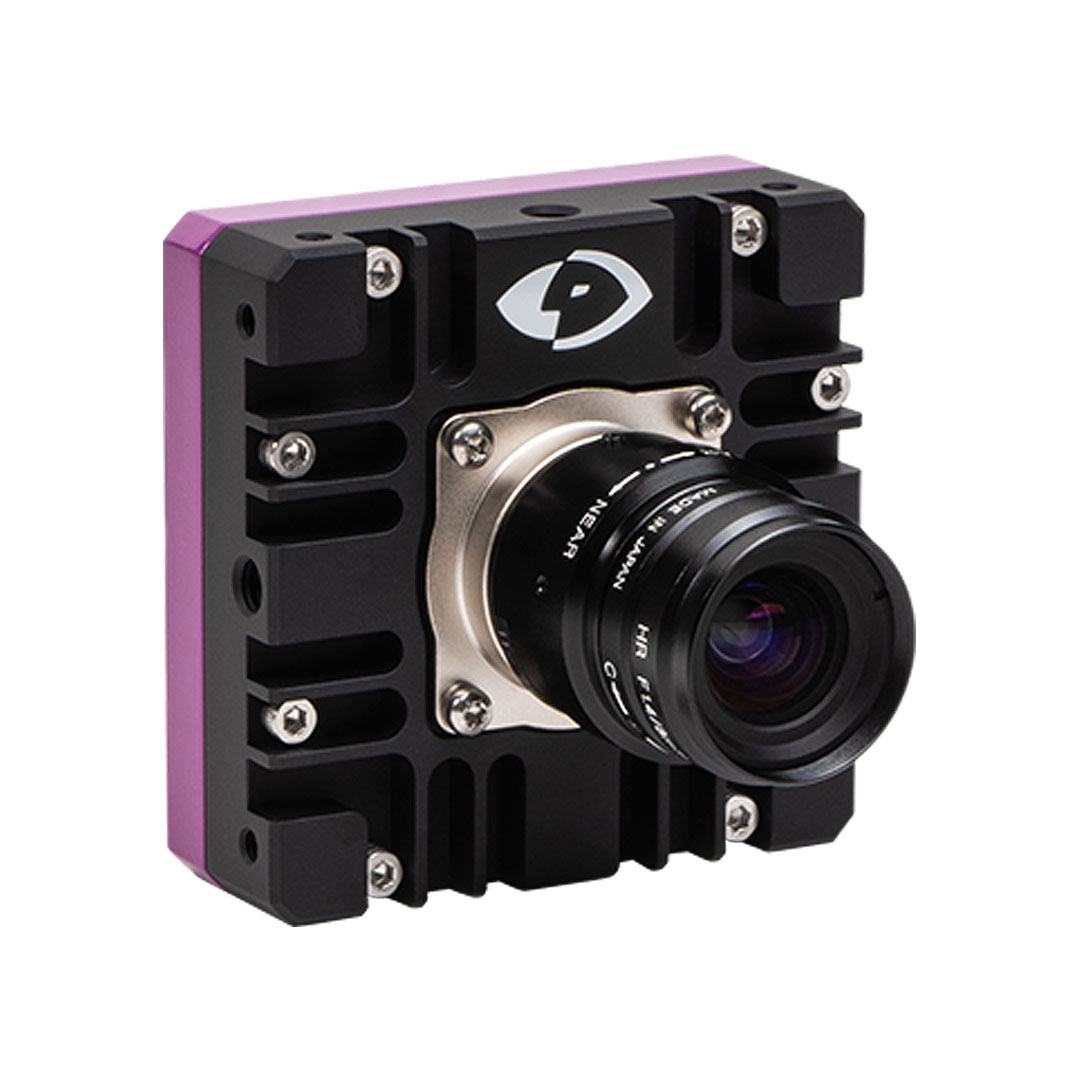

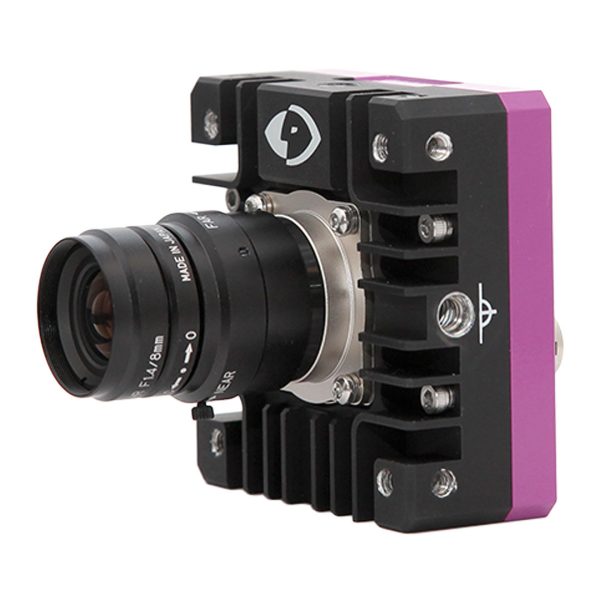

The Phantom S210 Machine Vision is a small (76 x 76 x 39 mm) and cost-effective streaming camera with up to 2 Gpx/sec (25 Gbps) of data throughput by using 4 CXP channels. The S210 delivers the same exceptional Phantom image quality found in all Phantom cameras in the machine vision industry. It works well in enclosed and small machine spaces.

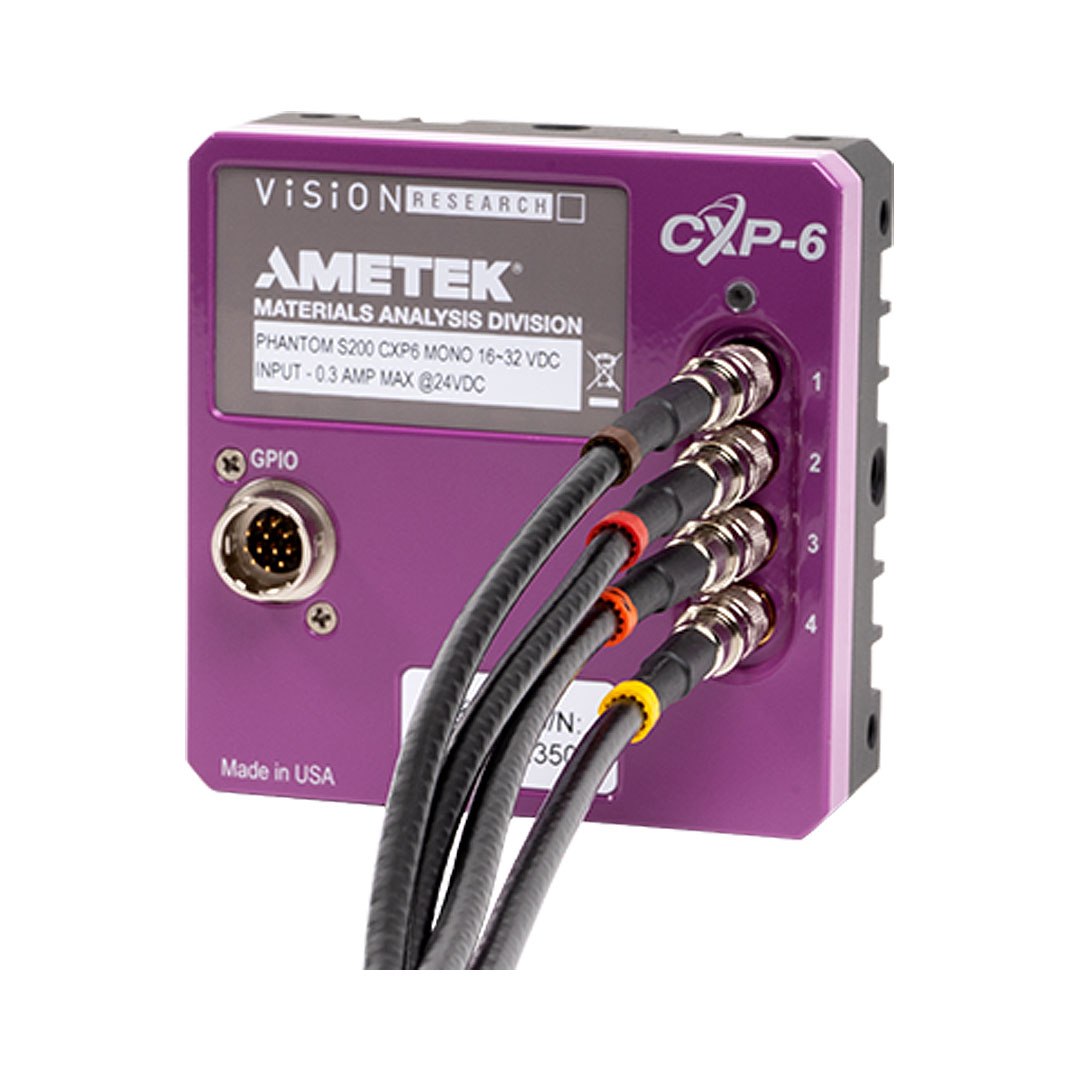

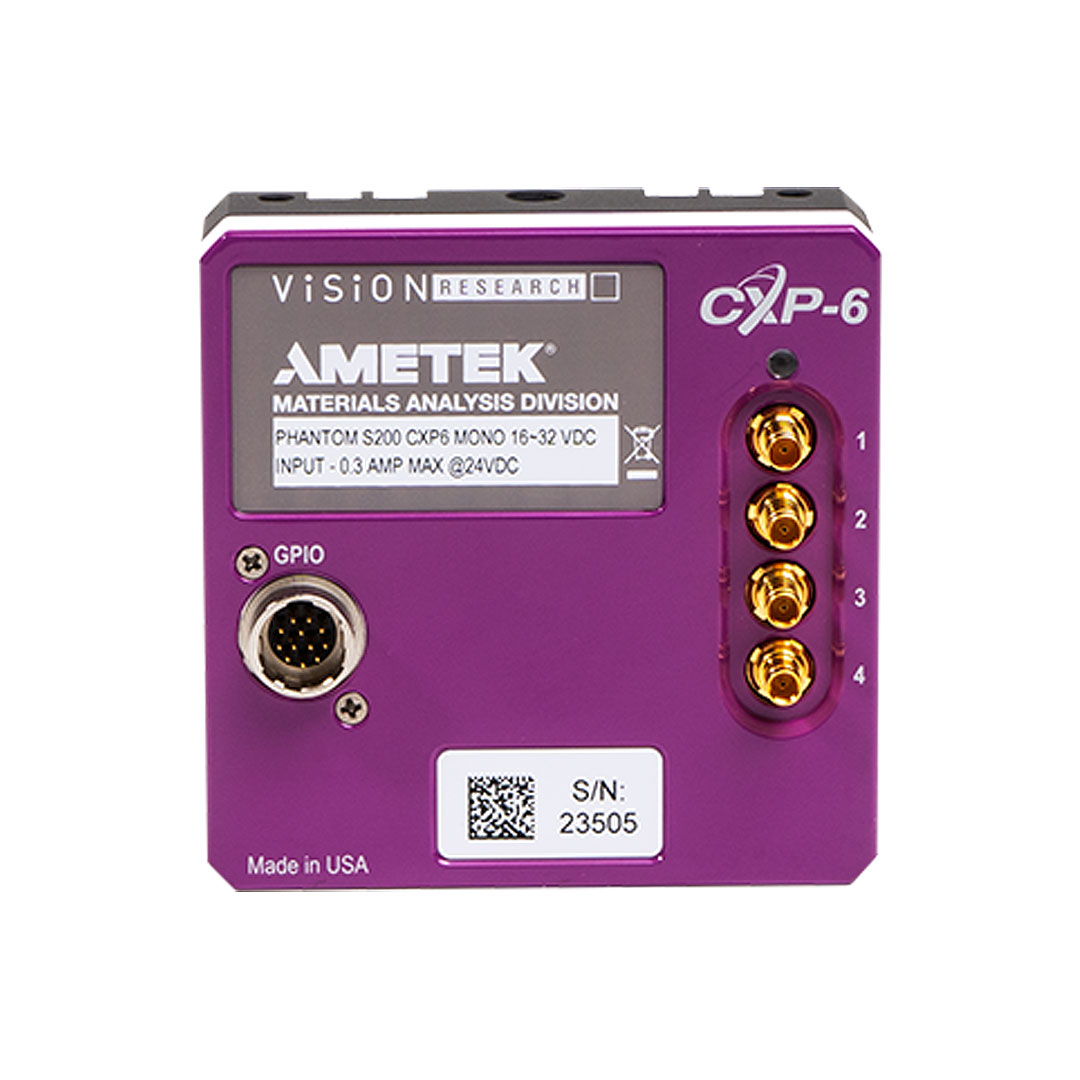

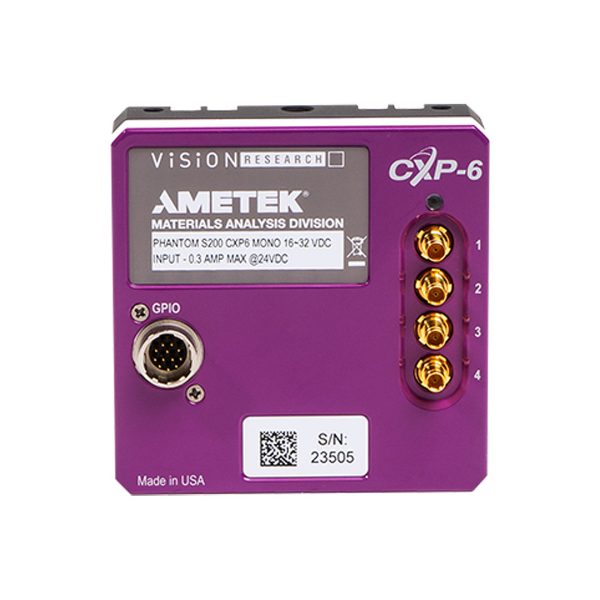

The 210 Machine Vision camera comes equipped with a GPIO for trigger, event, memgate, strobe, and ready signals. It also comes with a timecode In/Out with a time stamp on the frame. When capturing images, the S210 streams directly into PCI Express frame grabbers or long record time DVRs. Recording is triggered either through the provided software or via the GPIO trigger signal.

Key Features
  • 1.3Mpx Sensor
  • 5.6 µm pixel size
  • Noise: 10e-
  • Dynamic range: 58dB
  • Streams up to 2Gpx/sec (25 Gbps)
  • Economical
What’s In the Box?
  • S210 camera
