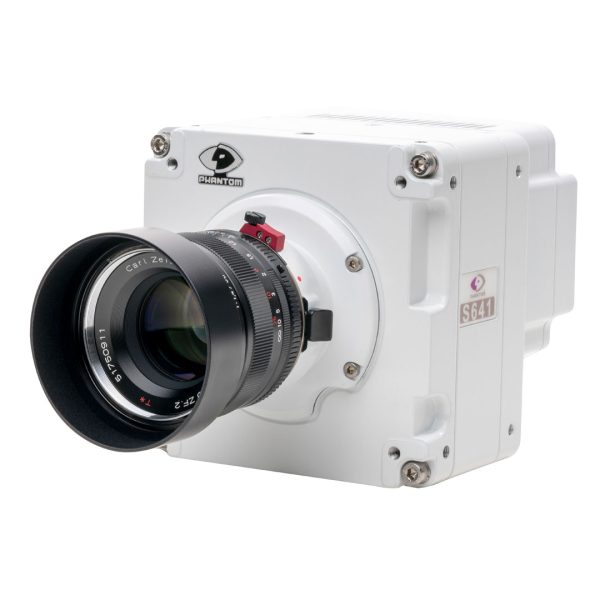

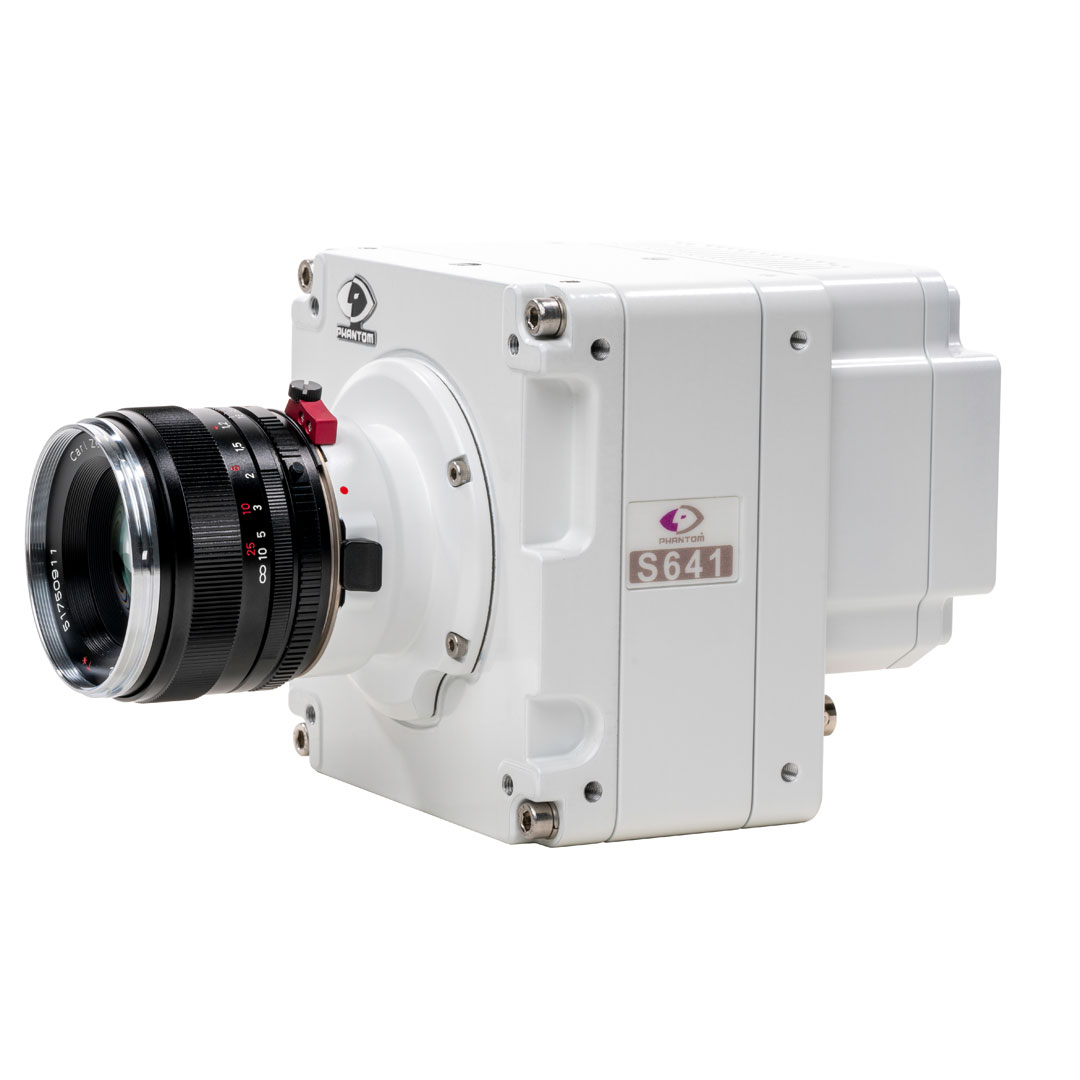

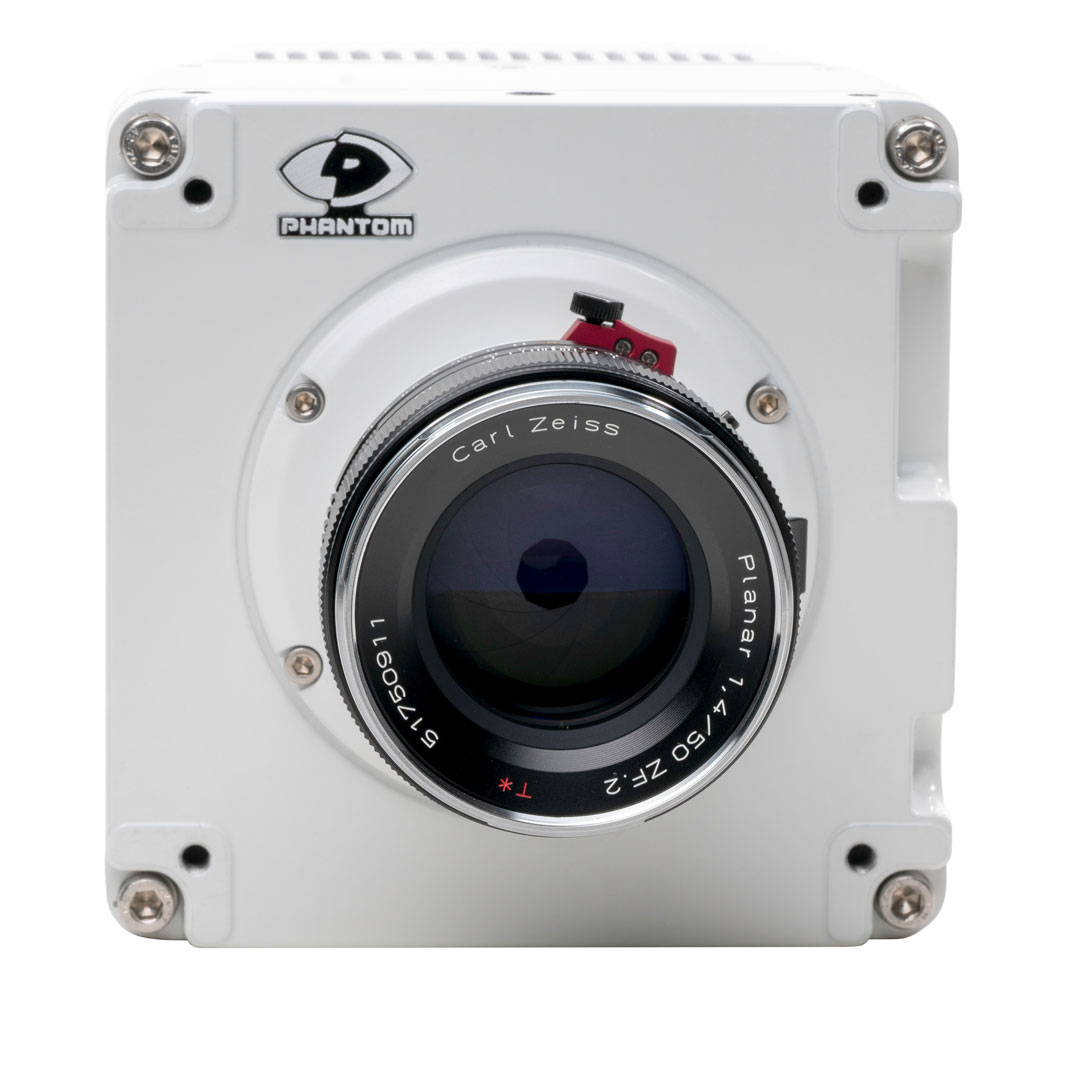

Phantom S641 Machine Vision High-Speed Camera

The Phantom S641 Machine Vision provides up to 6 Gpx/sec (48 Gbps) of data throughput, producing both high-frame-rate and high-resolution 4 Mpx images. The powerful machine vision camera has the capability for 2 Regions of Interest (ROI), for increased efficiency and flexibility.

Up to 1,490 fps at 2560 x 1600
Sensitivity: Quantum Efficiency*
- Mono: 58.6%
- Colour: 45.1%
Phantom-designed sensor
CXP-over-Fibre technology

The Phantom S641 Machine Vision supports cutting-edge machine vision applications with up to 6 Gpx/sec throughput and many ease-of-use and efficiency features. Two simple, easy-to-use fibre cables carry up to 48 Gbps of images and data to frame grabbers. The S641 also accommodates high frame rate applications that require just one 40 Gbps fibre cable, for added simplicity.

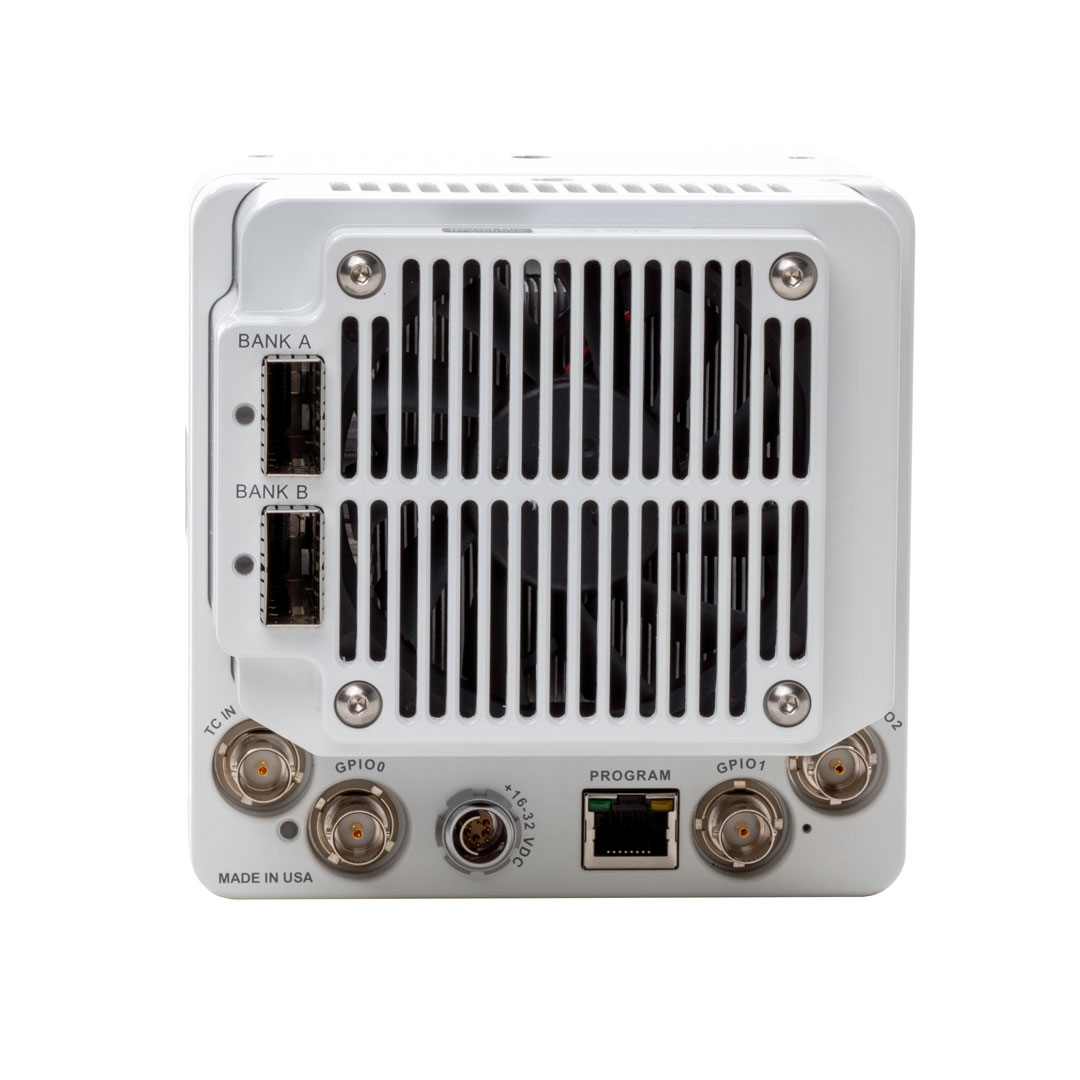

Two Regions of Interest (ROI) are available, increasing efficiency and flexibility. A mechanical shutter and EOS lens compatibility allow remote black referencing and focus control to improve image quality. The Phantom S641 Machine Vision also comes with GPIO ports for Trigger and signalling.
