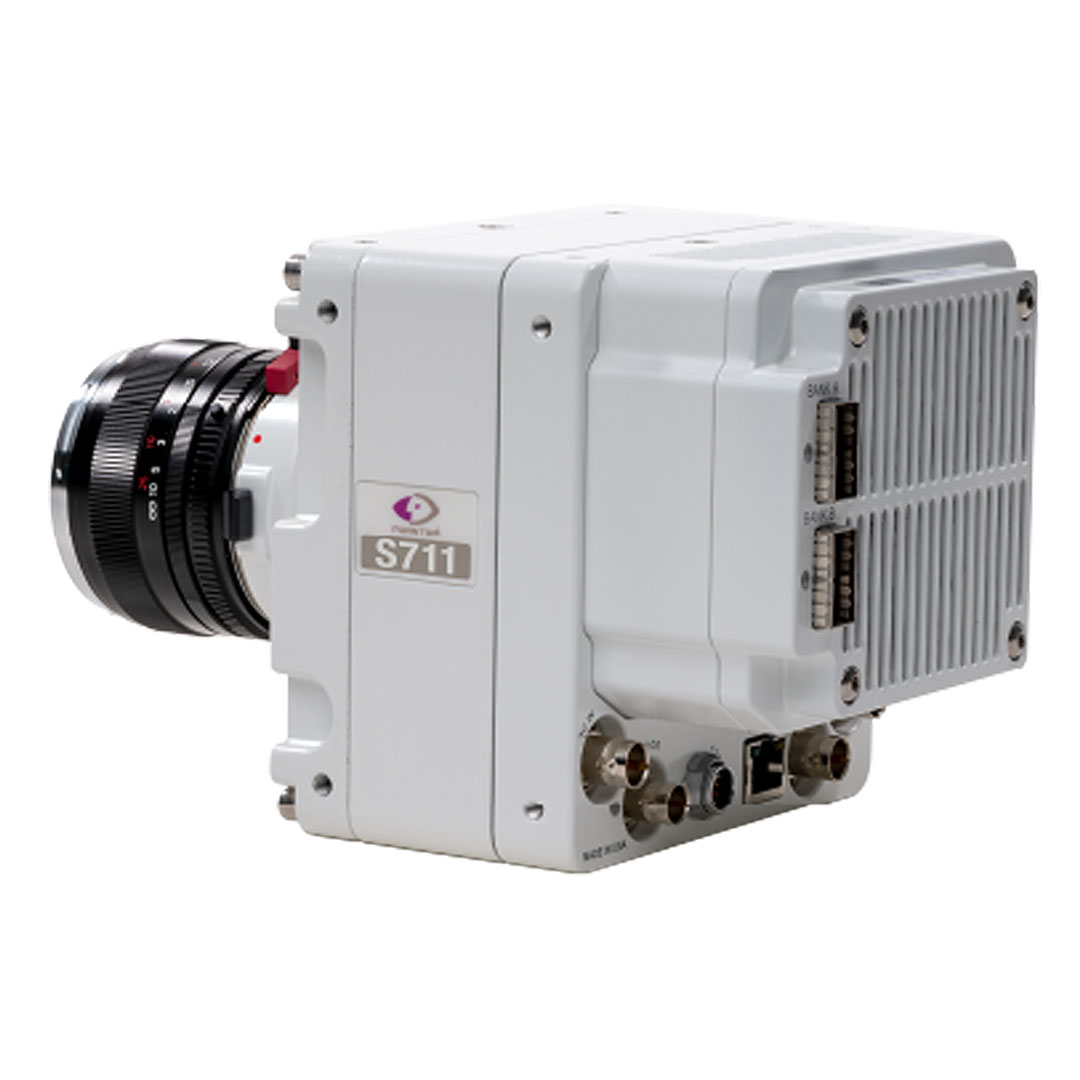

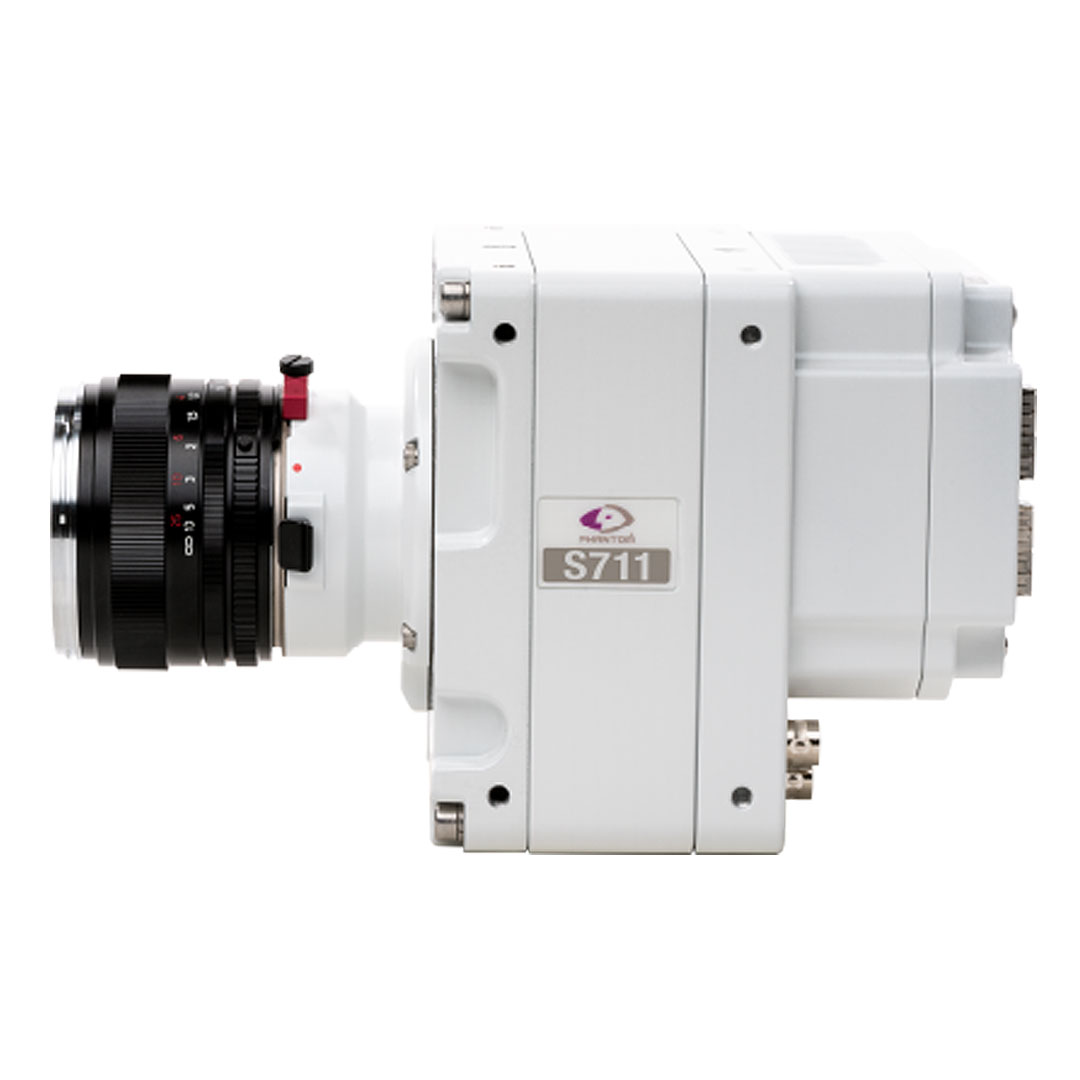

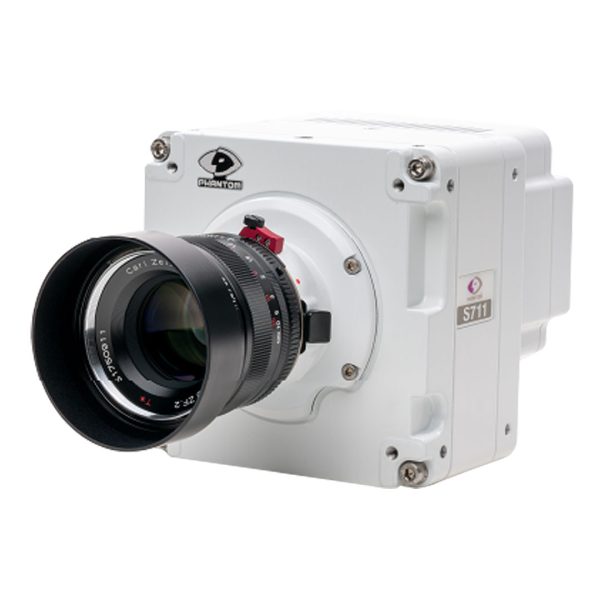

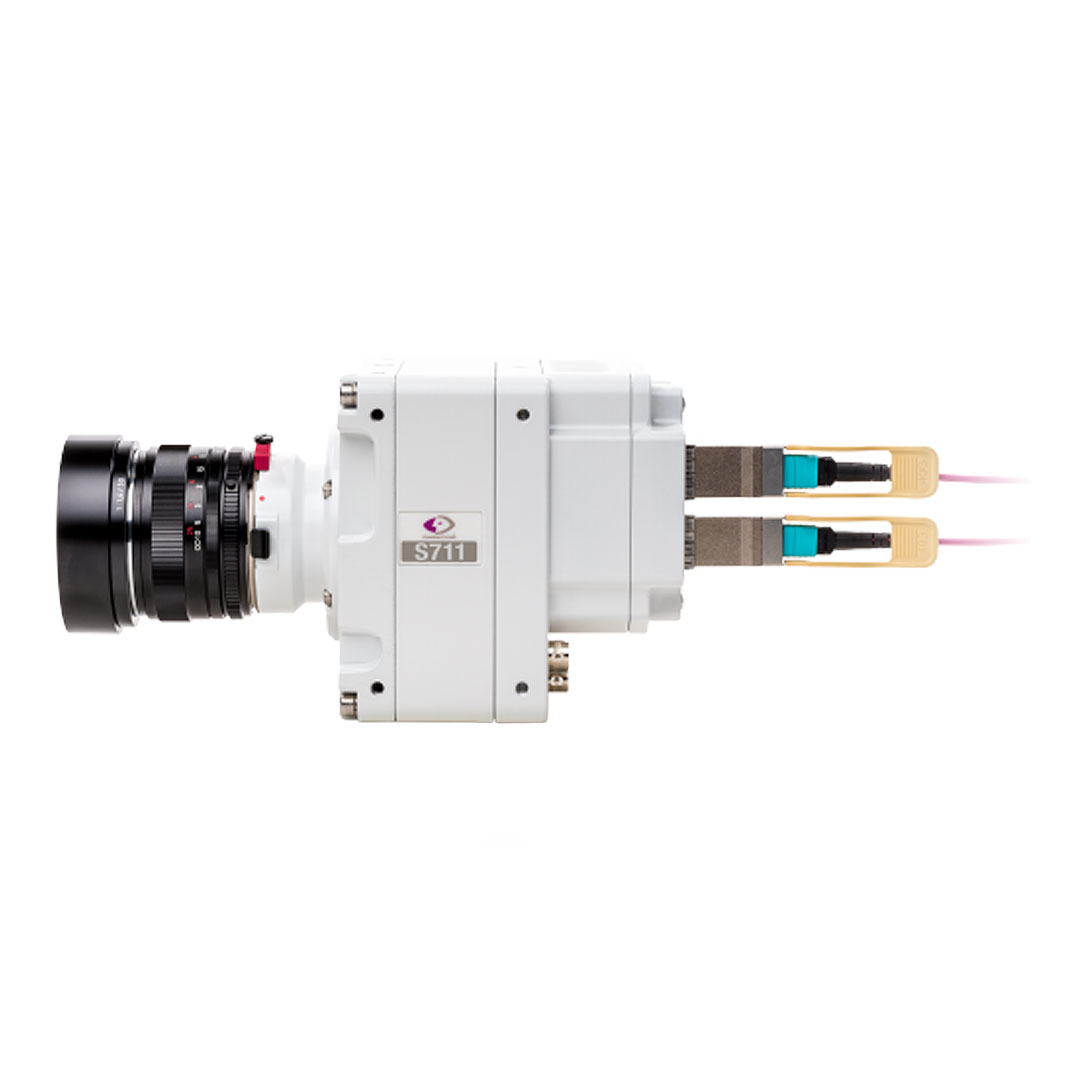

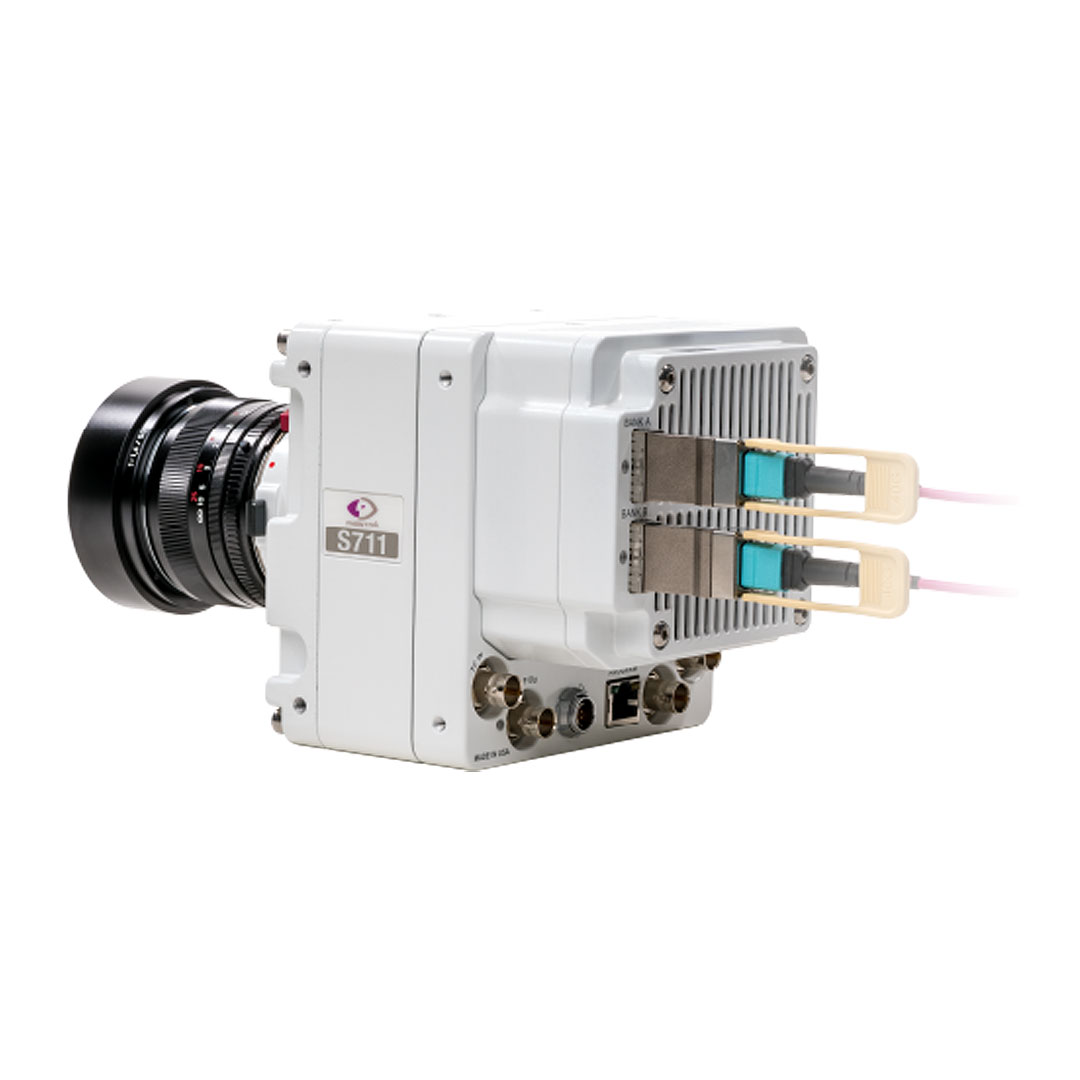

Phantom S711 Machine Vision High-Speed Camera

The Phantom S711 Machine Vision camera provides up to 7 Gpx/sec (87.5 Gbps) of data throughput for Machine Vision applications.  It leverages the performance and extremely high frame rates of the VEO 710 to Machine Vision applications via the CXP6 protocol.

  • 7,275 fps at 1280 x 800
  • 1 µs exposure, 300 ns with FAST option
  • 8 and 12-bit, selectable
  • GenICam protocol compliant

The Phantom S711 Machine Vision reaches 7,270 fps at a full 1 Mpx resolution of 1280 x 800, and higher frame rates at reduced resolutions. This powerful machine vision camera leverages the proven VEO 711 sensor and combines it with standard machine vision protocols, CXP6 and GenICam.

The Phantom S711 Machine Vision high-speed camera features such as GPIO for the trigger, event, memgate, strobe, and ready signals ensure the camera is able to capture images as needed over both short- and long-term recording durations.  Time code in/out stamping is available directly on image frames to provide accurate and reliable data during machine analysis.

Key Features:
  • 1 Mpx sensor with 20 µm pixels
  • Data streams in up to 2 Gpx/sec,  4 Gpx/sec,  7 Gpx/sec
  • Streams into either 4-port or 8-port Frame Grabbers
  • Record to DVR for long record time applications
  • Mechanical Shutter for remote black reference
  • GPIO for trigger and signalling
  • Data conservation through reduced resolutions and 8-bit selection
What’s in the box?
  • Power supply with XLR extender
