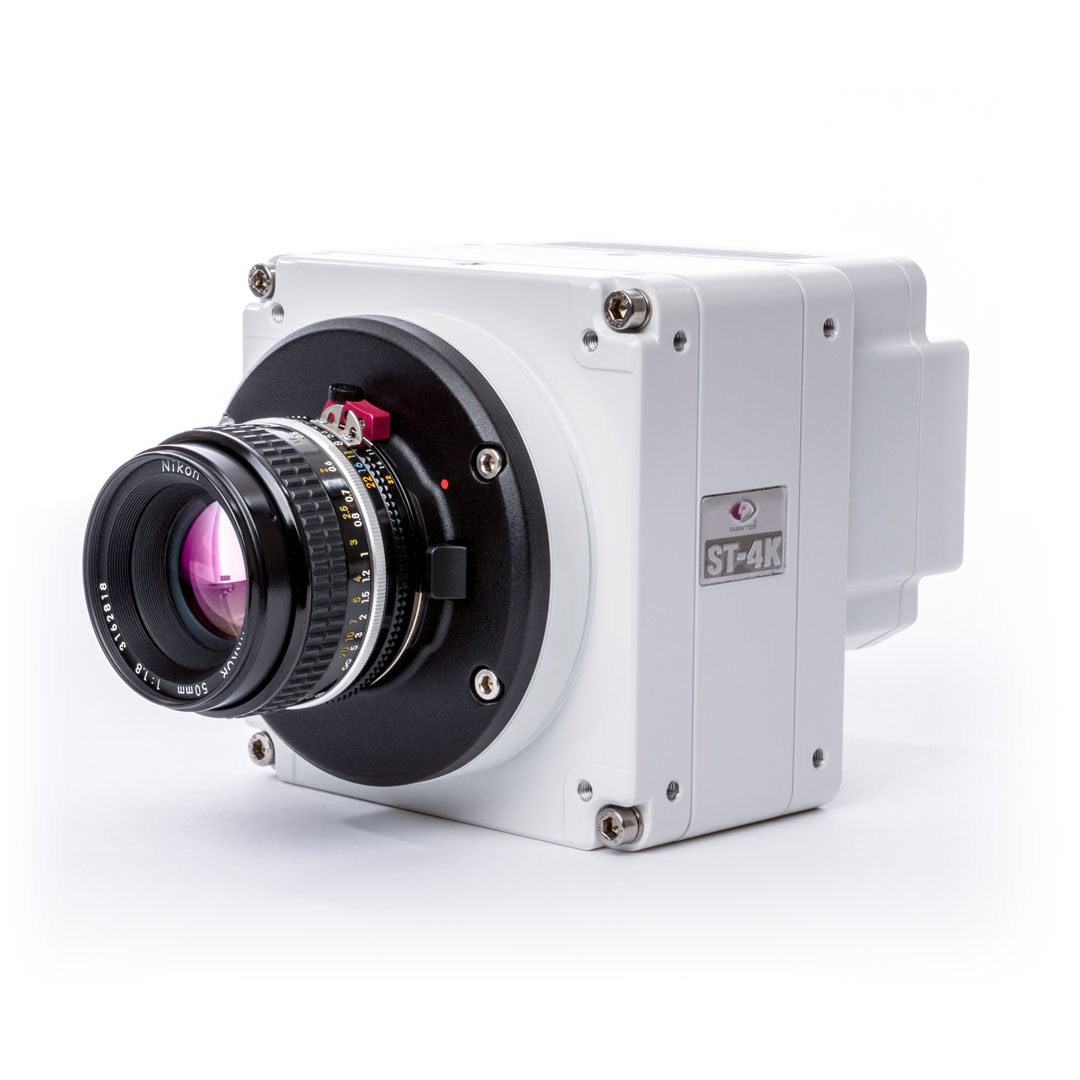

Phantom S991 Machine Vision High-Speed Camera

The Phantom S991 delivers 9 Gpx/sec (70 Gbps) of throughput and the power of the Phantom Flex 4K sensor with CXP-over-fibre technology for extreme high-speed imaging.

  • Up to 937 fps at 4096 x 2304 (8 bit)
  • Sensitivity: Quantum Efficiency*
    • Colour: 48.3% (Rolling Shutter)
  • 6.75 micron pixel size
  • User-friendly CXP-over-fibre technology

The Phantom S991 Machine Vision builds on the industry-leading technology of the S990 by incorporating fibre cables for data transfer.  The two fibre cables are easy to connect and can carry up to 70 Gbps of images and data to the frame grabbers.  This significantly improves setup and ease of use.

Imaging flexibility is enhanced through adjustable capacity settings.  Using just 1 fibre cable for 1/2 capacity operation (4 Gpx/sec), the Phantom S991 Machine Vision allows researchers to achieve full frame rates at smaller resolutions. While full capacity operation (8 Gpx/sec) offers large to maximum resolution for highly detailed imaging.

CXP-over-fibre delivers immediately accessible imaging in a simple process by dividing it between two frame grabbers and then stitching them back together. The image is then stitched back together for fast algorithm application, which means no waiting to download data to apply critical decision-making algorithms.

Key Features:

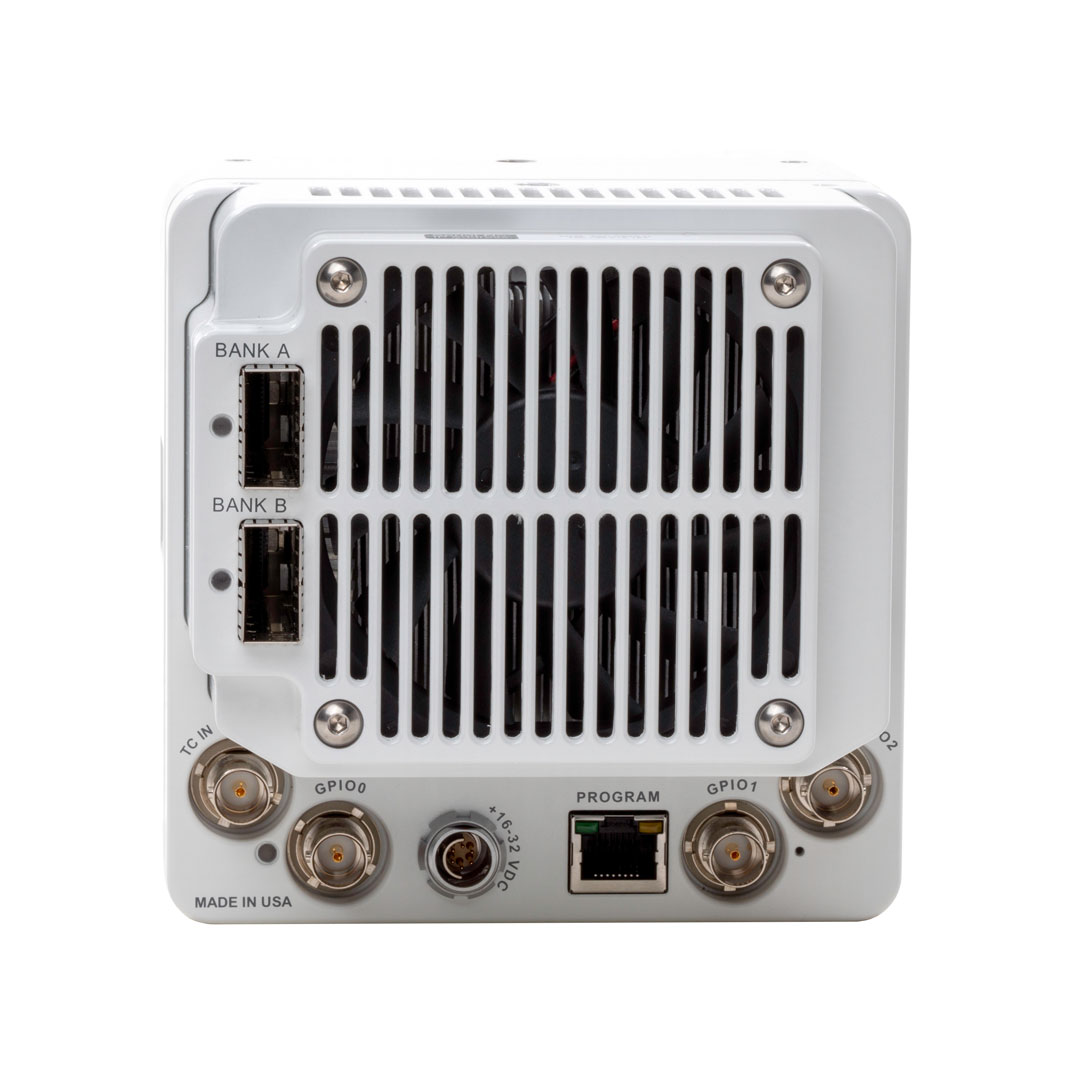

  • 2 fibre cables with CXP12
  • Standard CXP 2.0 and GenICam protocols
  • Up to over 72,000 FPS

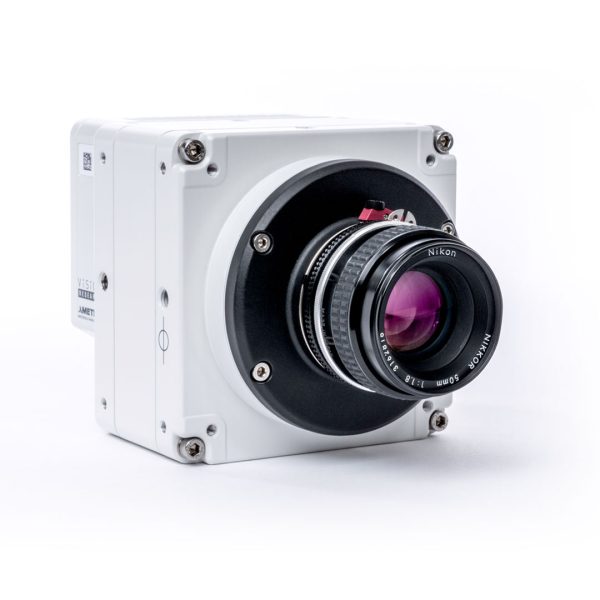

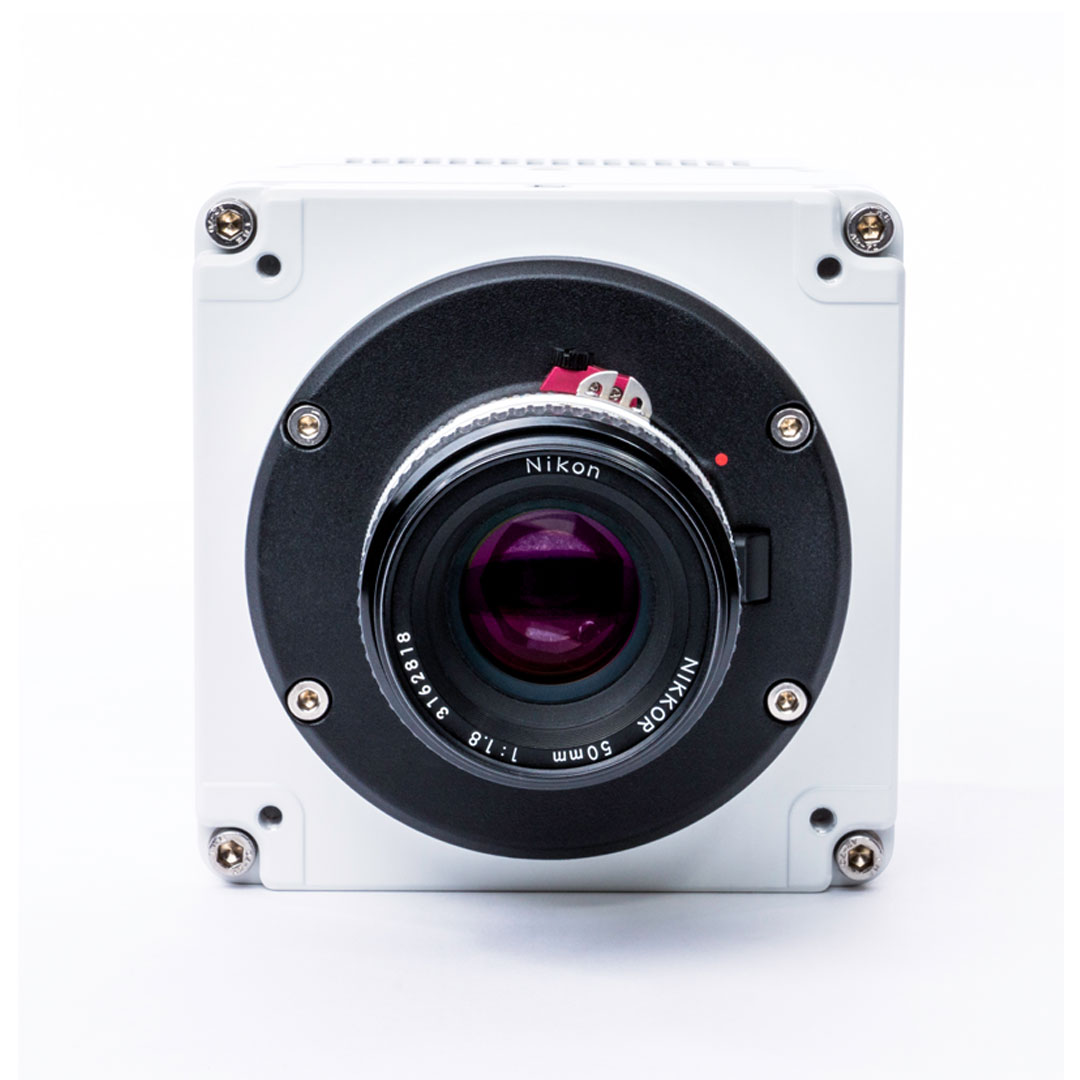

  • Interchangeable lens mounts: Nikon, PL, C, and Canon EOS
  • Available in colour only
What’s in the box?
  • 80 W Power supply with XLR extender
