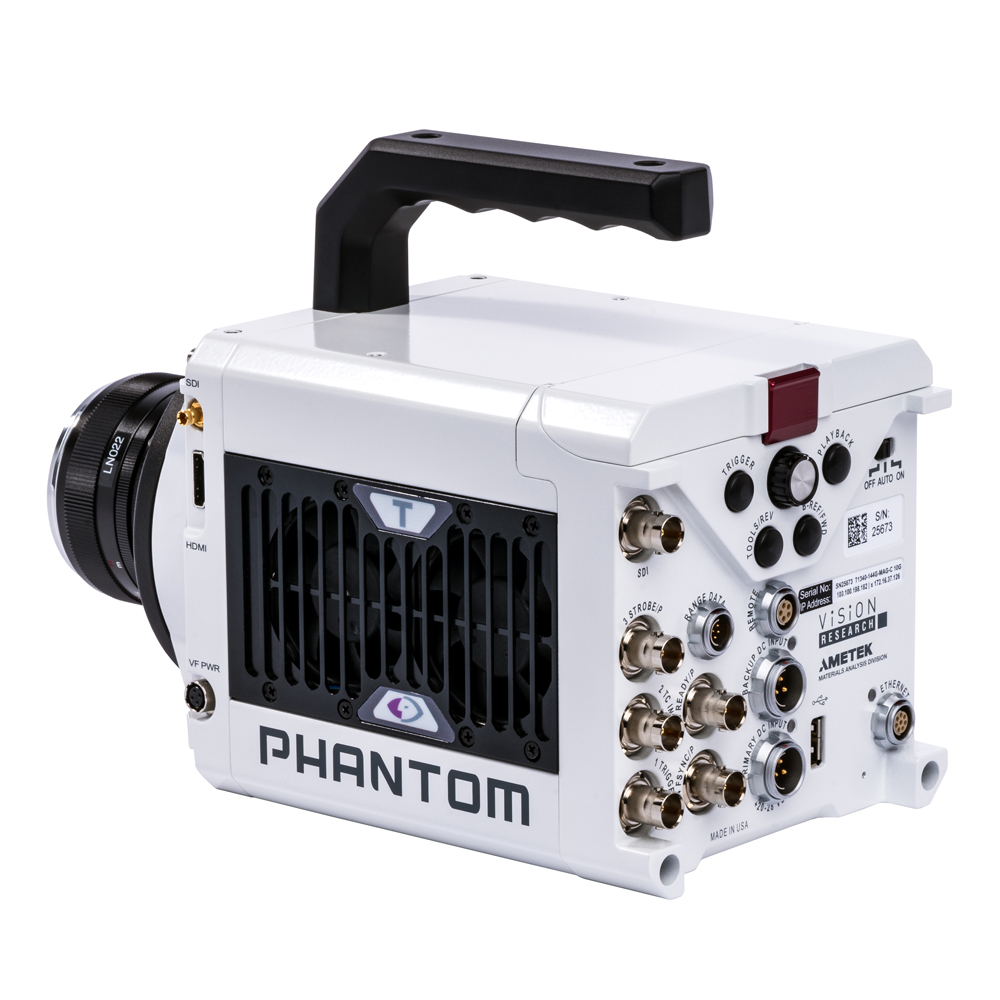

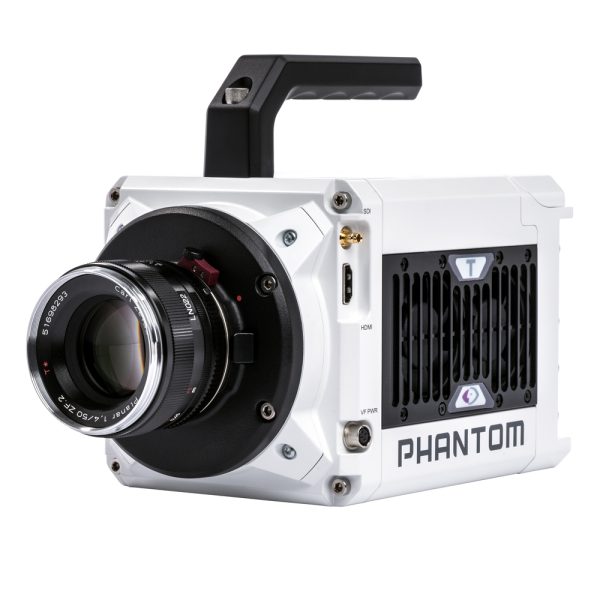

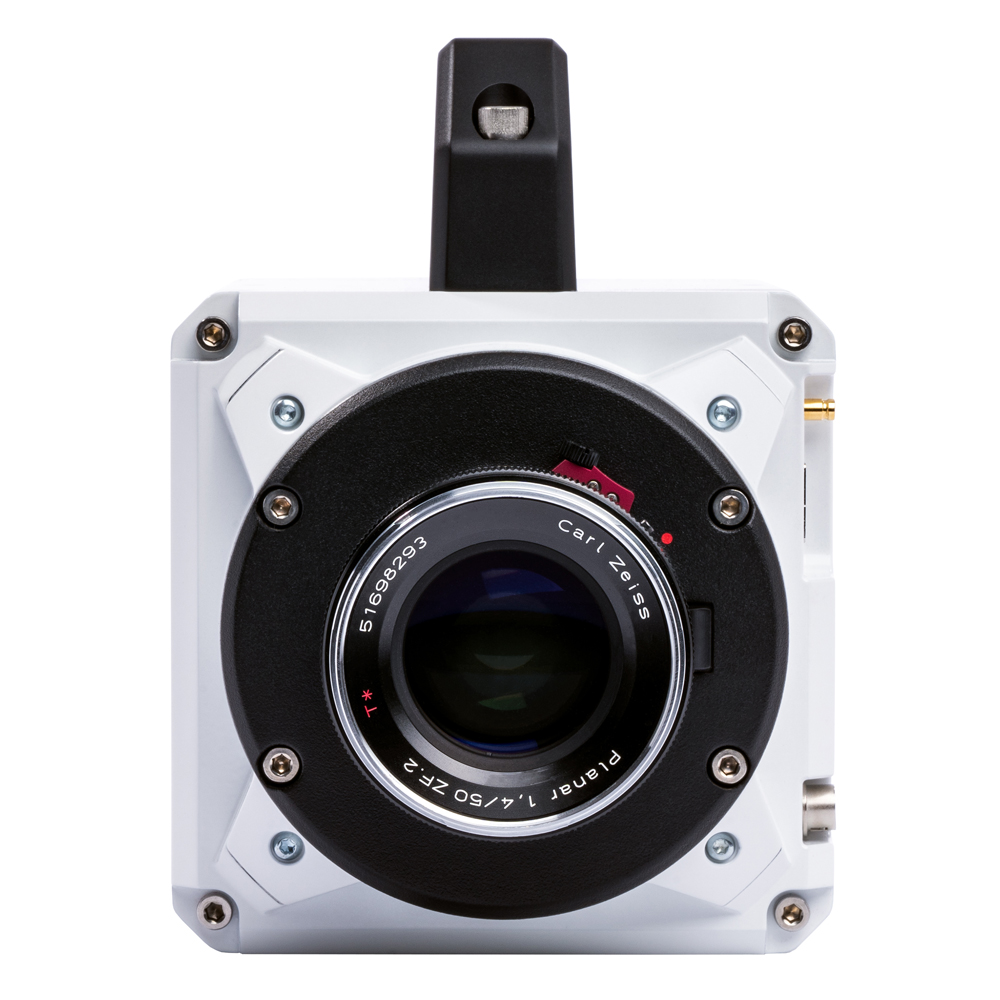

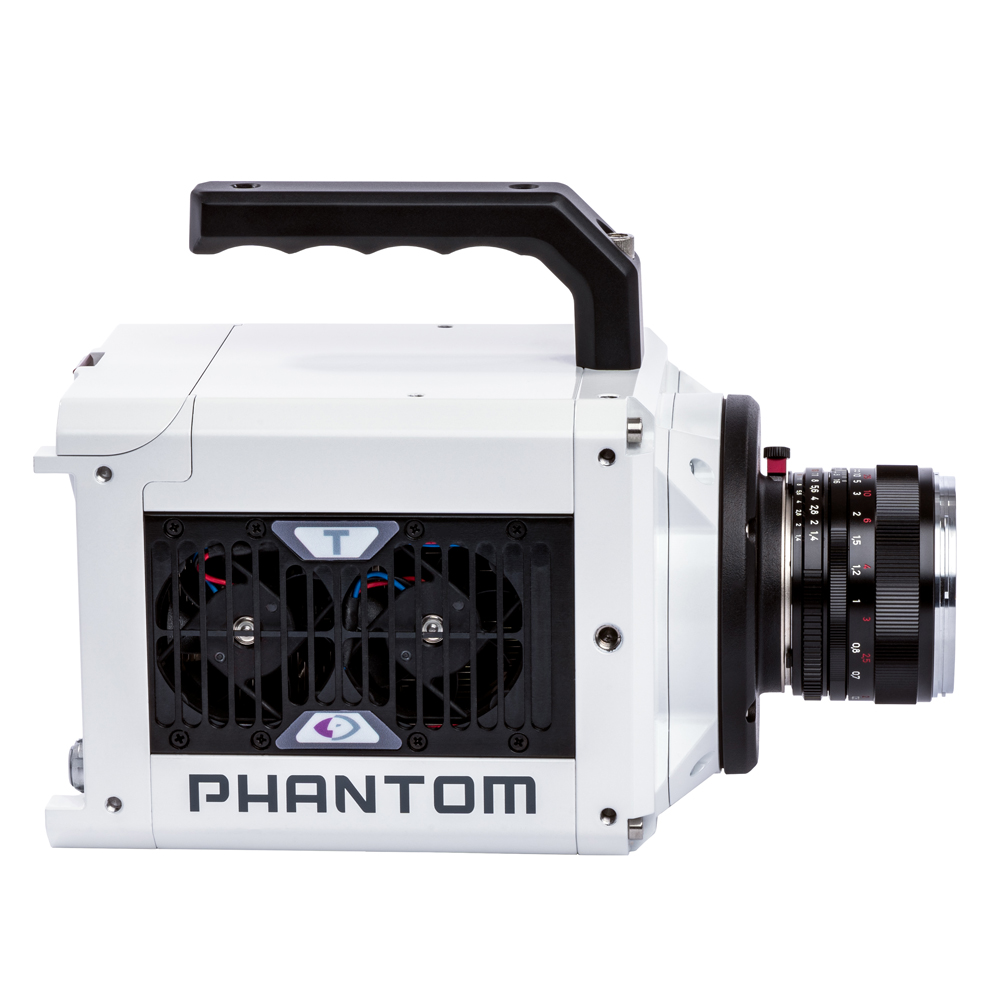

Phantom T2110 T-Series High-Speed Camera

The Phantom T2110 High-Speed Camera is a compact, versatile system that captures over 21,000 fps at 1 Mpx, all the way up to 483,330 fps at 640 x 64. It is equipped with a proprietary 12-bit 1280 x 800 backside illuminated (BSI) sensor, supporting an impressive image throughput of 21 gigapixels per second (Gpx/s) for challenging low-light conditions.

  • 21,000 fps at 1280 x 800
  • Sensitivity: Quantum Efficiency
    • 84.3% (mono)
    • 83% (binned)
    • 77% (color)
  • Up to 256GB RAM
  • FAST option for 190ns exposure

The Phantom T2110 High-Speed is a compact, versatile camera that captures over 21,000 fps at 1 Mpx, all the way up to 483,330 fps at 640 x 64. It is equipped with a proprietary 12-bit 1280 x 800 backside illuminated (BSI) sensor, supporting an impressive image throughput of 21 gigapixels per second (Gpx/s) for challenging low-light conditions.

Overview
  • The Phantom T2110 camera captures over 21,000 fps at 1-Mpx and up to 483,330 at reduced resolution.
  • Binned mode combines pixels for higher frame rates at 640 x 384 and below.
  • ‘FAST’ option is available for exposure times down to 190 ns
  • UV-extended and CineMag-compatible options are available
Throughput/Speed
  • 21 Gpx/second
  • Standard Mode Max Speeds:
    • 1280 x 800 21,010 fps (full resolution)
    • 1280 x 32 483,330 fps
  • Binned Mode Max Speeds:
    • 640 x 384 86,560 fps (full binned resolution)
    • 640 x 64 483,330 fps
  • Minimum Frame rate is 100 fps
Sensor Specifications
  • CMOS Back Side Illuminated (BSI) Sensor
  • Colour, Monochrome, or UV-extended options
  • 1280 x 800 pixels
  • 18.5 µm pixel size, 37 µm with binning enabled
  • 23.7 mm x 14.8 mm; 27.94mm diagonal
  • 12-bit depth
  • CAR in 256 x 32 increments, 128 x 64 in Binned modes
The Phantom T2110 High-Speed is designed for a wide range of motion analysis research applications. The custom BSI sensor provides several benefits, including 84.3 QExFF (mono) and 40 dB signal-to-noise ratio (SNR), which translates to excellent image performance even in difficult conditions for scientific research.

The T2110 includes premium features to enable a variety of applications, such as:

  • Programmable I/O to assign and modify the hardware signal interface for advanced synchronisation. Users can interface with data acquisition (DAQ) systems and other measurement sensors, which can be recorded and viewed as metadata in Cine files.
  • Extreme Dynamic Range (EDR) provides flash mitigation for ballistic studies by dynamically adjusting exposure in saturated image areas.
  • The option for a fully automated workflow when using image-based auto-trigger (IBAT), combined with multi-Cine partitions and continuous recording in PCC.
Key Features
  • Binning Mode – frame rate boost at 640 x 384 and below

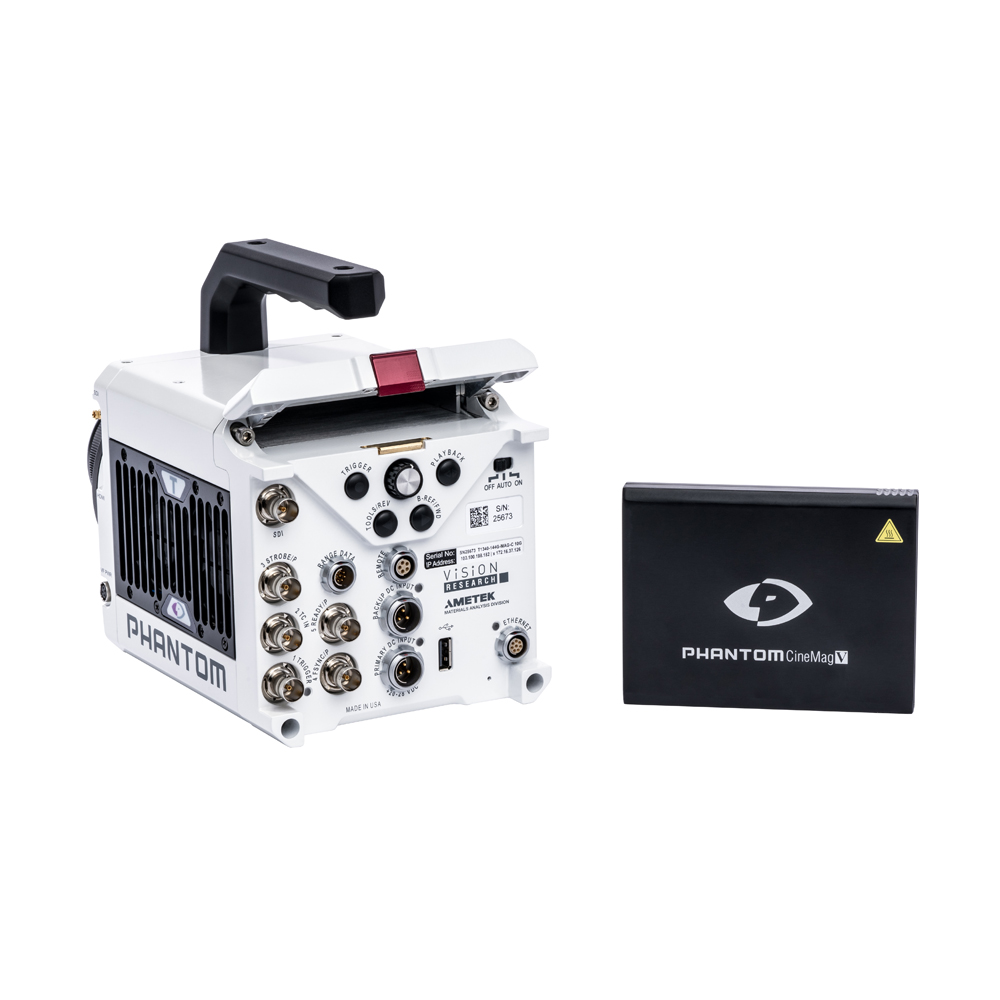

  • CineMag 5 Compatibility
  • SDI and micro HDMI video outputs

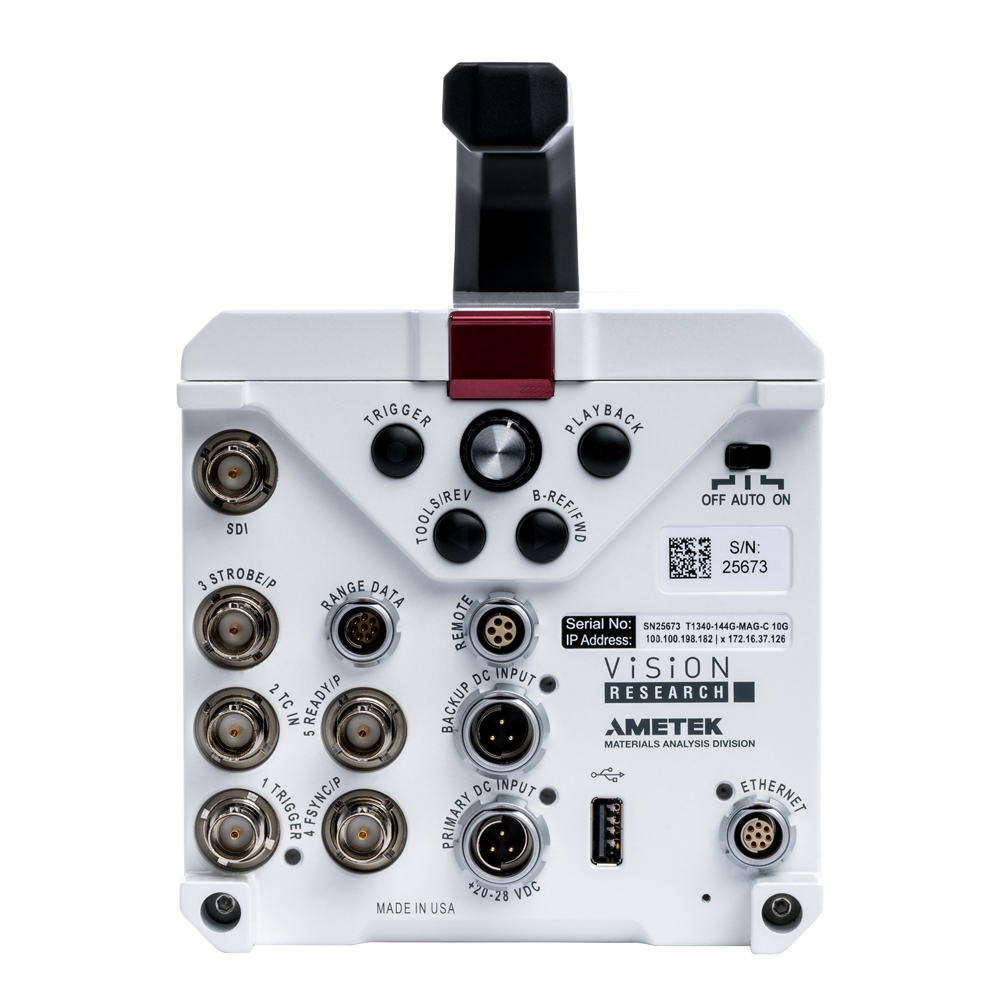

  • Programmable I/O – Assign and define camera signals

What’s in the box?
  • 280W Power supply with XLR extender
  • Ethernet Cable
  • Mini-SDI video cable

*Printed Manual and PCC Software CD available upon request.
