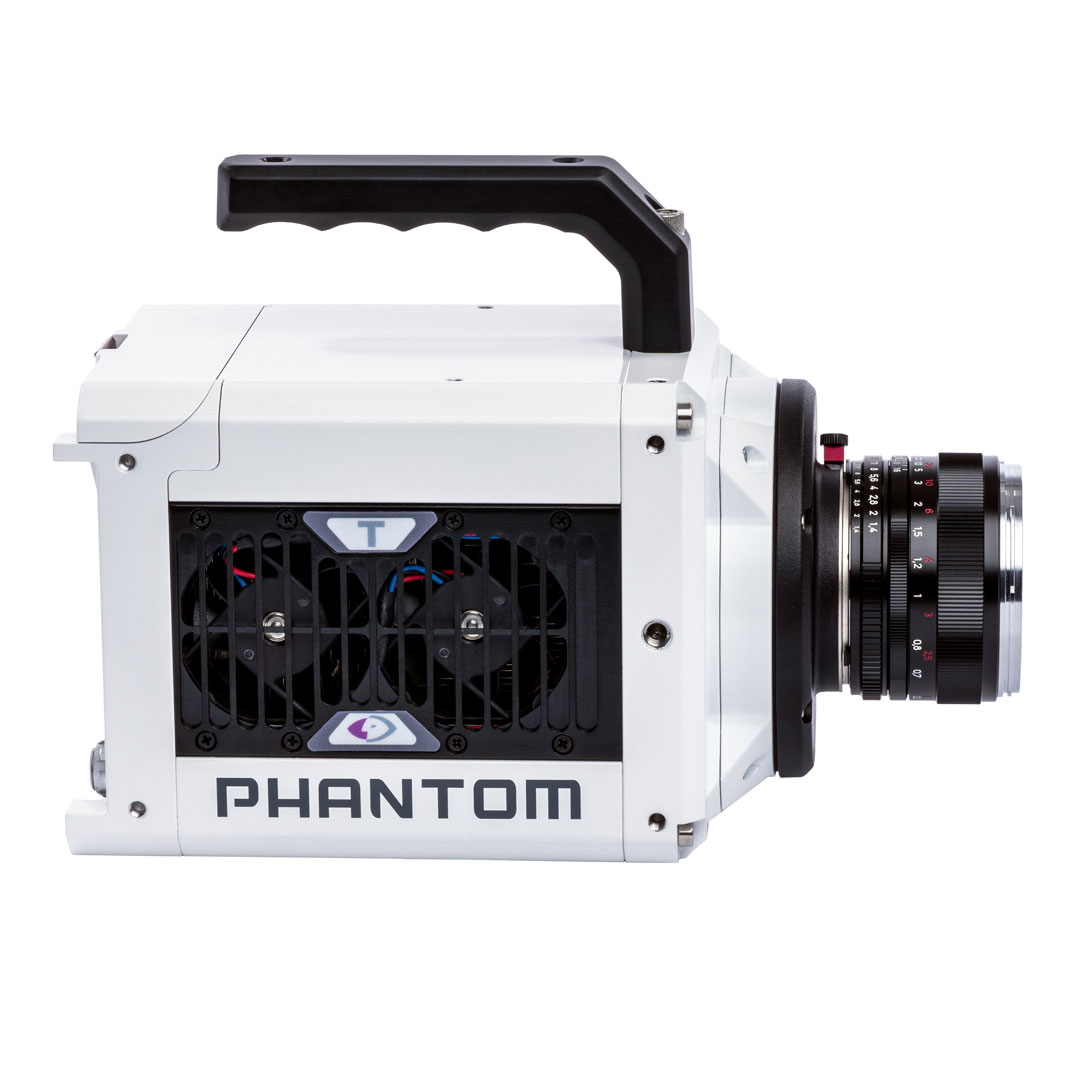

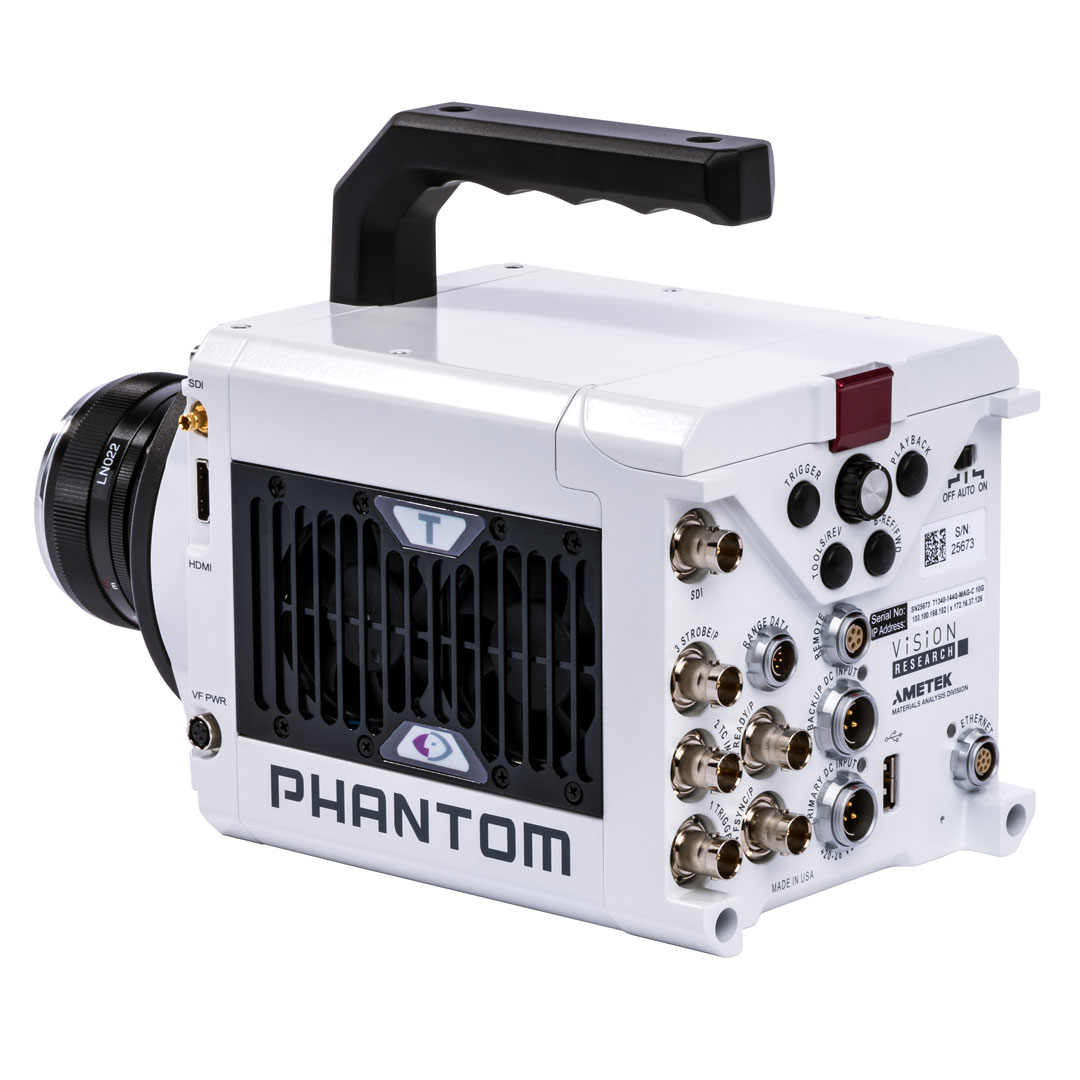

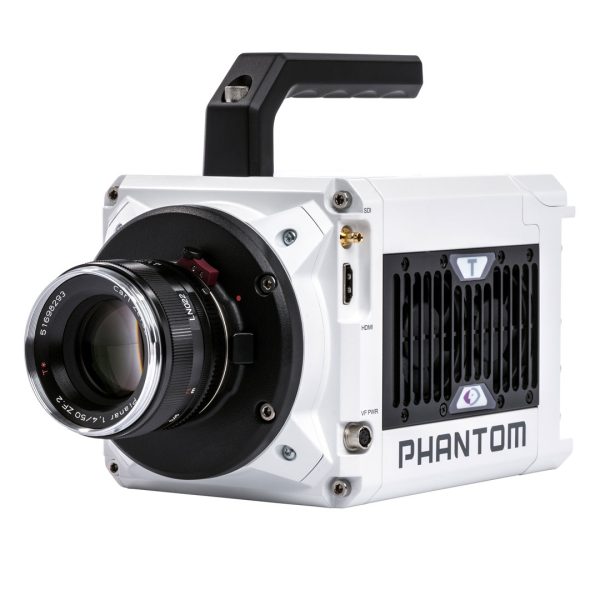

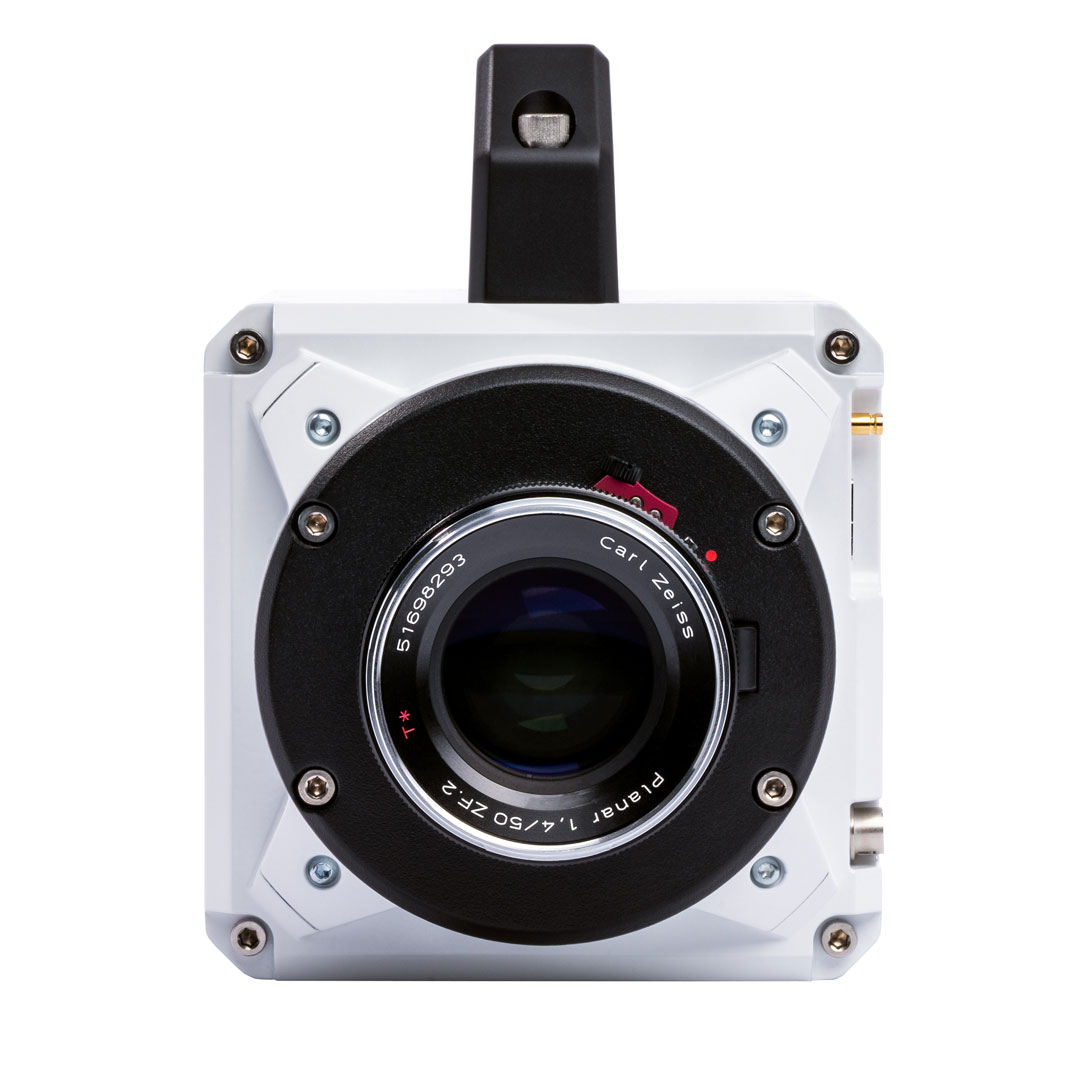

The Phantom T2410 is a 24 Gpx/s throughput camera ideal for material research, industrial product testing and high-speed motion analysis. The T-Series platform is designed to perform imaging techniques like digital image correlation when using advanced optics. The custom BSI sensor delivers fast exposures, and with a quantum efficiency rating of 80.3% (QExFF mono), can shoot in environments with limited supplemental light. Binned mode combines pixels 2X2 – this is a key feature for increased vertical resolution at the camera’s top frame rates. Binning is available on mono and colour cameras; however, the output will switch to mono when used on a colour camera.
The Phantom T2410 includes premium features to enable a variety of applications, including:
- EDR (Extreme Dynamic Range) provides flash mitigation for ballistic studies by dynamically adjusting exposure in saturated areas of the image.
- Programmable I/O to interface with DAQ systems and a variety of measurement sensors, which can be recorded and viewed as metadata in Cine files.

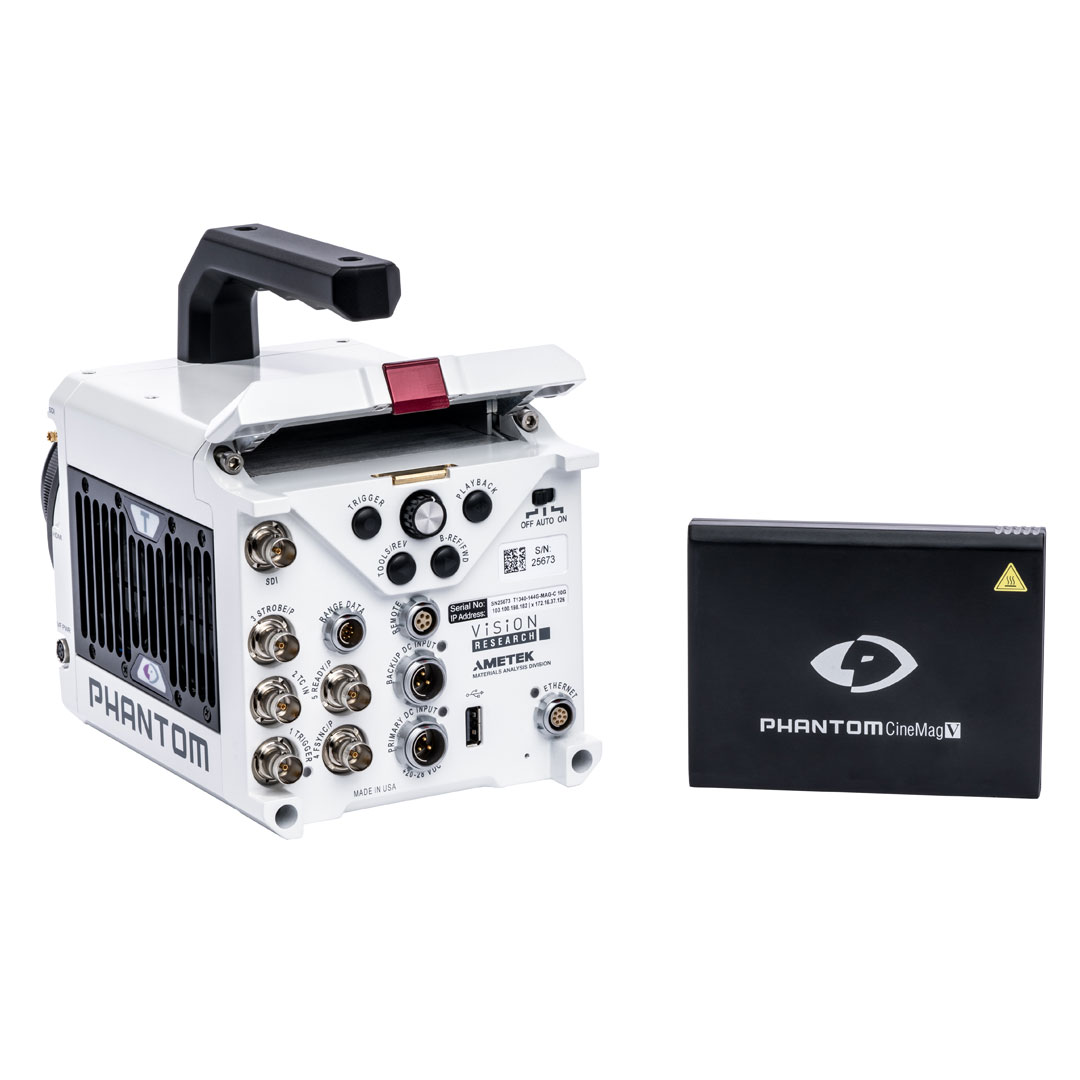

- Remote, standalone operation is achieved by using the on-camera controls, video monitor and CineMag.
Key Features
- Binning Mode – frame rate boost at 640 x 384 and below
- CineMag 5 Compatibility
- SDI and micro HDMI video outputs

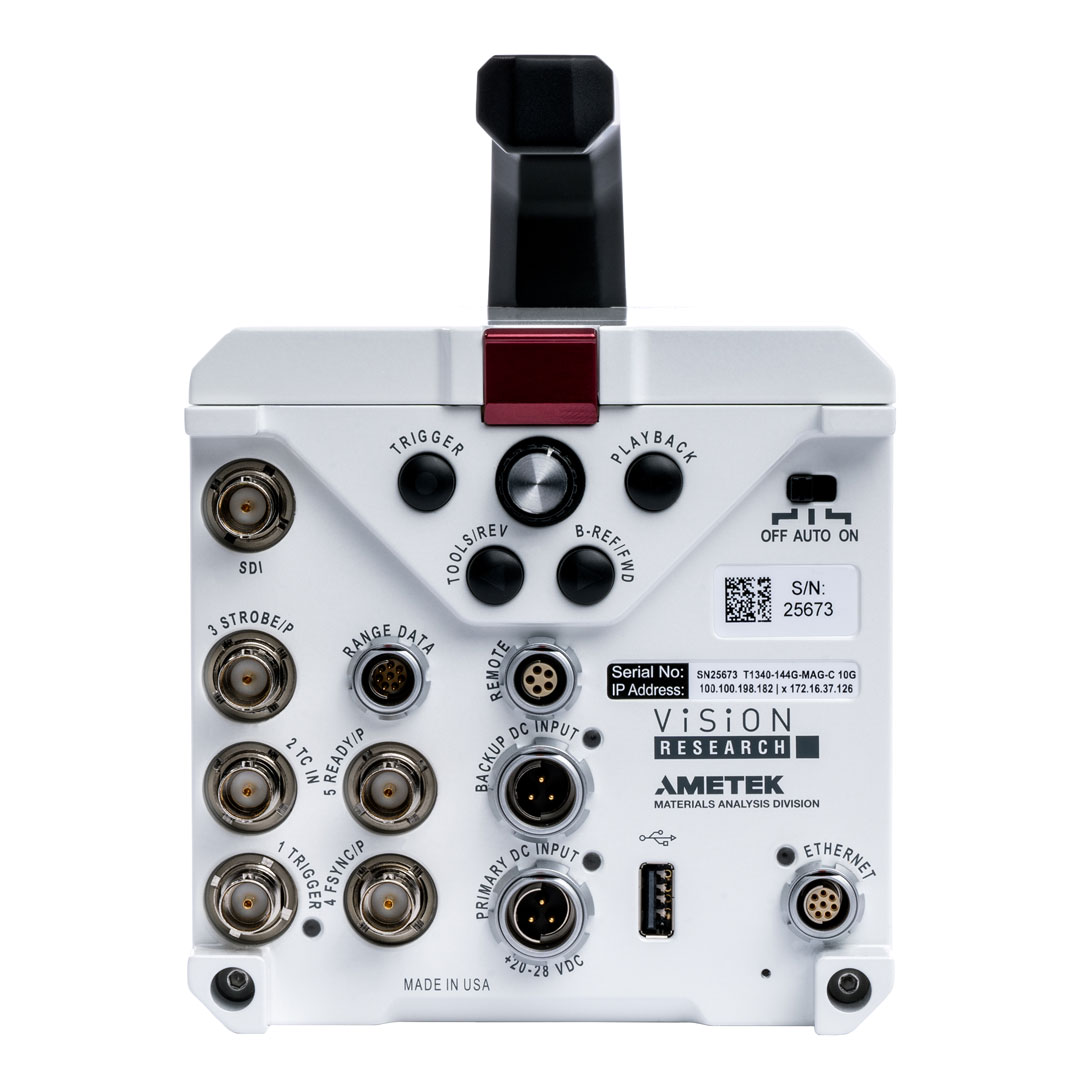

- Programmable I/O – Assign and define camera signals
What’s in the box?
- 280W Power supply with XLR extender
- Ethernet Cable
- Mini-SDI video cable
