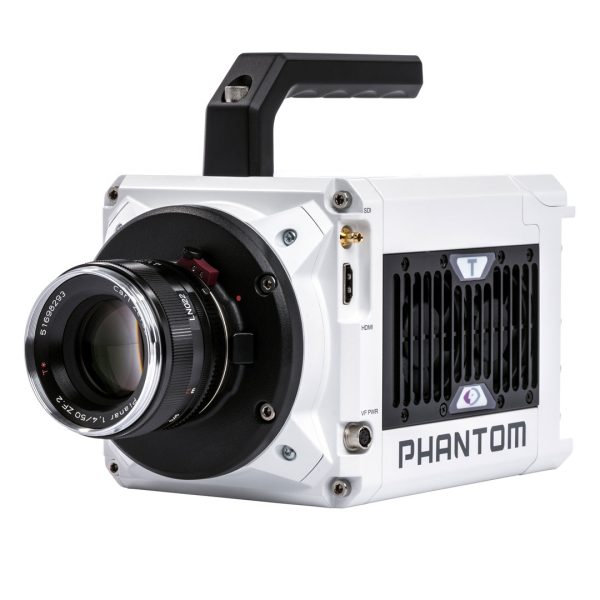

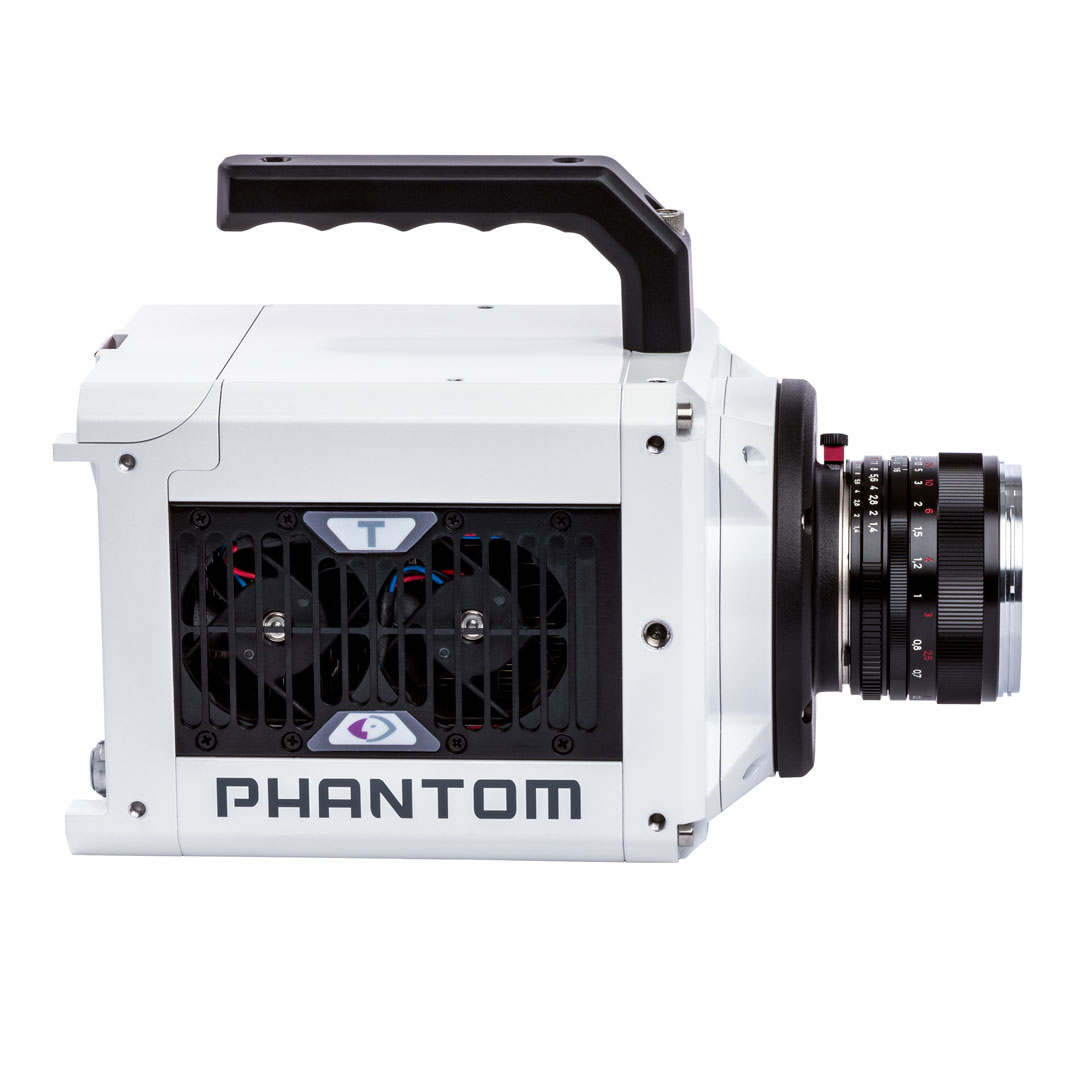

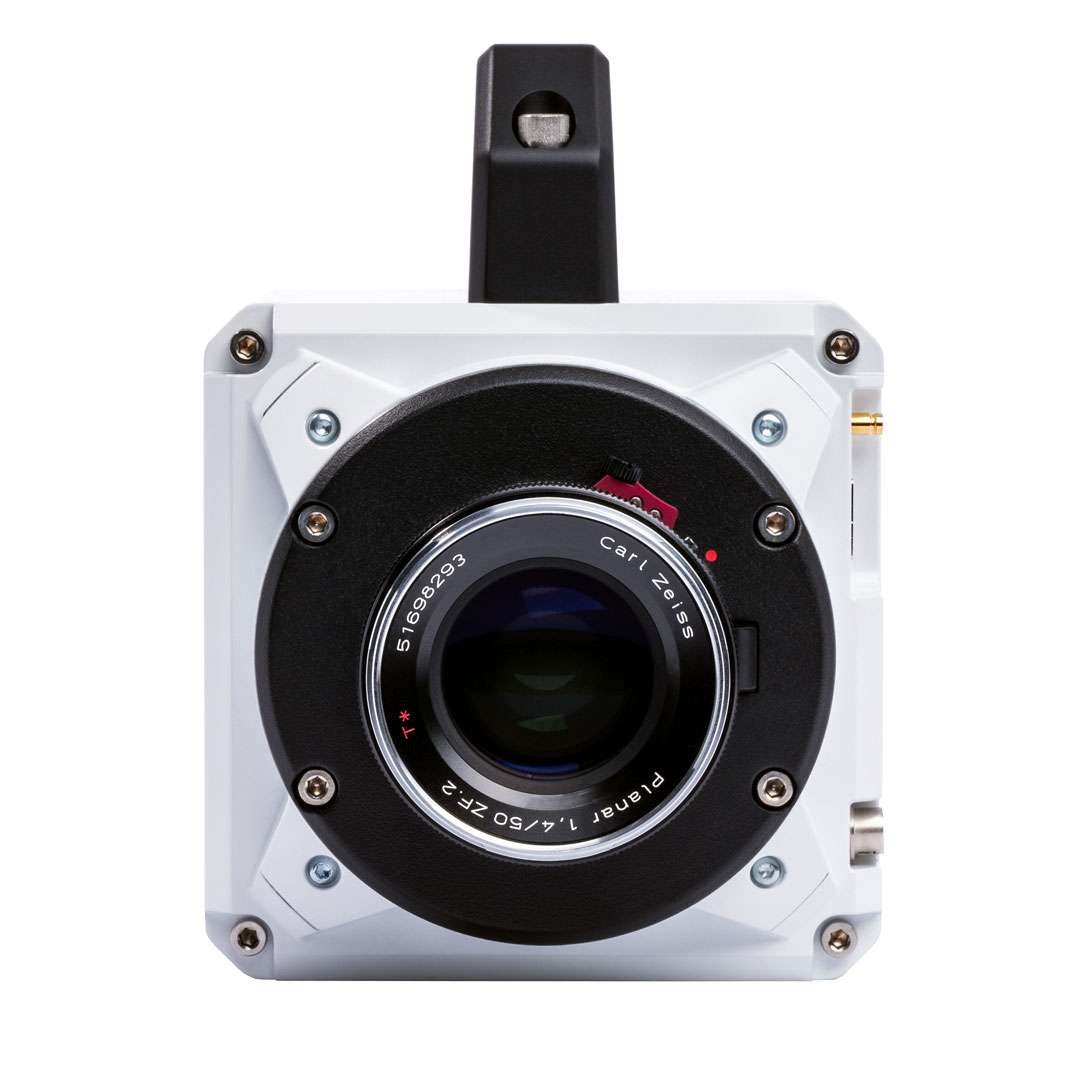

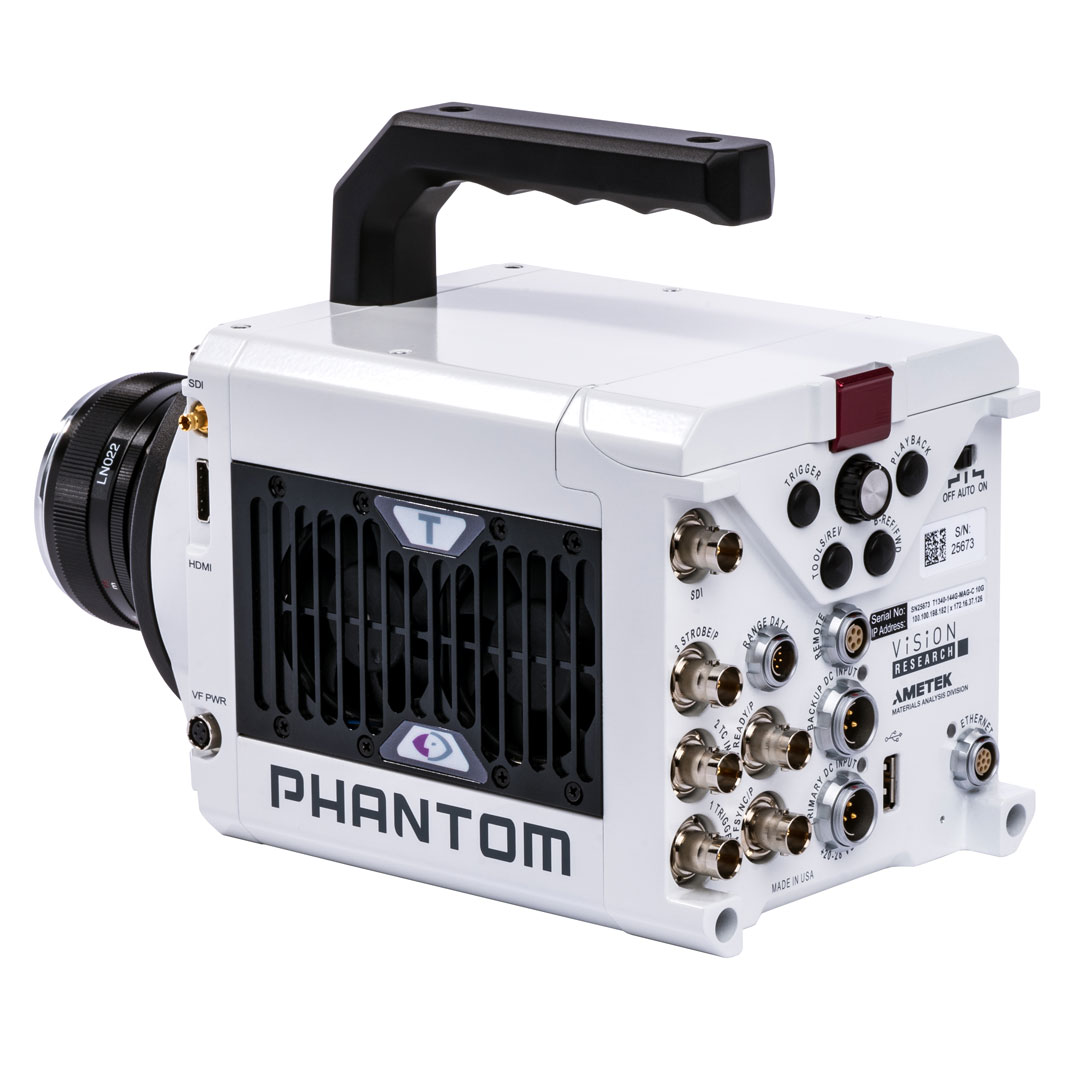

Phantom T2540 T-Series High-Speed Camera

The T2540 is a 4.2 Mpx high-speed camera at 25Gpx/s throughput. The compact size and advanced workflow features make this camera ideal for advanced motion analysis in any environment.

  • 5,840 fps at 2560 x 1664
  • Sensitivity: Quantum Efficiency*
    • Mono: 85.4%; Binned 82.4%
    • Colour: 71%
  • 64, 128, 256GB RAM
  • FAST option*, 250ns min. exposure

The Phantom T2540 delivers the imaging power of the T4040 at 25Gpx/s for 5840 fps at full resolution. A peak Quantum Efficiency rating above 90% ensures the sensor’s ability to capture images at low light levels.

A major benefit of the Phantom T2540’s 4 Mpx imaging is increased accuracy for tracking algorithms versus traditional 1 Mpx high-speed images. The greater pixel resolution is well suited for techniques like Digital Image Correlation (DIC) and impact studies, which help ensure an accurate rendition of particle movement and shape.

The Phantom T2540 includes premium features to enable a variety of applications, including:

  • Binned mode combines pixels to increase the vertical resolution of the camera’s top frame rates at 1MPX and below. Available for colour and mono, but the output will switch to mono on a colour camera.
  • EDR (Extreme Dynamic Range) provides mitigation for bright flashes by dynamically adjusting exposure in saturated areas of the image.
  • Programmable I/O to interface with DAQ systems and a variety of measurement sensors, which can be recorded and viewed as metadata in Cine files.

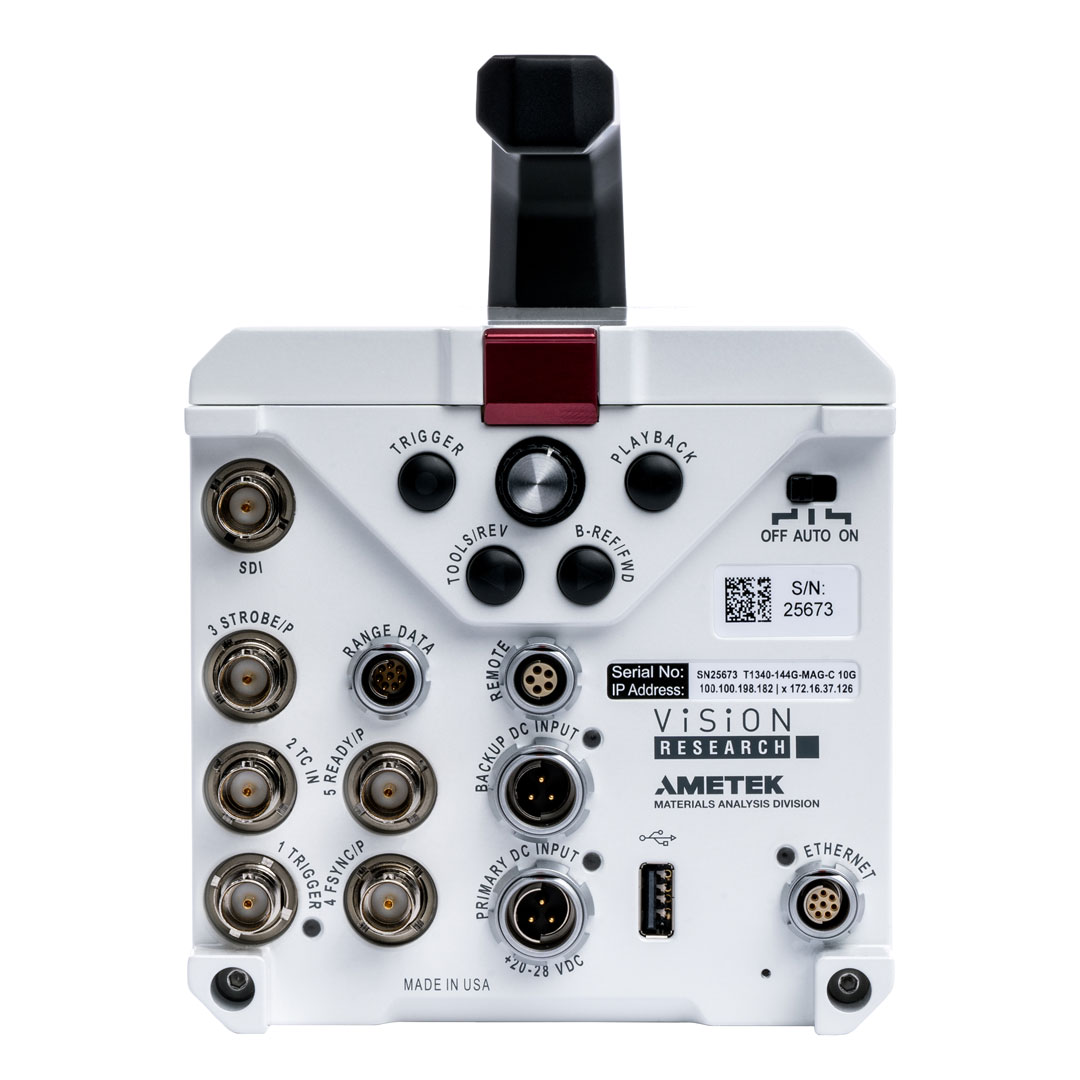

  • On-camera controls, video output and CineMag are available for remote, standalone operation.
Key Features
  • Binning Mode – frame rate boost at 1280 x 832 and below

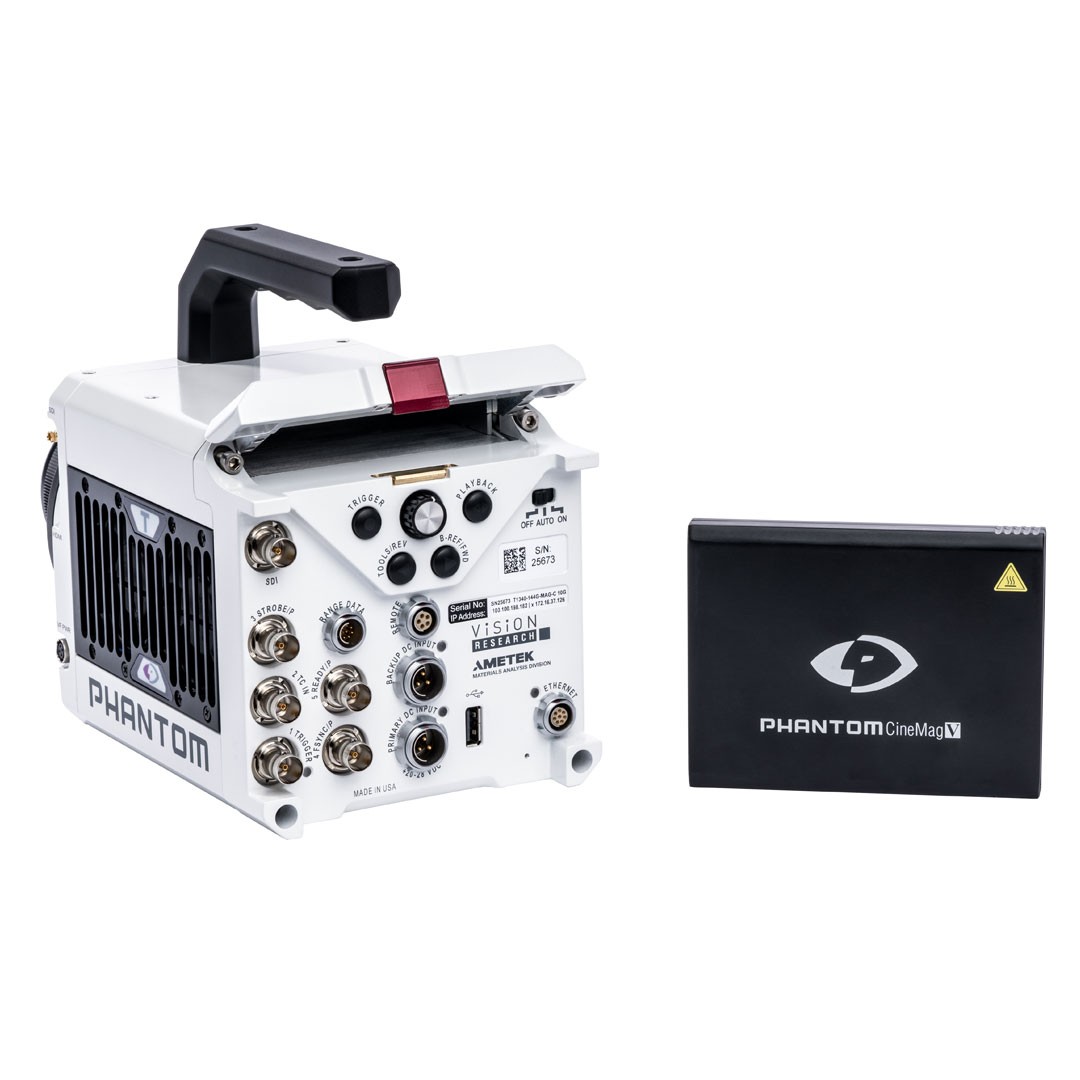

  • CineMag Compatibility
  • SDI and HDMI video outputs
  • Programmable I/O – Assign and define camera signals
  • 10Gb Ethernet Included
What’s in the box?
  • 280W Power supply with XLR extender
  • Ethernet Cable
  • Mini-SDI video cable
  • Printed Manual and PCC Software CD available upon request
