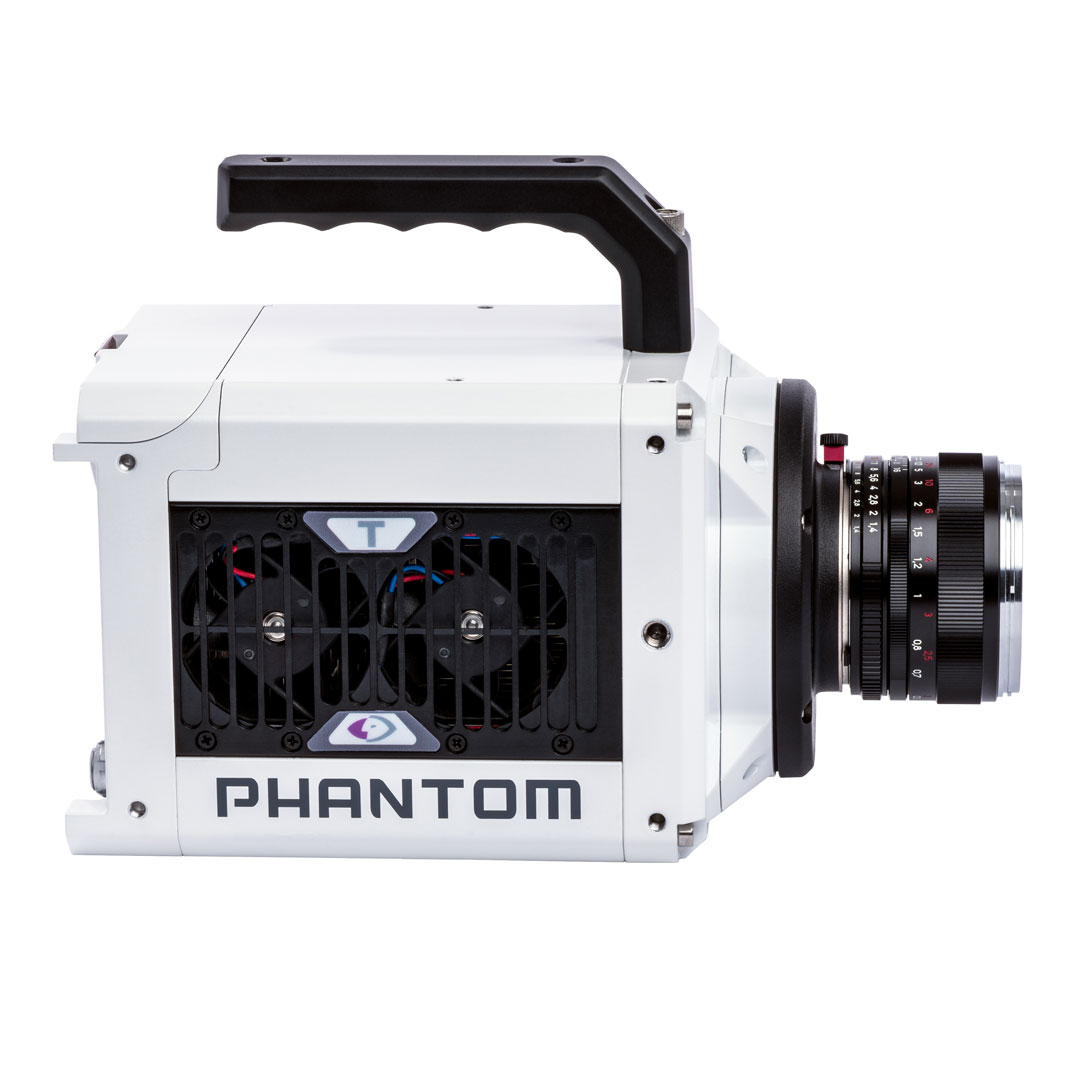

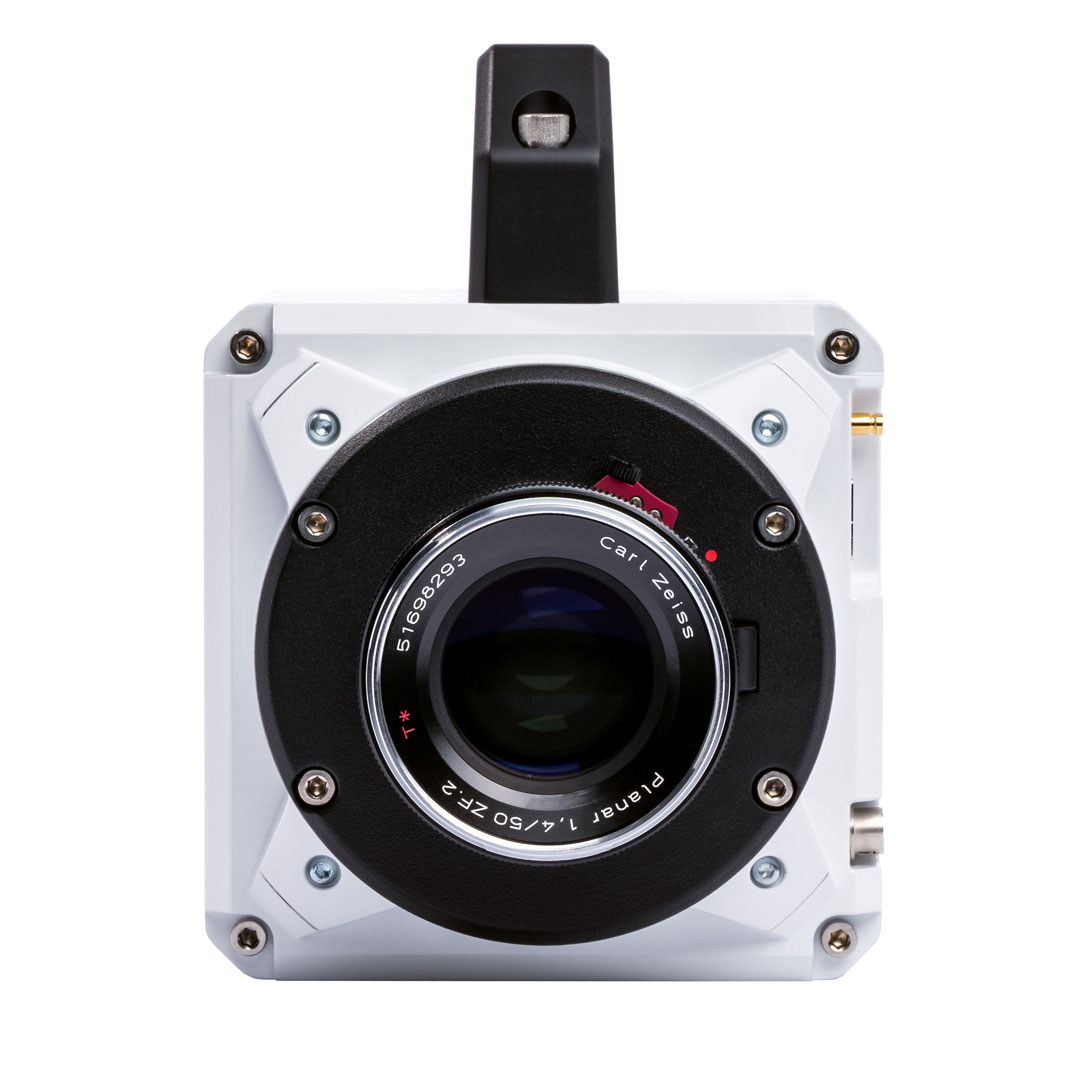

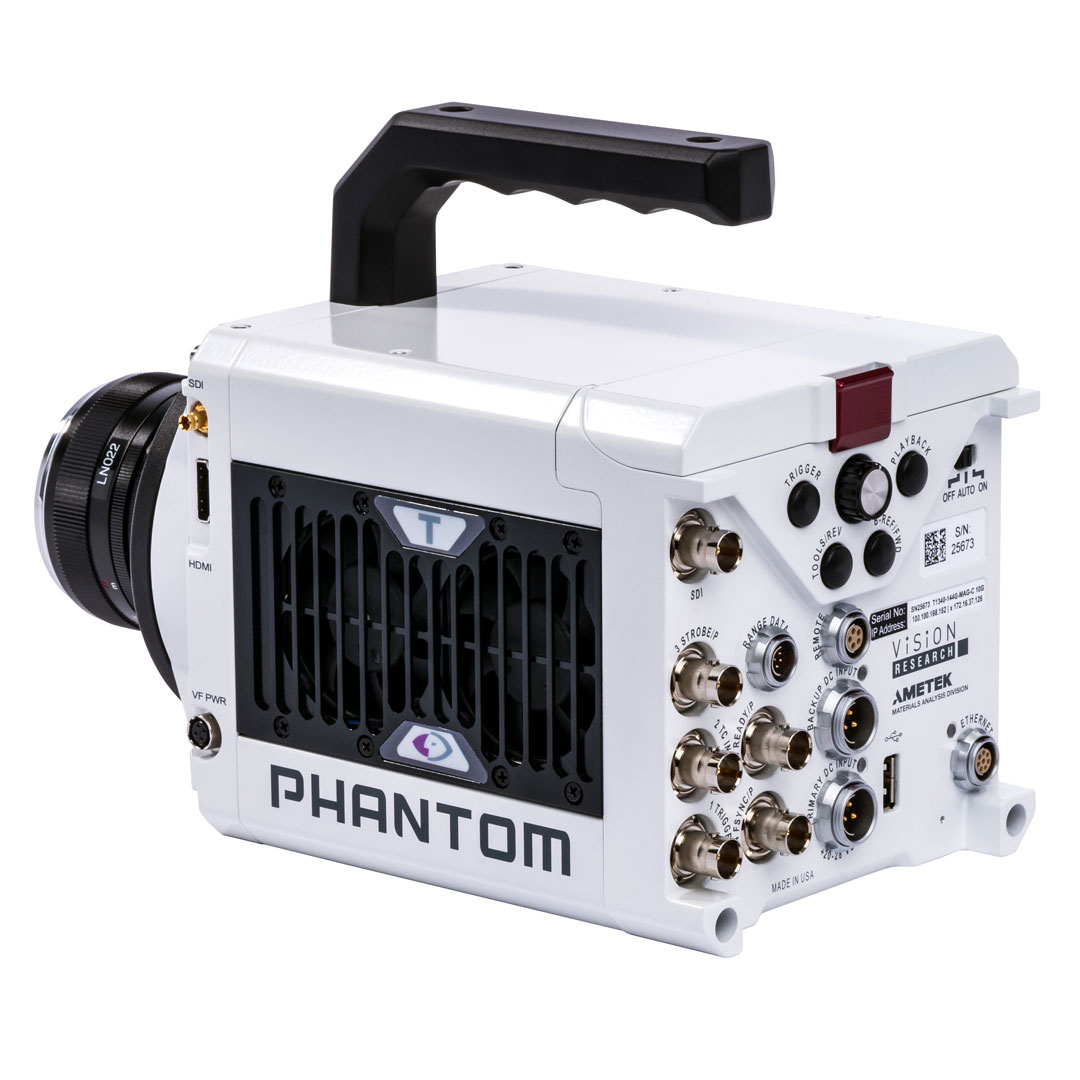

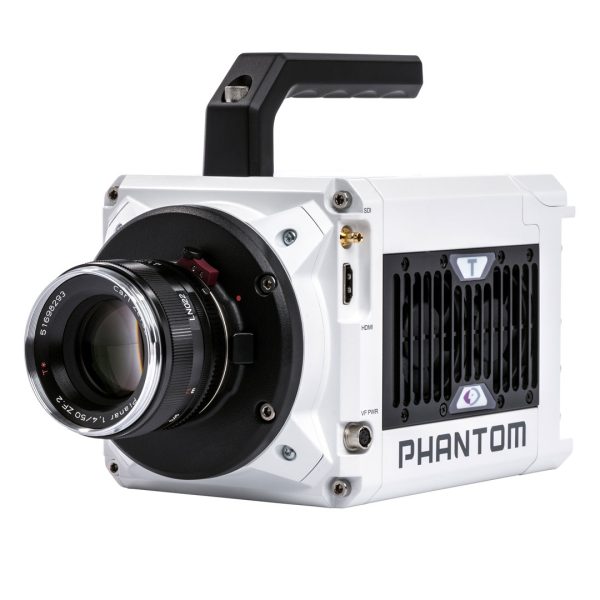

Phantom T3610 T-Series High-Speed Camera

The Phantom T3610 packs ultrahigh-speed frame rates and performance into a compact platform, 50% lighter than the closest equivalents. Backside illuminated (BSI) sensor technology maximises sensitivity for sub-microsecond exposure times as often required in high-velocity testing.

  • 38,040 fps at 1280 x 800
  • Sensitivity: Quantum Efficiency*
    • Mono: 80.3%; Binned 74.1%
    • Colour: 76%
  • Up to 256GB RAM
  • FAST option*, 190ns min. exposure

At its full 1 Mpx resolution of 1280 x 800, the Phantom T3610 captures over 38,000 fps. This  38 Gpx/second throughput is maintained through its full range for a top frame rate of 875,000 fps at both 1280 x 32 (standard mode) and 640 x 64 (binned mode). Binned mode increases the vertical resolution of the camera’s top frame rates by combining the sensor pixels 2×2. Binned mode is included on both mono and colour T3610 cameras, however, the output will switch to mono when used on a colour camera.

The frame rates provided by the Phantom T3610 are sought after for combustion, impact testing, spray dynamics, shock wave analysis and other applications that benefit from sub-microsecond exposure times. The T3610 custom BSI sensor delivers on all fronts, including the ability to shoot in environments with limited supplemental light.

The T3610 includes premium features to enable a variety of applications, including:
  • EDR (Extreme Dynamic Range) provides flash mitigation for ballistic studies by dynamically adjusting exposure in saturated areas of the image.
  • Programmable I/O to interface with DAQ systems and a variety of measurement sensors, which can be recorded and viewed as metadata in Cine files.
  • Remote, standalone operation is achieved by using the on-camera controls, video monitor and CineMag.
Key Features
  • Binning Mode – frame rate boost at 640 x 384 and below

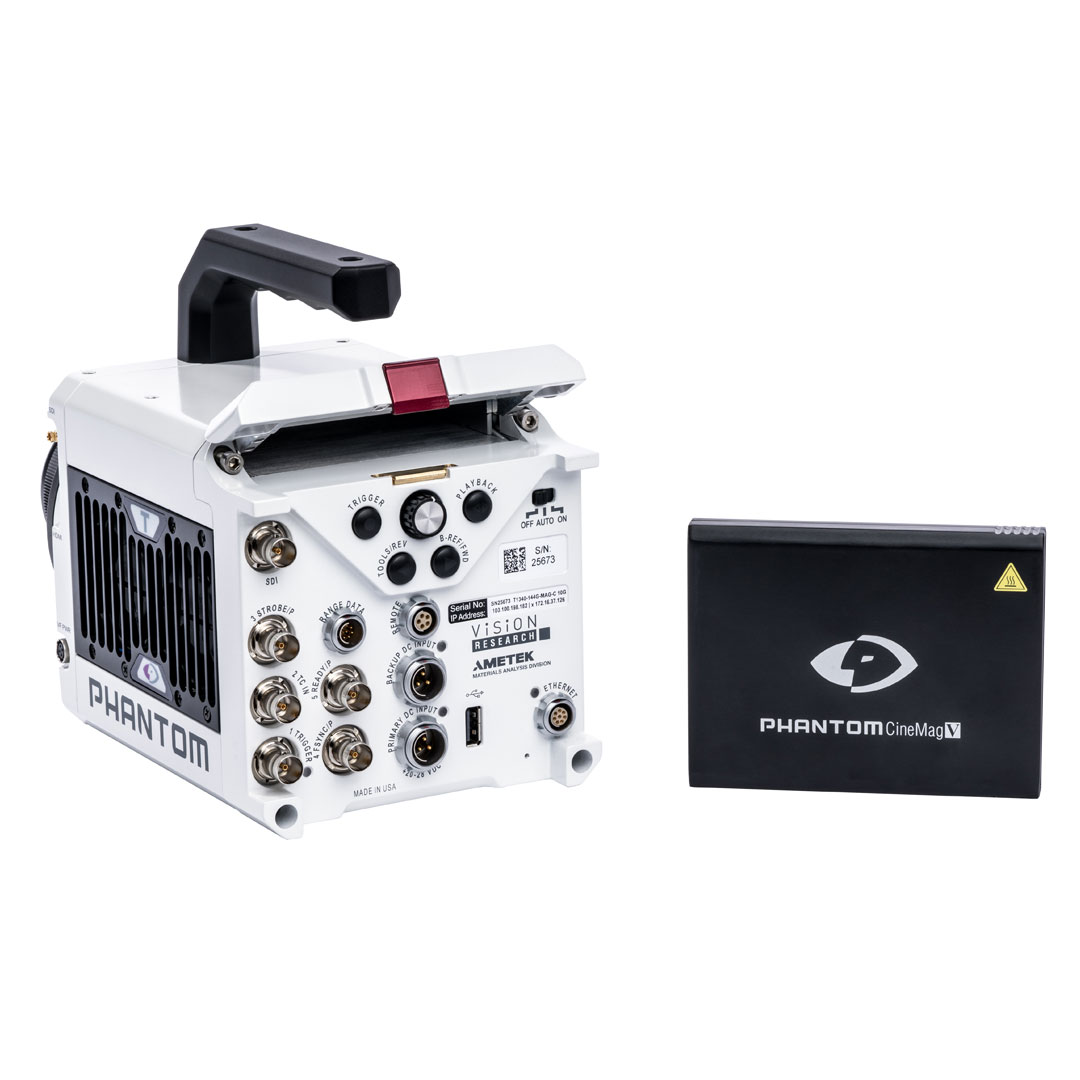

  • CineMag 5 Compatibility
  • SDI and HDMI video outputs

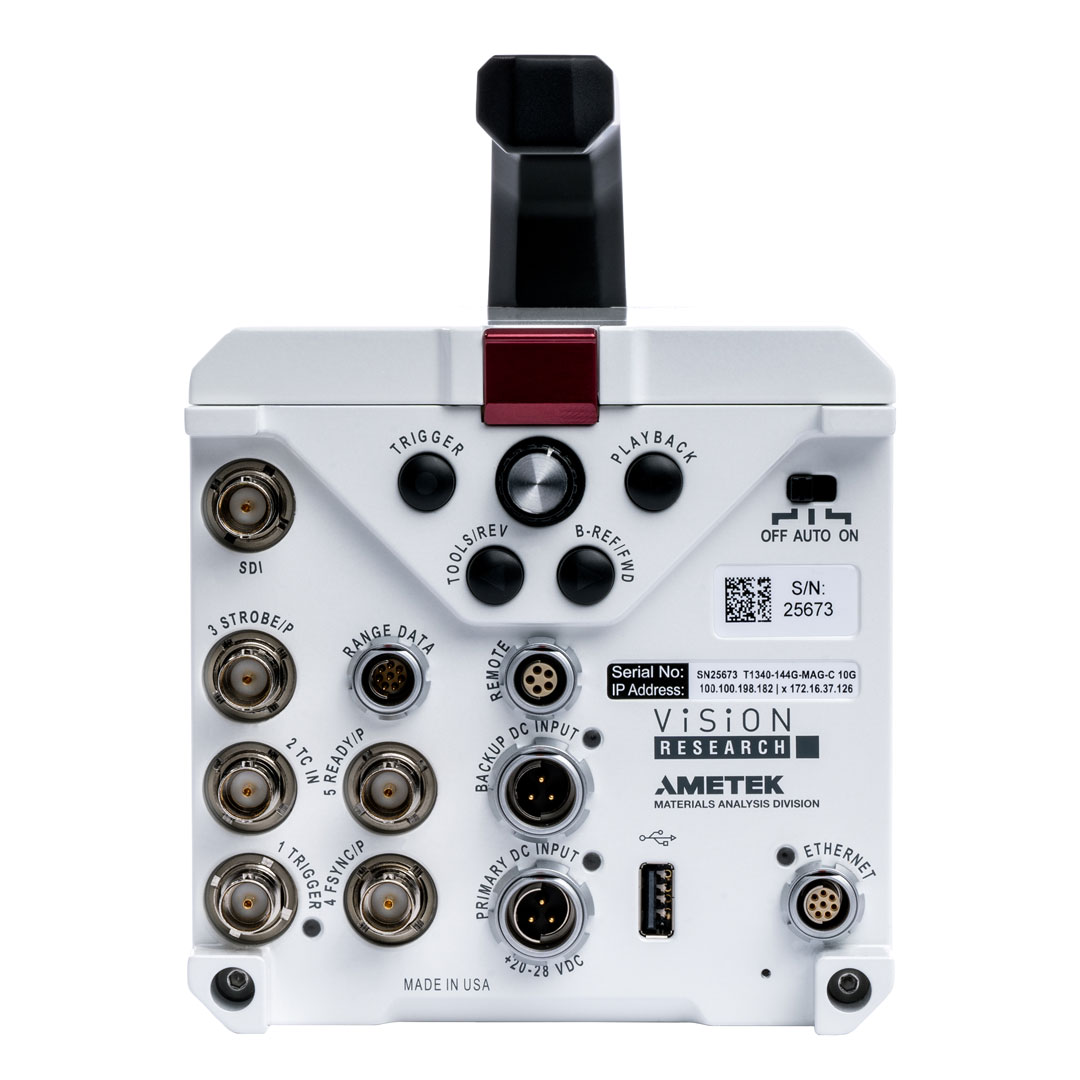

  • Programmable I/O – Assign and define camera signals
  • 10Gb Ethernet
What’s in the box?
  • 280W Power supply with XLR extender
  • Ethernet Cable
  • Mini-SDI video cable
