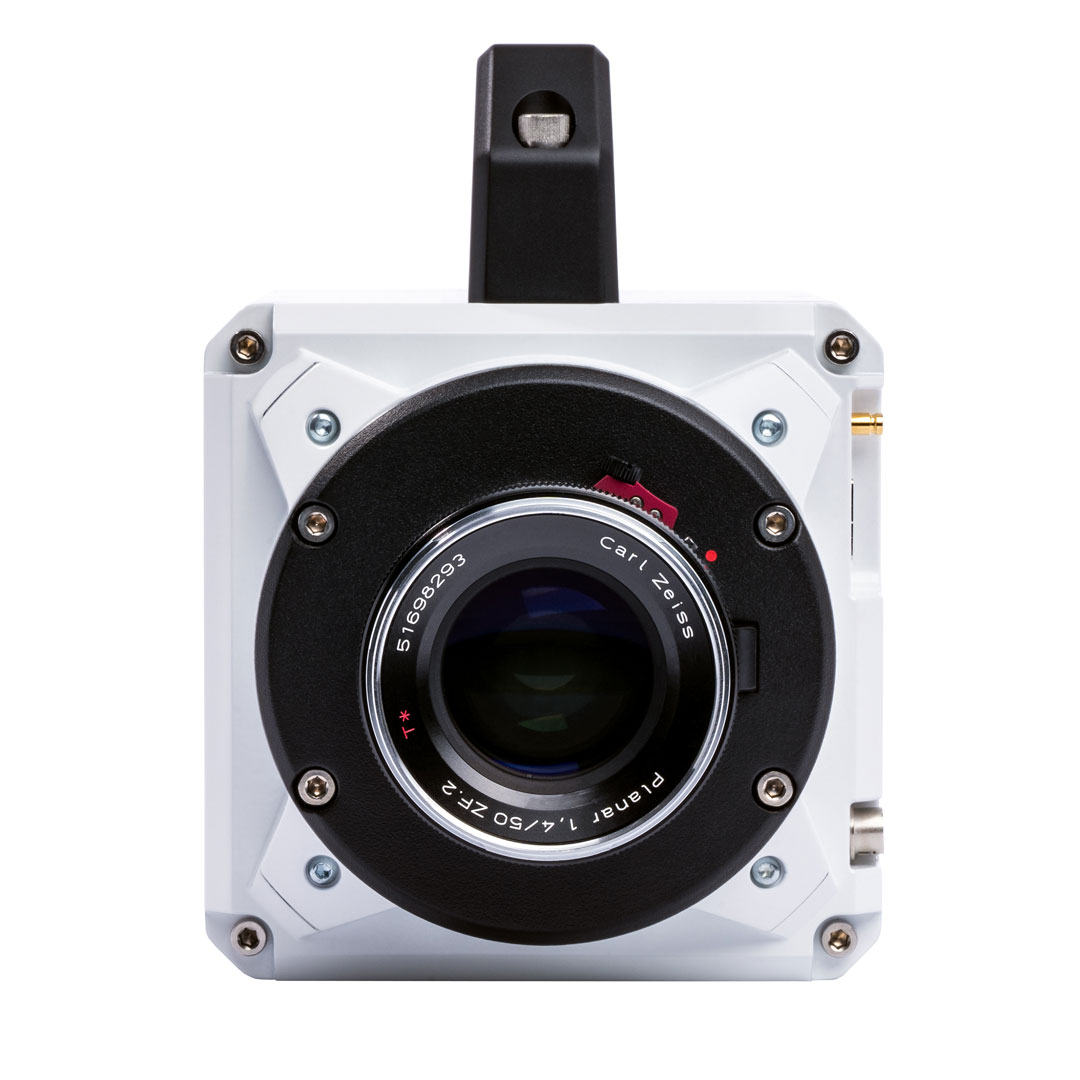

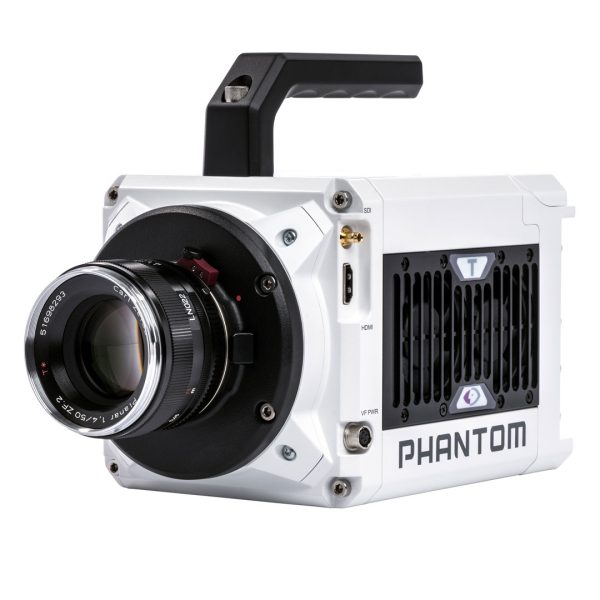

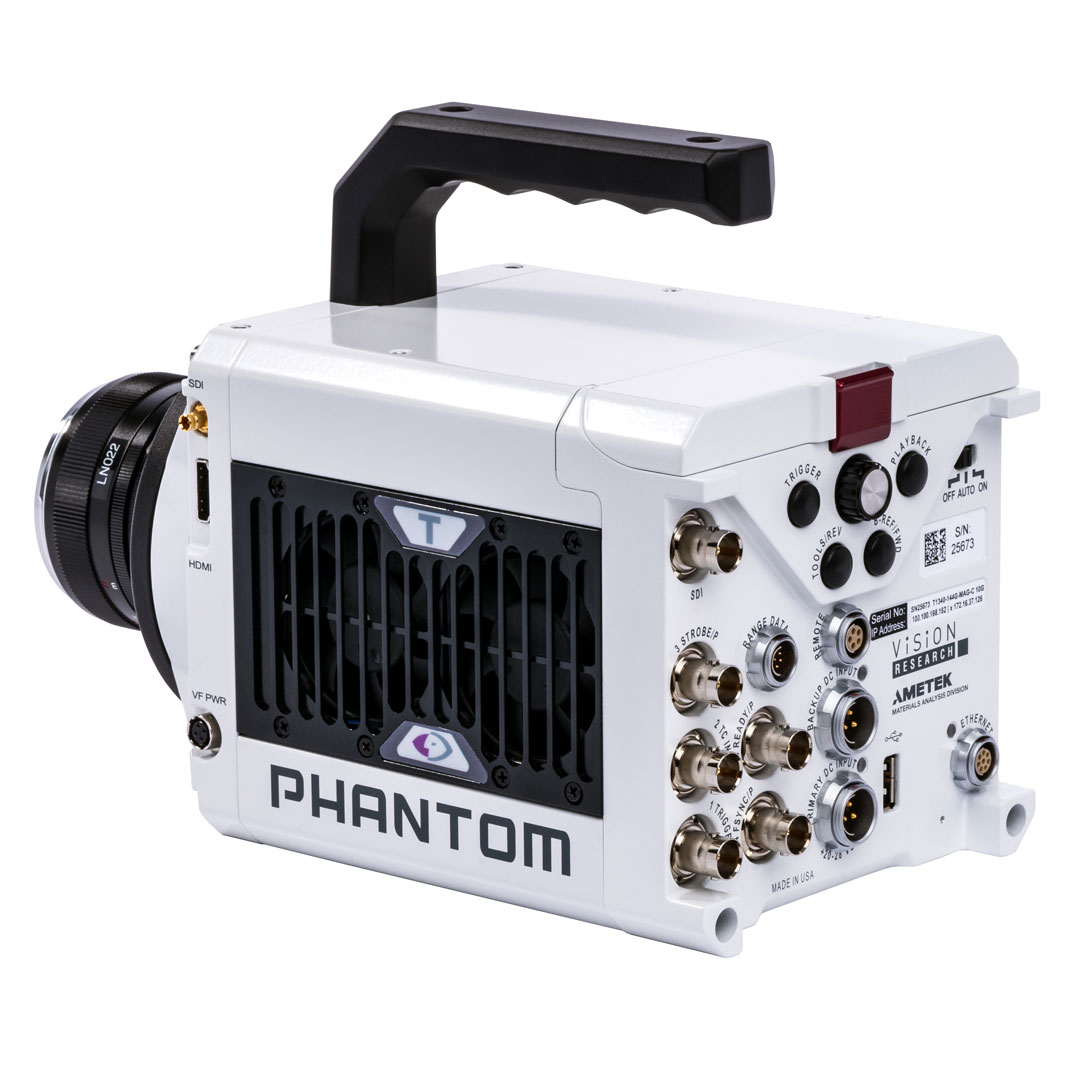

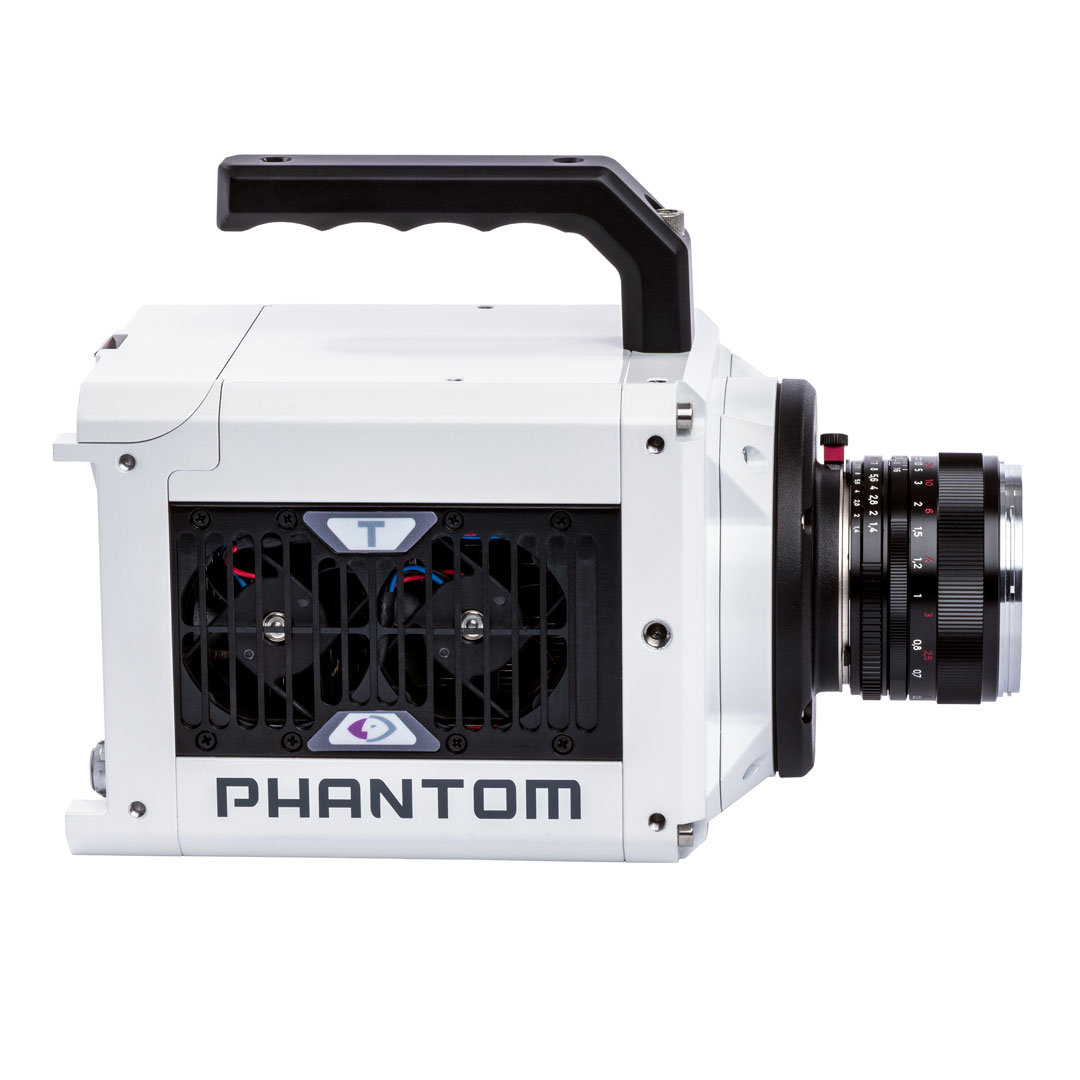

Phantom T4040 T-Series High-Speed Camera

The Phantom T4040 delivers a custom 4.2 Mpx backside-illuminated sensor in the compact T-Series form factor. Operators can capture the highest combination of resolution and speed possible.

  • 9,350 fps at 2560 x 1664
  • Sensitivity: Quantum Efficiency*
    • Mono: 85.4%; Binned 82.4%
    • Colour: 71%
  • 64, 128, 256GB RAM
  • FAST option*, 250ns min. exposure

The Phantom T4040 captures 4MPx resolution images at speeds not previously possible. Our proprietary sensor with backside illuminated (BSI) architecture ensures that 40Gpx/s data throughput is sustained and a max frame rate of 440,000 fps! The camera has a peak Quantum Efficiency rating above 90%, thus ensuring the sensor’s ability to capture images at far lower light levels.

The Phantom T4040 offers a 4 Mpx resolution, which delivers significant benefits over traditional 1 Mpx high-speed cameras. This is especially useful when your subjects require a high level of detail, or you have objects moving across a larger field of view.  Flow visualisation techniques, including Particle Image Velocimetry, are greatly improved due to the precise rendition of the particles’ shape, size, and location. Digital image correlation also gives increased resolution, allowing researchers to collect more data over a larger surface area.

With a 9.27 µm pixel size, the camera is well suited for subjects across a wide range of fields that require high magnification. Whether in biomechanical studies of insect wing movement or the high-tech world of microchip development, the T4040 delivers the right results. The T-Series camera also offers various lens mount options that allow you to connect specialised optics.

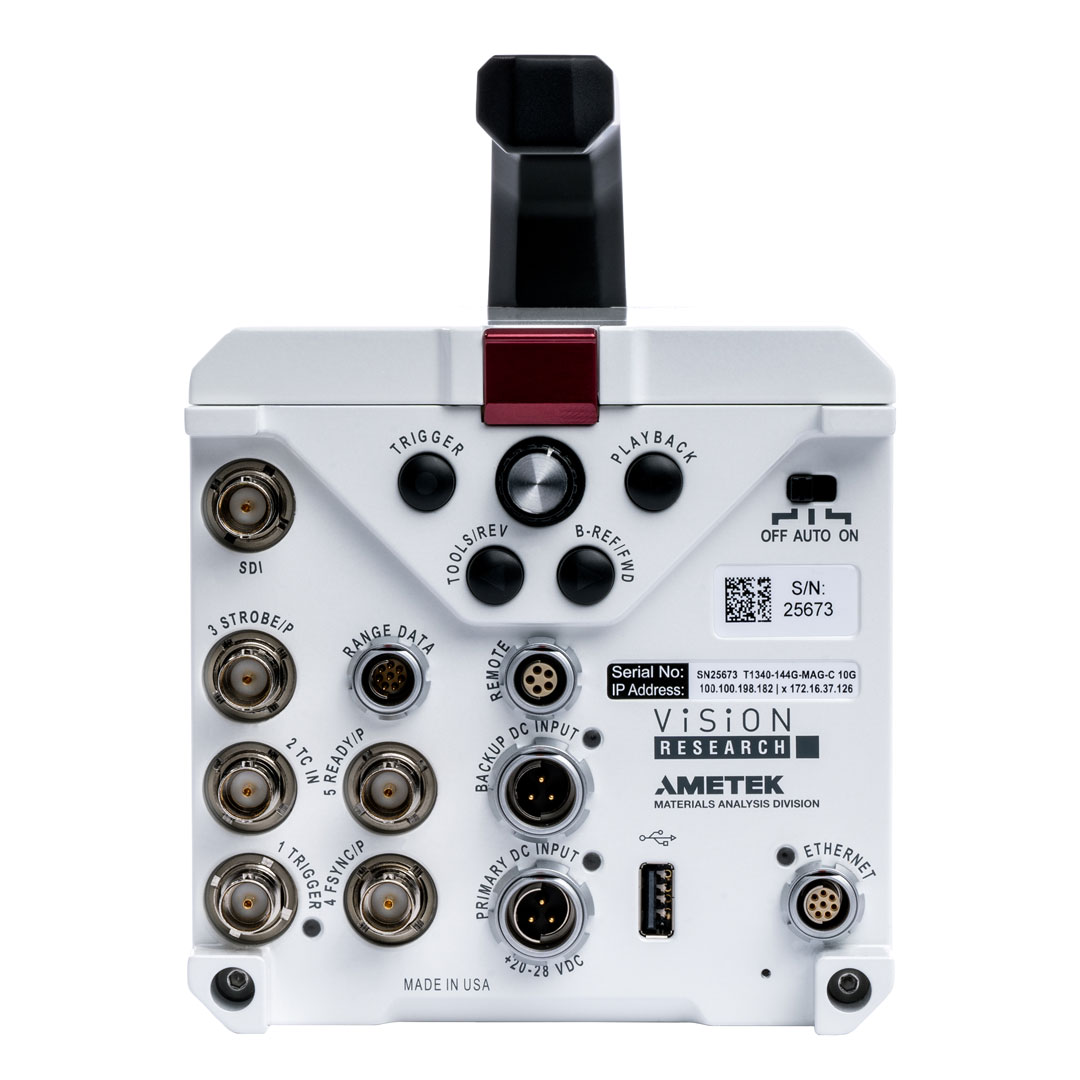

The T4040 includes EDR (Extreme Dynamic Range), which provides mitigation of bright flashes by dynamically adjusting exposure in saturated areas of the image. It also includes on-camera controls, video outputs and CineMag capability, which holds the features necessary for remote, standalone operation.

Key Features
  • Binning Mode – frame rate boost at 1280 x 832 and below

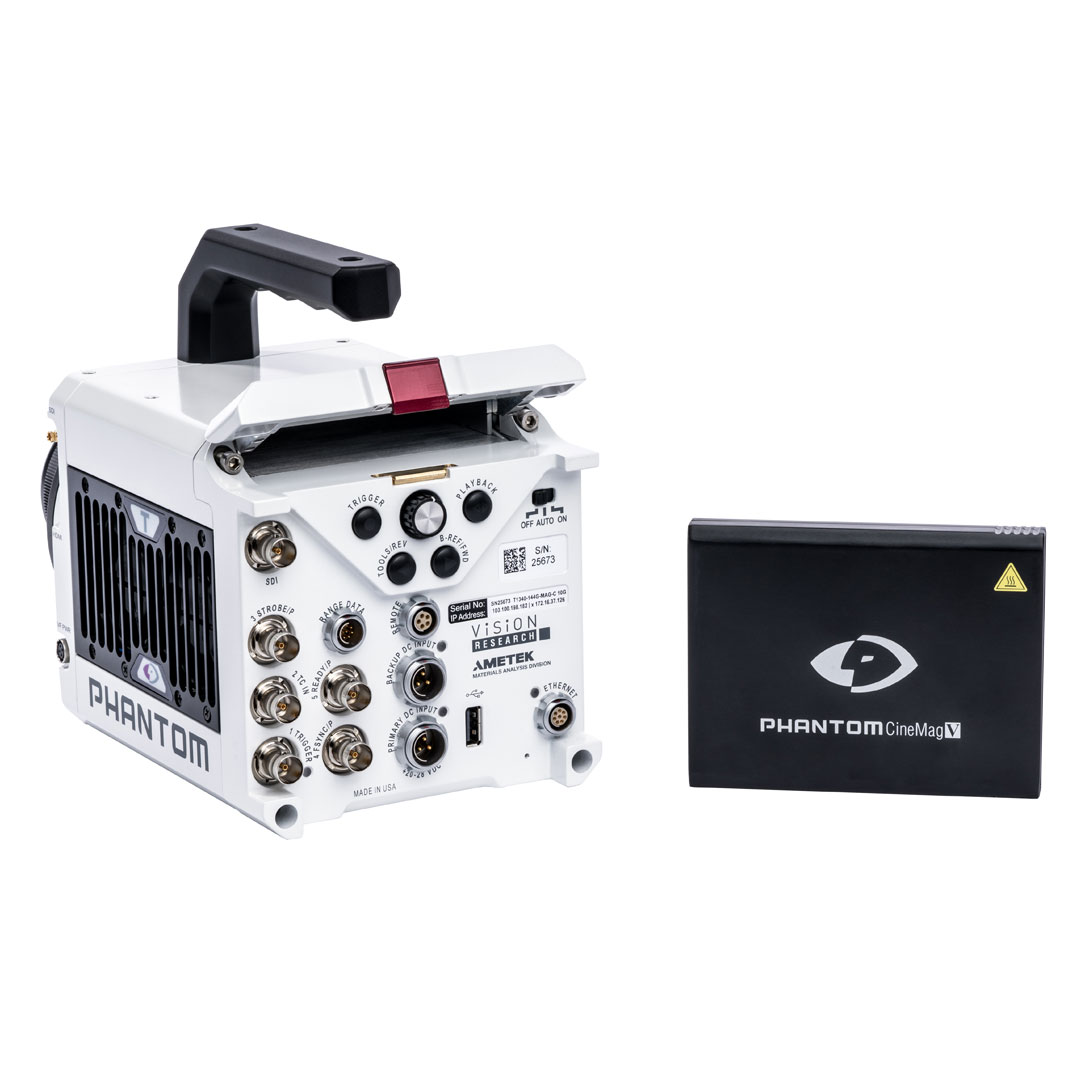

  • CineMag Compatibility
  • SDI and HDMI video outputs
  • Programmable I/O – Assign and define camera signals
  • 10Gb Ethernet Included
What’s in the box?
  • 280W Power supply with XLR extender
  • Ethernet Cable
  • Mini-SDI video cable
