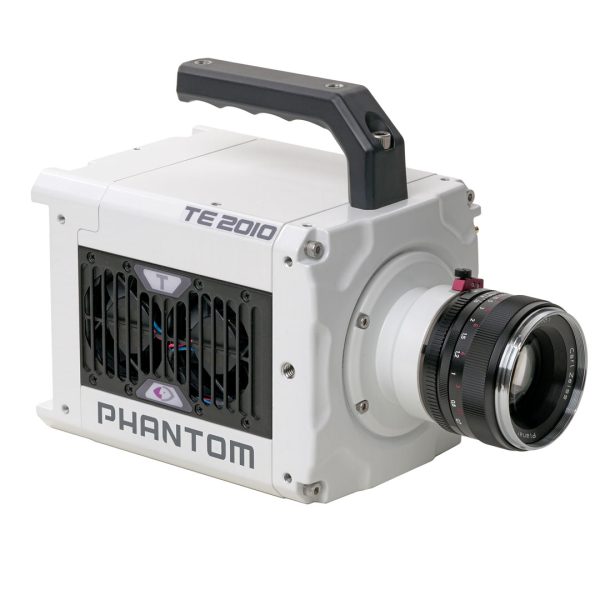

Phantom TE2010 T-Series High-Speed Camera

The Phantom TE2010 T-Series is a compact, easy-to-configure, High-Speed Camera capable of capturing 20,000 fps at 1 Mpx and over 1M fps at reduced resolution and FAST option.  BSI sensor technology ensures premium image performance.

  • 19,210 fps at 1280 x 832
  • Sensitivity: Quantum Efficiency*
    • 59.9% mono
    • 53.6% colour
  • 32, 64, 128GB RAM
  • Add FAST option for 1M fps and 190ns exposure

*QExFF at 532nm

The Phantom TE2010 T-Series High-Speed Camera delivers ultra-high-speed frame rates with premium connectivity and features at a competitive price. This model is ideal for industrial reliability testing, material development and scientific motion analysis. The custom backside-illuminated (BSI) sensor ensures good image quality in challenging environments where there is limited available light.

The Phantom T-Series TE2010 includes premium features to enable a variety of applications, including:

  • EDR (Extreme Dynamic Range) provides flash mitigation for ballistic studies by dynamically adjusting exposure in saturated areas of the image.
  • Programmable I/O to interface with DAQ systems and a variety of measurement sensors, which can be recorded and viewed as metadata in Cine files.
  • Ability for a fully automated workflow when using Image-based auto-trigger (IBAT) combined with multi-Cine partitions and Continuous Recording in PCC.
Key Features
  • Binning Mode – frame rate boost at 640 x 384 and below

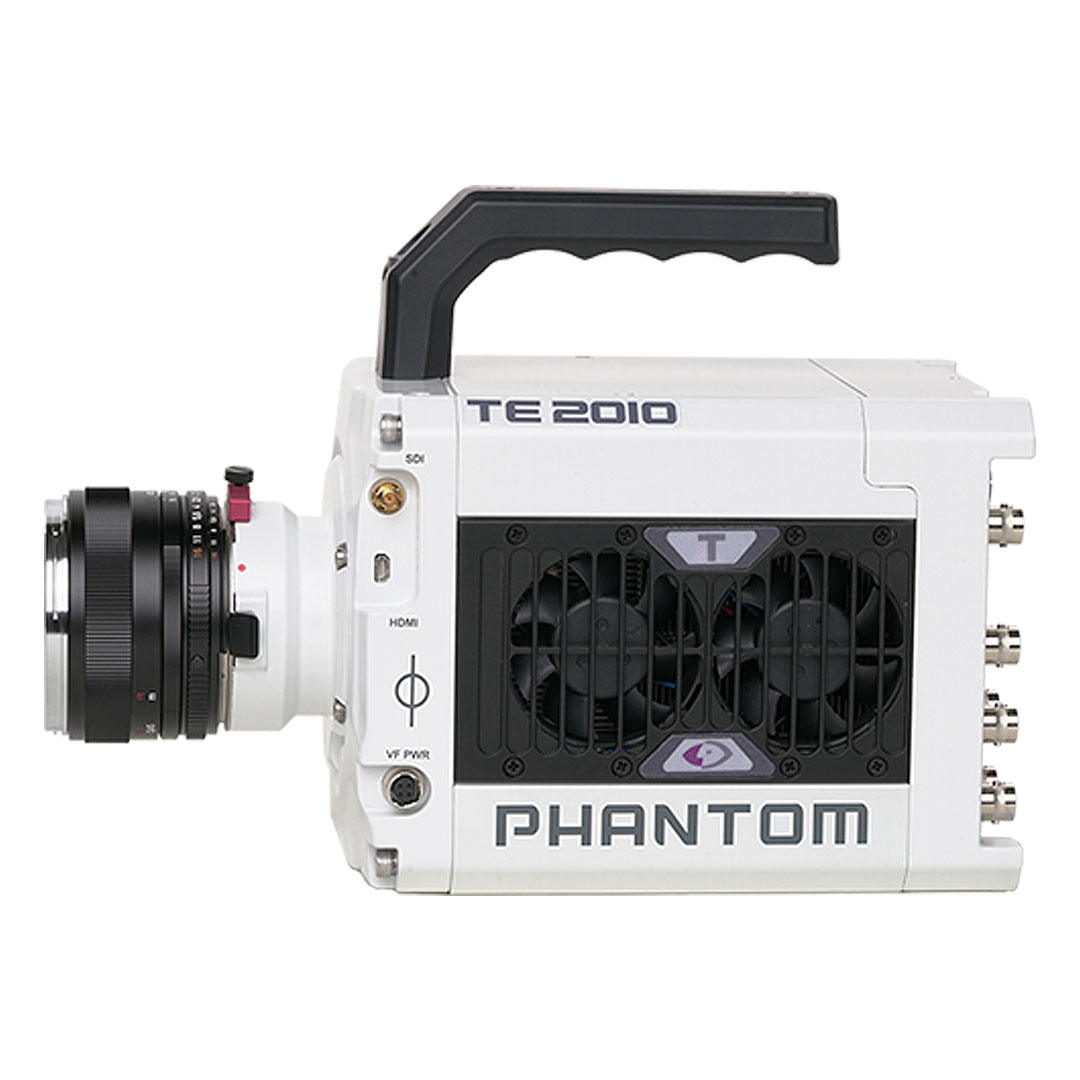

  • SDI and micro HDMI video outputs

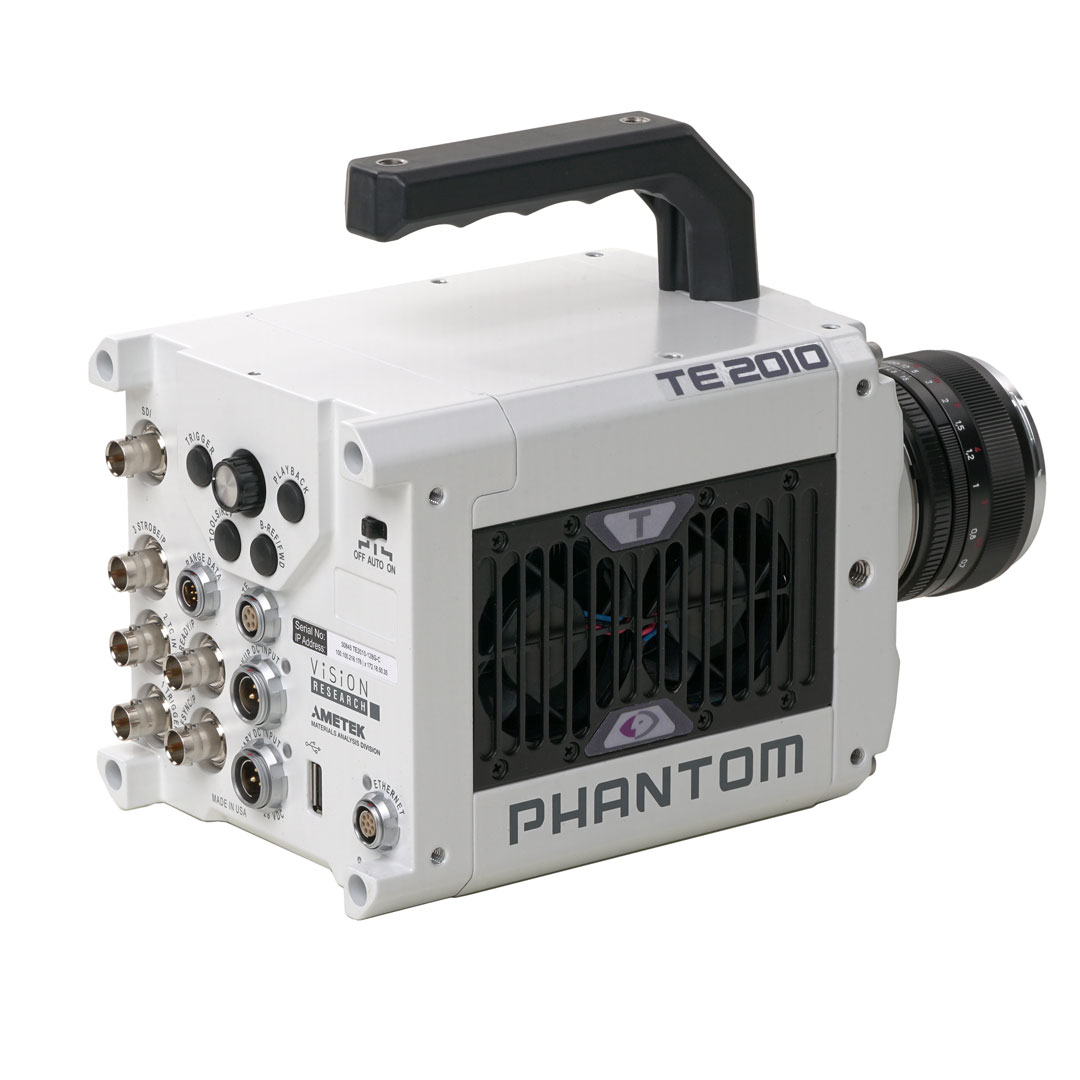

  • Programmable I/O – Assign and define camera signals
  • 10 Gb Ethernet standard
What’s in the box?
  • 280W Power supply with XLR extender
  • Ethernet Cable
  • Mini-SDI video cable
  • Printed Manual and PCC Software CD available upon request.
