Phantom TMX 7510 High-Speed Camera

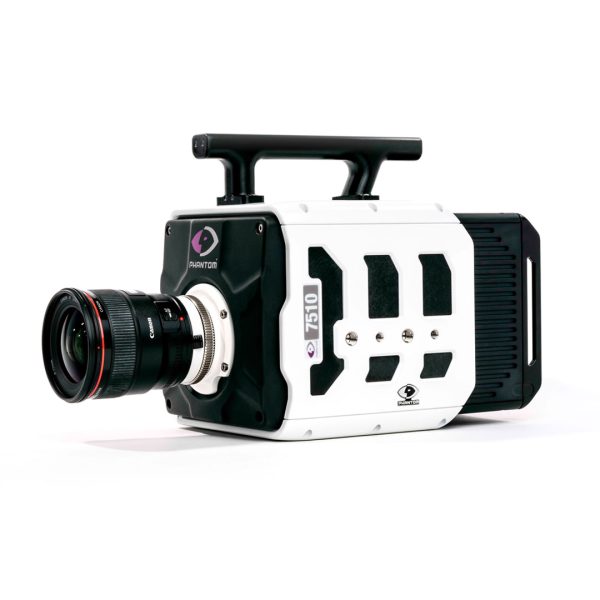

The Phantom TMX 7510 is the world’s first high-speed camera to utilise back-side illumination. Implementing this technology has allowed Vision Research engineers to develop a custom sensor capable of unprecedented speeds. All are achieved without sacrificing the image quality that Phantom cameras are known and trusted for.

This BSI technology provides increased processing efficiency, allowing TMX cameras to maintain their high throughput even as frame rates increase. The TMX 7510 has 75 Gigapixel throughput, which provides over 76,000 fps at a full 1 Mpx resolution of 1280 x 800.  At reduced resolutions, the camera will record over 744,000 fps in standard mode and up to 1.75M fps and 95ns in the FAST mode.

The Need For Increased Light

One truth of high-speed imaging that never changes is that ‘with increased speeds comes the need for increased light’. The unique backside-illuminated sensor in the Phantom TMX 7510 deals with this issue perfectly. We have achieved this by locating the metal parts of a traditional sensor that interfere with incident light from the photodiode, at the back of the sensor. Moving those key elements to the back of the sensor allows even more light to reach each pixel, improving light sensitivity and QE.

Increased Flexibility

The revolutionary TMX platform is part of a generation of cameras that deliver you greater throughput, premium features, and enhanced performance. We understand that flexibility is key to ensuring that the TMX 7510 can produce images that scientific analysts require.  Therefore, you can select a binning mode that allows variable resolutions without sacrificing speed. In standard mode, the TMX 7510 can reach over 300,000 fps at 1280 x 192, but if switched into binning mode, the same speeds are possible at 640 x 384. This difference in resolution options means that researchers can fit the camera sensor output to the size and shape of their high-speed event.

CineMag Incorporated

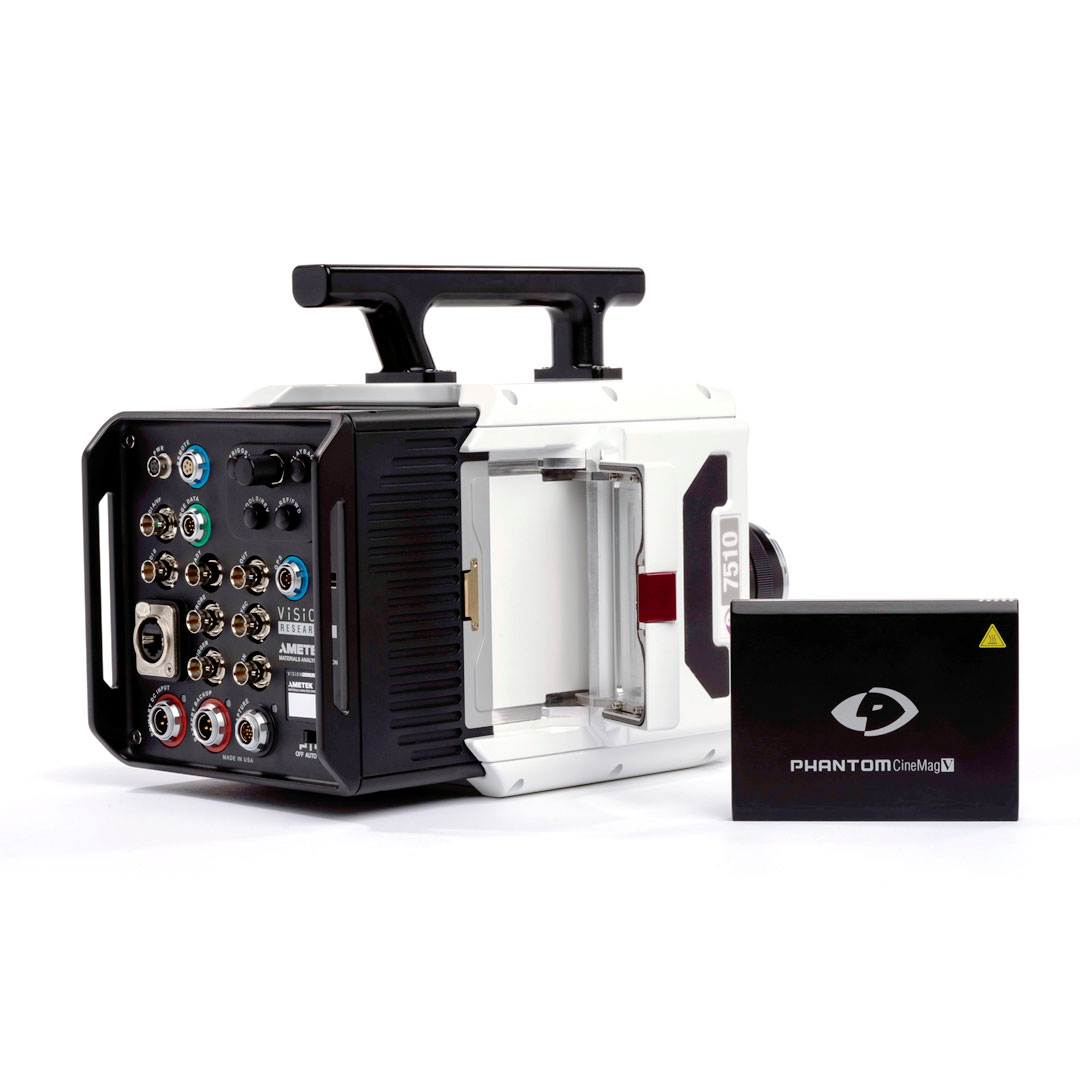

These incredible speeds mean that your data management is vital. To ensure you have as little downtime as possible, the Phantom TMX 7510 has up to 512GB of onboard RAM, which can be fitted to use our custom non-volatile data storage, the Phantom CineMag. It also comes equipped with a 10 Gb Ethernet download function as standard.

All these workflow tools are available on every TMX model in the range.

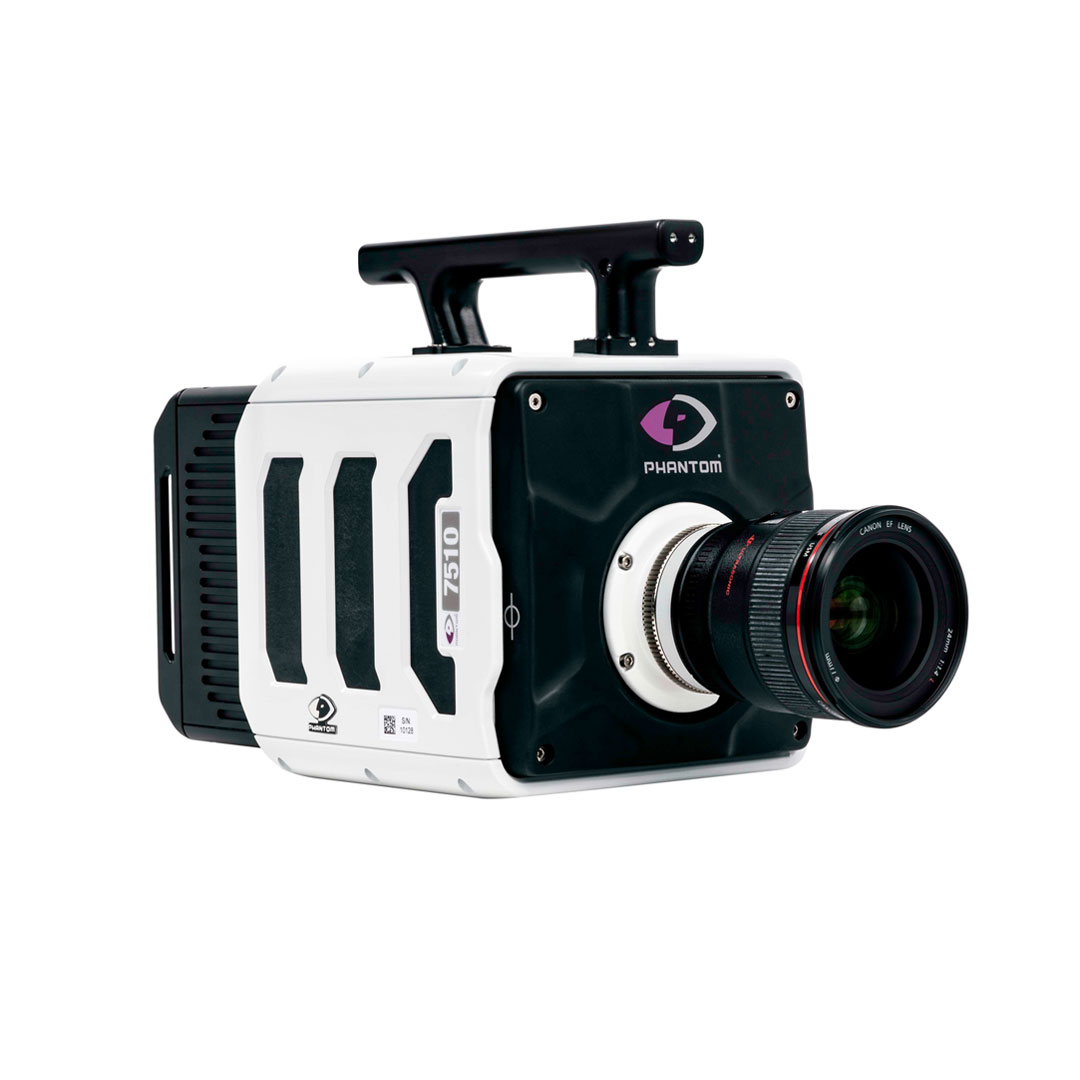

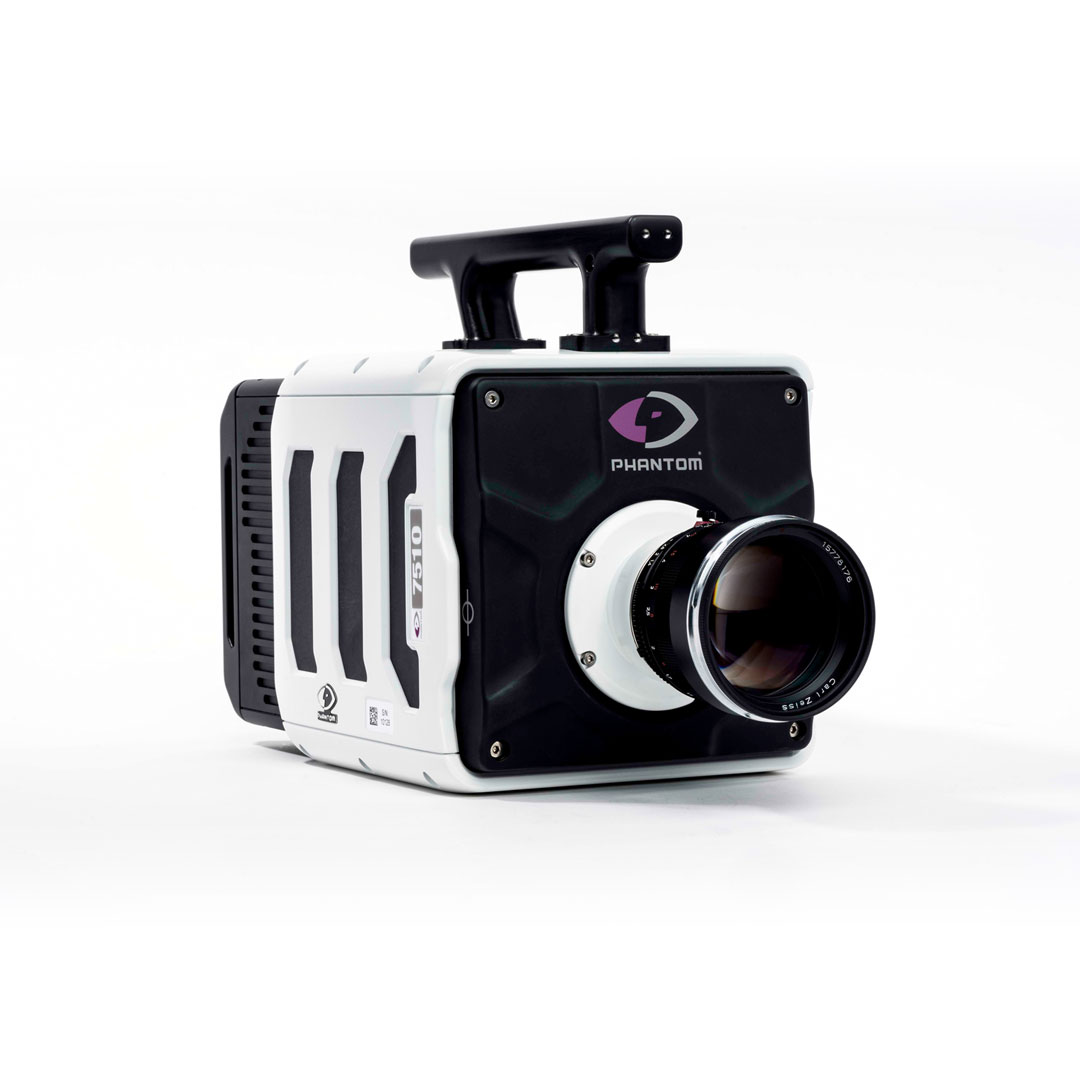

Like most Phantom cameras, the TMX 7510 has interchangeable lens mounts (PL, C, M42 and Canon EOS), enabling high-quality and specialised optics to be used without any limitations. The camera mount can be customised for each particular test as needed.

Key Features

• 18.5 micron pixel
• 12-bit depth
• Side mounting
• Full Phantom Features and connectivity
• Programmable I/O – Assign and define camera signals

What’s in the box?

• 400 W Power supply with XLR extender
• Ruggedised Ethernet cable
• BNC cable
• Sturdy Pelican case and customised foam

*Printed Manual and PCC Software CD available upon request.
