The unique imaging features of the Phantom VEO 1010 are more accessible in the Phantom VEO 1010 model. A temporal dark noise rating of 13.6 e provides exceptional image quality even in darker environments, requiring less supplemental light. Binning mode is included for a boost in frame rate at lower resolutions.

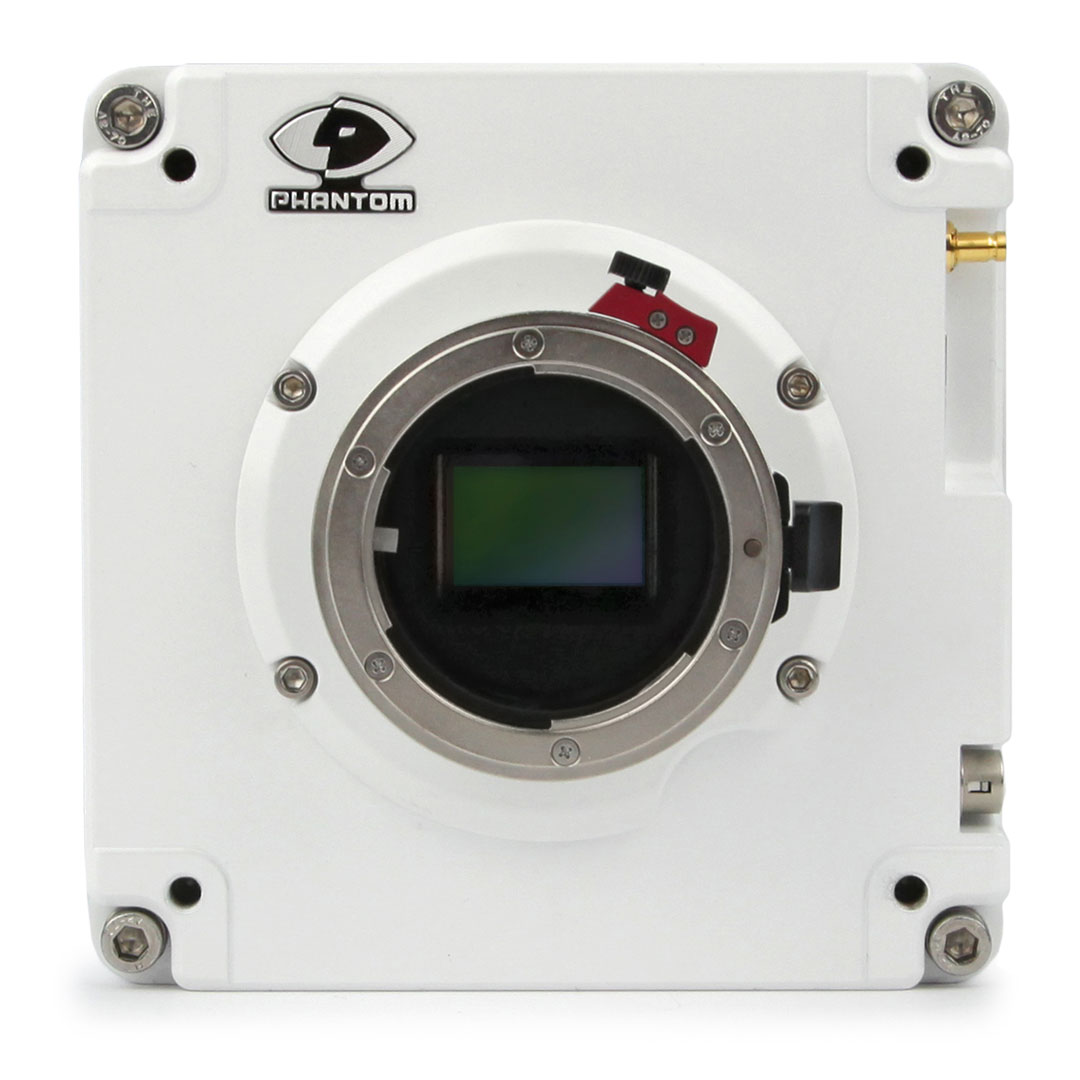

The custom 1.2 Mpx sensor provides more resolution than most 1 Mpx high-speed cameras, resulting in a greater active pixel area to capture side-to-side and vertical movement. The Phantom VEO 1010 captures over 8,000 fps at full resolution and over 30,000 fps at 640 x 480, a range of frame rates ideal for impact analysis and other areas of industrial motion analysis.
Interchangeable lens mounts increase flexibility – Nikon F, PL, C and Canon EF (with electronic control) mounts are available. This allows the camera to adapt to high-quality and advanced optics that are often required to get the best data on the subject at hand.
All Phantom VEO cameras utilise the same base housing, milled out of aluminium with sealed components to ensure the camera will continue to perform in harsh outdoor and range environments. As a result, VEO cameras are known for their reliability.
Key Features
- Binning Mode – frame rate boost at 640 x 480 and below
- SDI and HDMI video outputs
- S-Model Includes:
- CFast 2.0 media
- 12V battery input
- On-camera controls

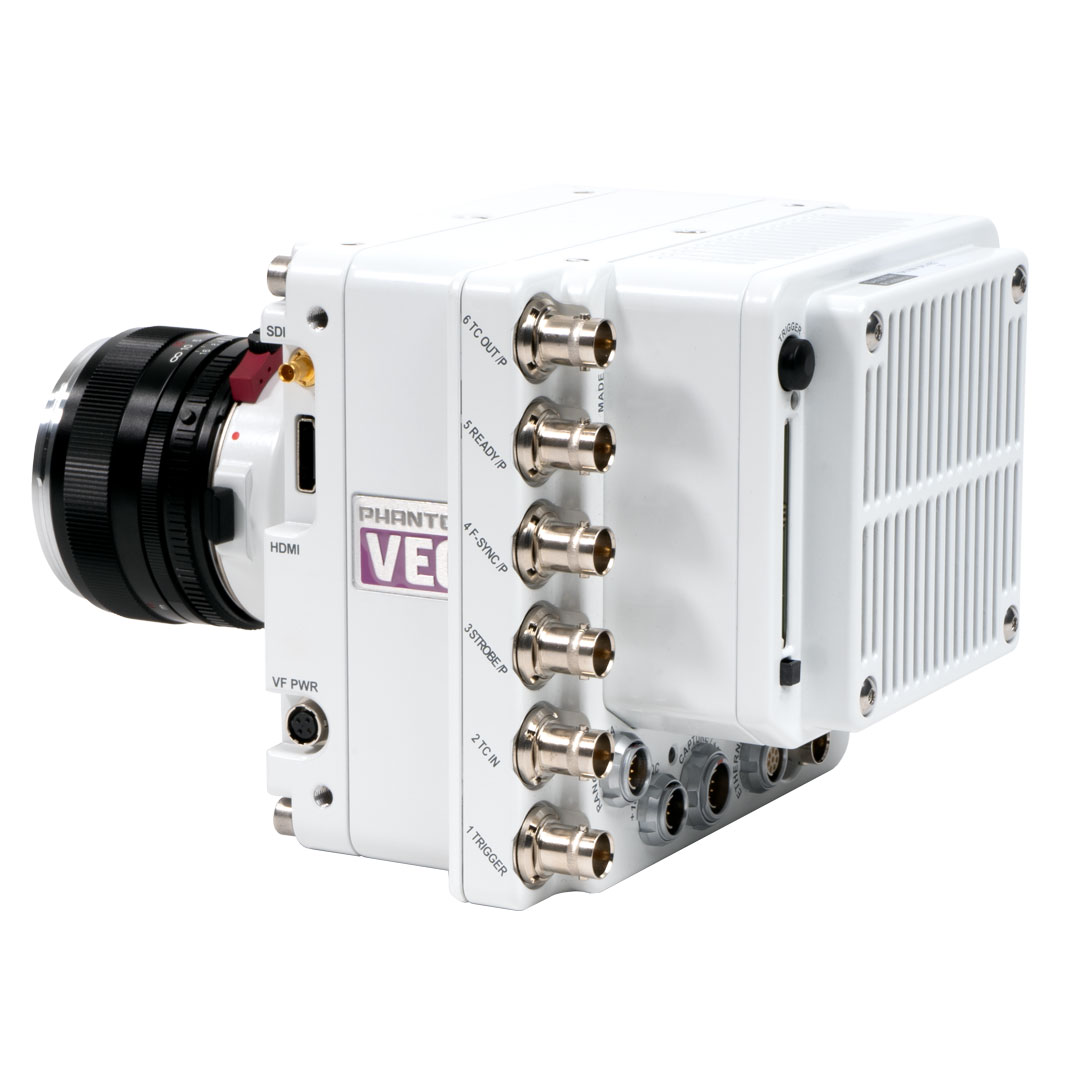

- Programmable I/O – assign and define camera signals
- 10 Gb Ethernet Connectivity Option
What’s in the box?
- Power supply with XLR extender
- Ethernet Cable
- Mini-SDI video cable
