The powerful imaging performance of the Phantom VEO 610 is now readily available in the Phantom VEO 610 custom sensor with a low temporal dark noise rating of 13.6 e-. This enables the VEO 610 to offer detailed dark environment imaging with less supplemental light. Phantom binning mode is included for a boost in frame rate and ISO at lower resolutions.

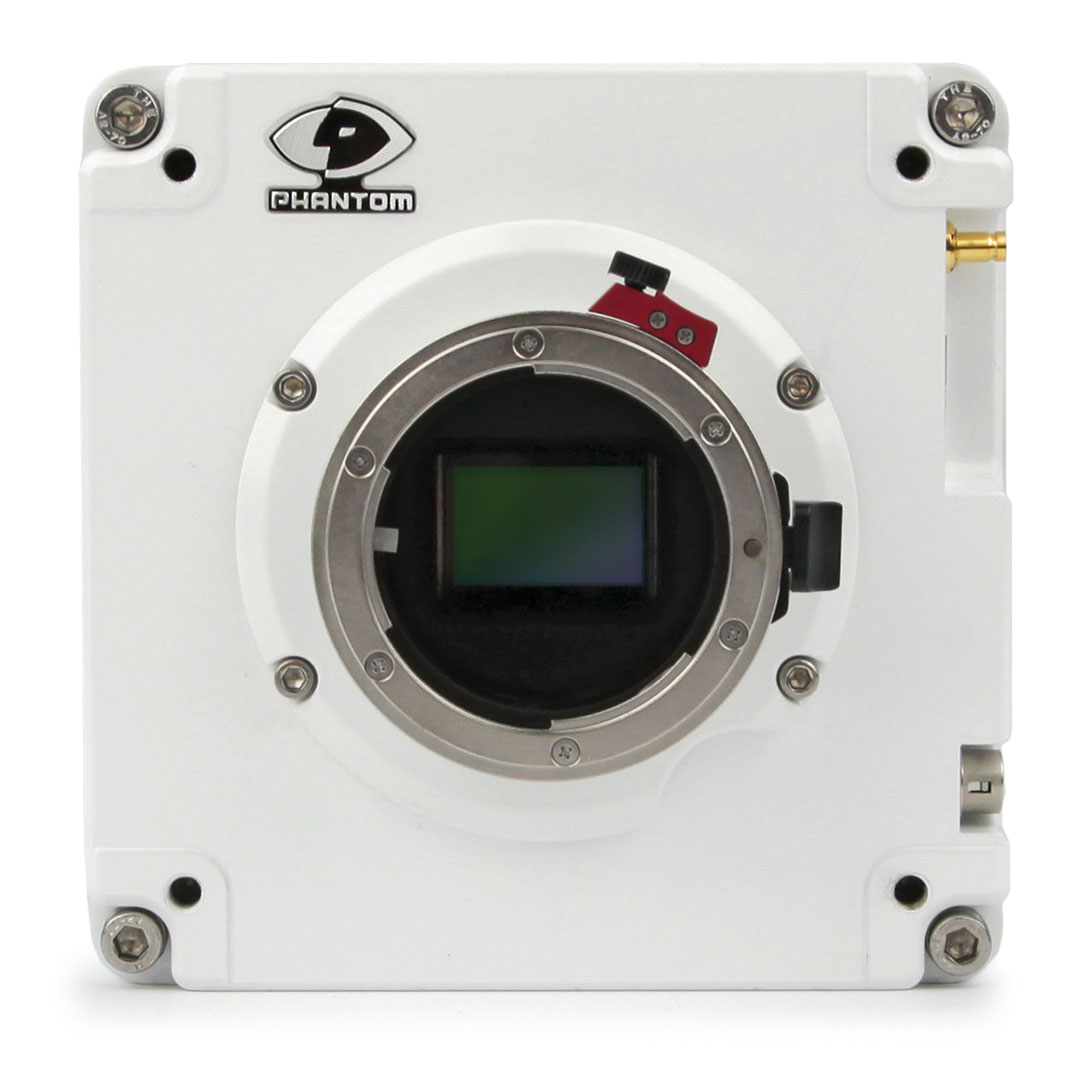

The custom 1.2 Mpx sensor allows imaging at 6.75 Gpx/second throughput, capturing over 5,610 fps at full resolution and over 20,800 fps at 640 x 480. This range of frame rates is a great starting point for applications such as material testing, particle imaging, and general high-speed motion analysis.
Lens mount options – Nikon F, PL, C and Canon EF (with electronic control) make for increased application and imaging flexibility by allowing the Phantom VEO 610 to adapt to high-quality and advanced optics that are often required to get the best data of the subject at hand.

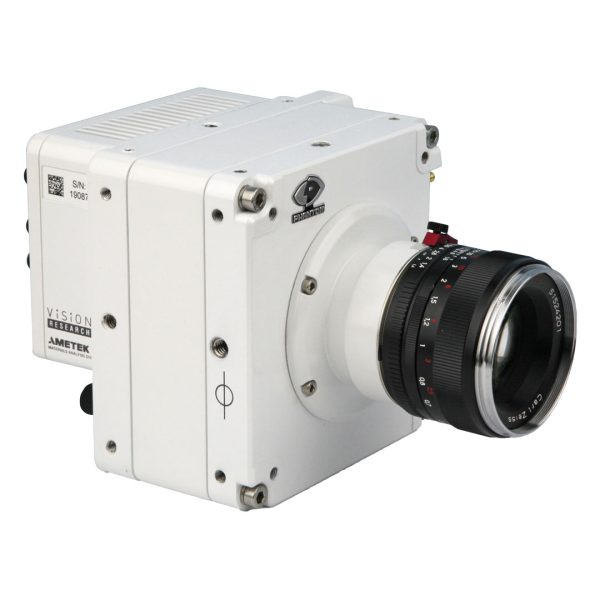

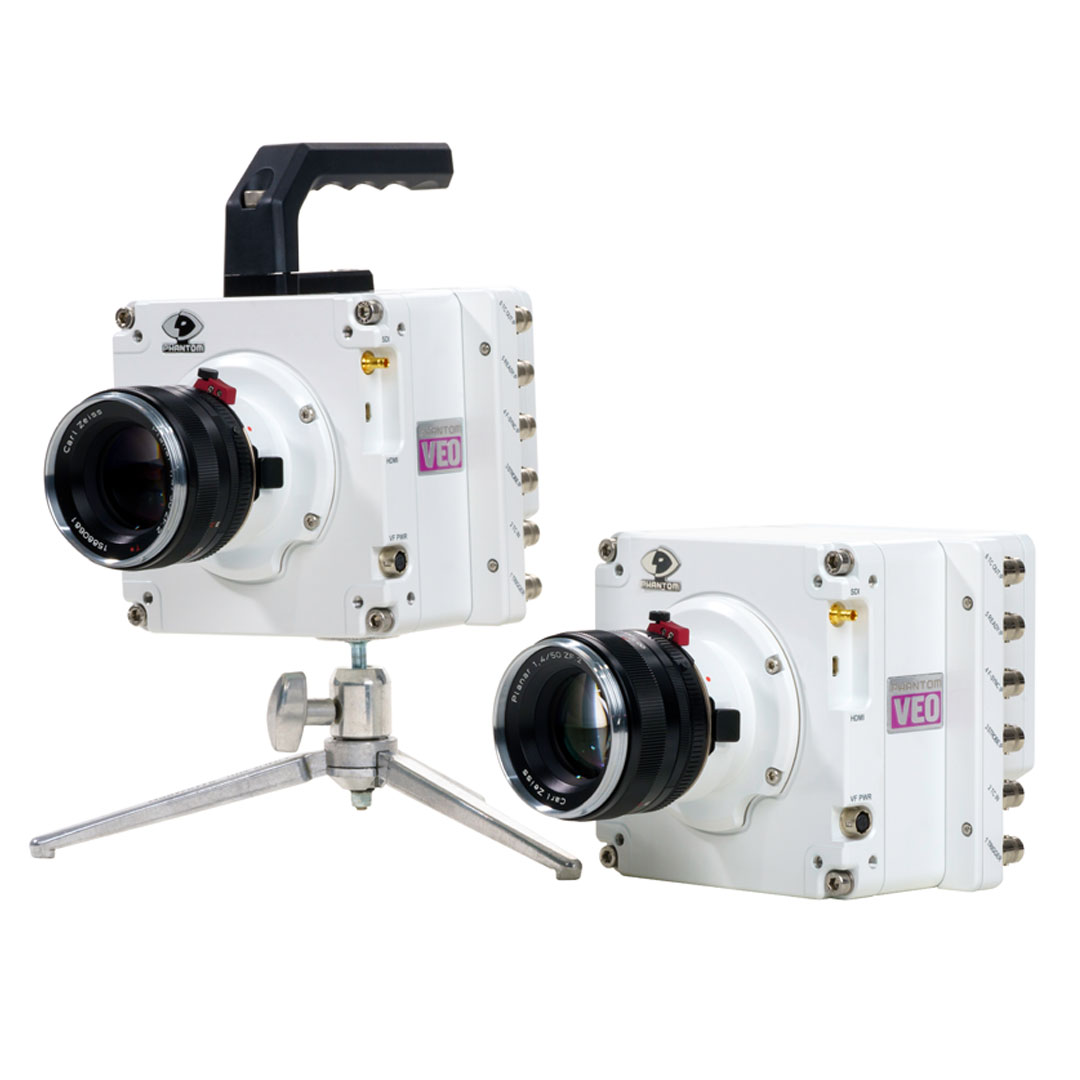

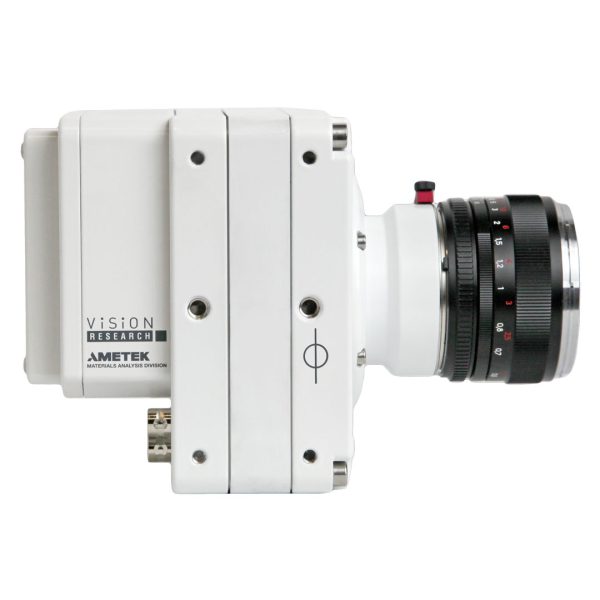

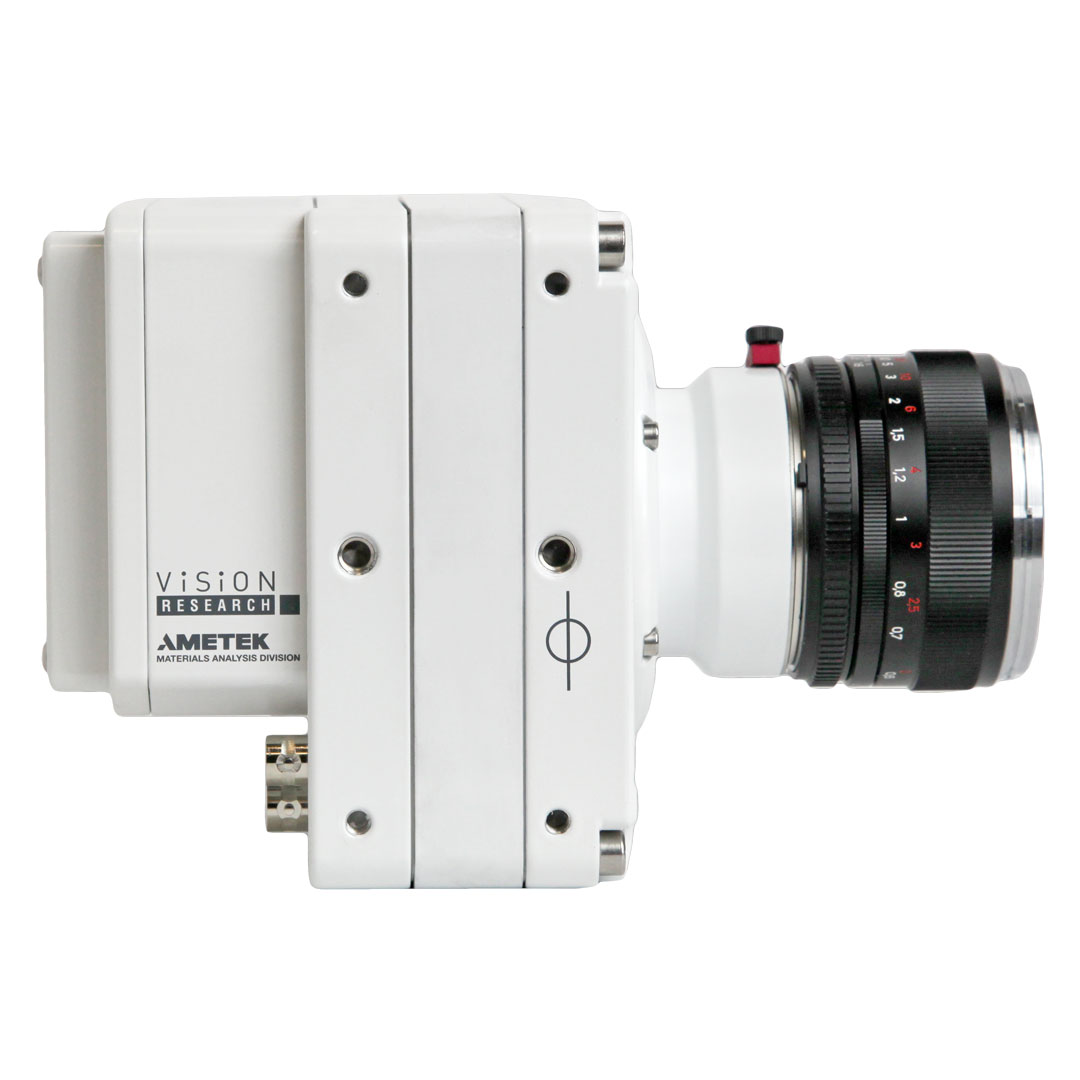

All Phantom VEO cameras utilise the same base housing, compact and rugged design at 6 lbs (2.7 kg), milled out of aluminium with sealed components to ensure the camera will continue to perform in harsh outdoor and range environments. As a result, VEO cameras are known for their reliability.
Key Features
- Binning Mode – frame rate boost at 640 x 480 and below

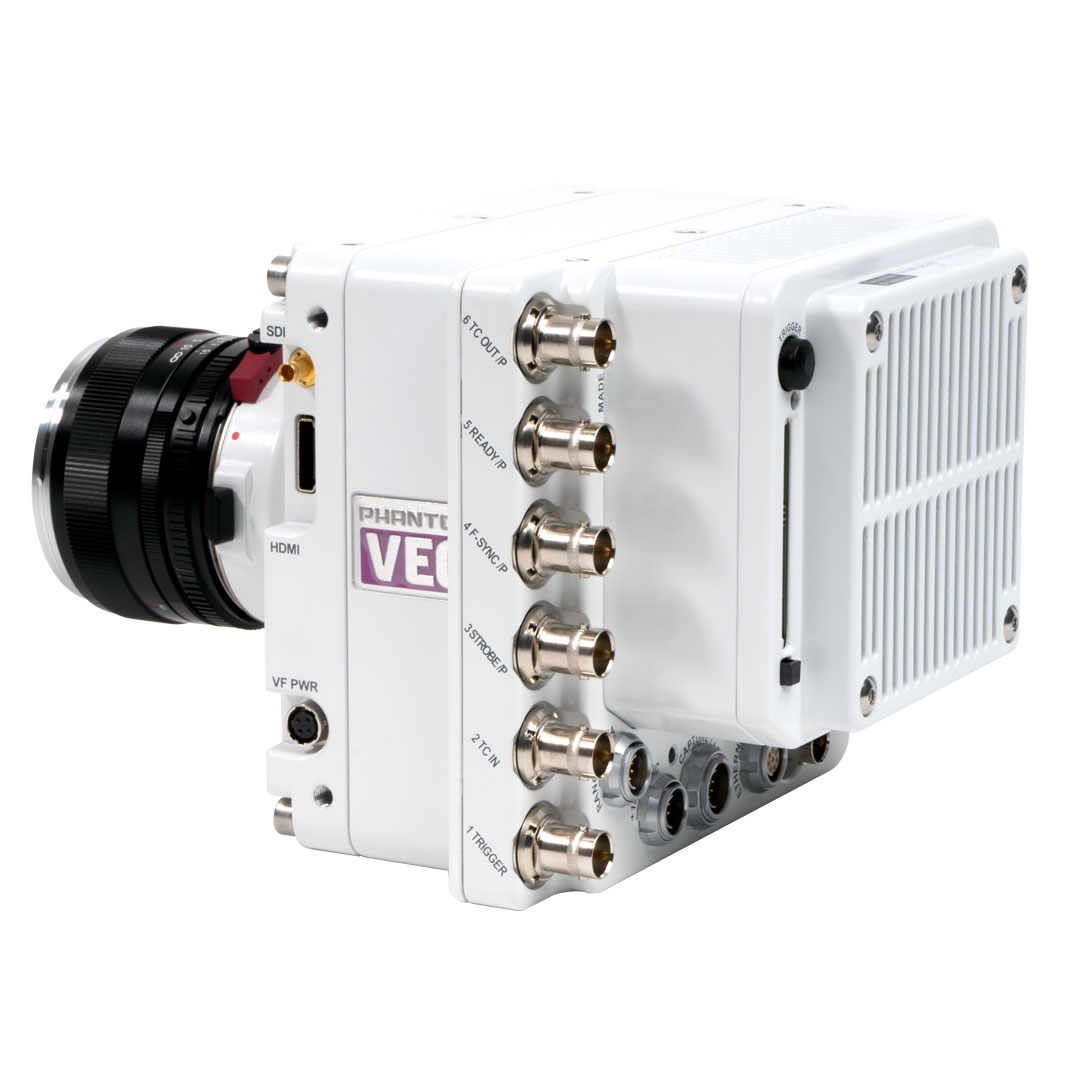

- SDI and HDMI video outputs
- S-Model Includes:
- CFast 2.0 media
- 12V battery input
- On-camera controls
- Programmable I/O – assign and define camera signals
- 10 Gb Ethernet Connectivity Option
What’s in the box?
- Power supply with XLR extender
- Ethernet Cable
- Mini-SDI video cable
