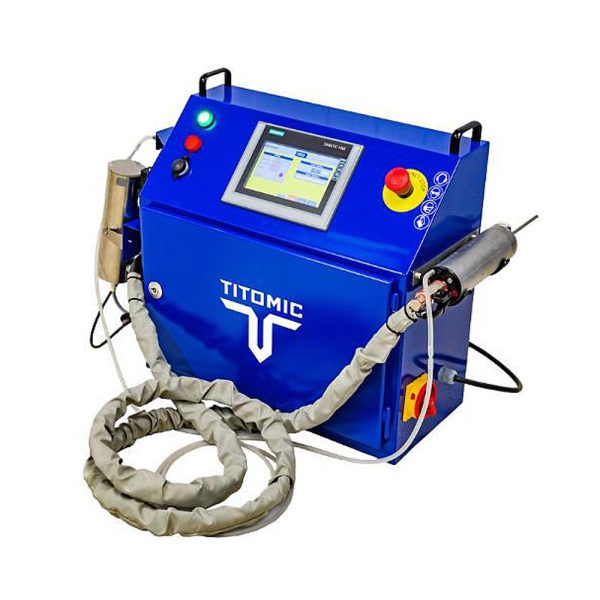

TITOMIC D523 – Low-Pressure Cold Spray System

TITOMIC D523 – On-site metal repairs & coatings with low-pressure cold spray

Whether you’re working with metals, glass, ceramics or plastics, the TITOMIC D523 low-pressure cold spray system unlocks a wide variety of applications:

  • Prevent and repair corrosive damage and defects in cylinder parts
  • Repair bearing seats
  • Repair forms and patterns for casting plastic, glass and metal
  • Hermetically seal radiators and air conditioning systems
  • Add electrical conductive layers to materials
  • Additive manufacturing and more

Features

  • Automated robotic production
  • Fuse dissimilar metals to create custom solutions
  • Additive manufacturing without distortion or oxidation
  • Create high-performance metal coatings
  • Powder feeder accurate to 0.5μm without clogging
  • Industry-leading build rates
  • Cost-effective digital manufacturing
  • Manufacturing with advanced materials

TITOMIC D523 – On-site metal repairs & coatings with low-pressure cold spray

Whether you’re working with metals, glass, ceramics or plastics, the TITOMIC D523 low-pressure cold spray system unlocks a wide variety of applications:

  • Prevent and repair corrosive damage and defects in cylinder parts
  • Repair bearing seats
  • Repair forms and patterns for casting plastic, glass and metal
  • Hermetically seal radiators and air conditioning systems
  • Add electrical conductive layers to materials
  • Additive manufacturing and more

Features

  • Automated robotic production
  • Fuse dissimilar metals to create custom solutions
  • Additive manufacturing without distortion or oxidation
  • Create high-performance metal coatings
  • Powder feeder accurate to 0.5μm without clogging
  • Industry-leading build rates
  • Cost-effective digital manufacturing
  • Manufacturing with advanced materials

System

  • Low process temperature prevents part deformation, structural changes, mechanical and thermal stresses
  • Localised spraying jet provides greater accuracy
  • Restores thin wall parts where other methods fail
  • High adhesion: 30-60 MPa
  • Low porosity: < 1 %

Materials

A wide range of metals can be processed. These include:

  • Aluminium
  • Zinc
  • Copper
  • Tin
  • Nickel
  • Babbit
  • Gold
  • Silver
  • Platinum
  • Inconel 625 (He)

With problem-solving in our DNA, we can recommend the right materials for the best possible outcome.

Specifications
System D523
Powder feeders (PB-45) 2
Power connection 230V AC 50/60 Hz
Power 3.3 KW
Temperature settings Variable 20 – 600ºC
Parameter logging (temperature, pressure and flow) Yes
Closed-loop integration Yes (optional)
Spray parameter library Yes
Carrier gas: Air/N2 Yes
Gas requirement 6 bar/400L/min
Mix air / N2 Yes (optional)
Particle velocity -600 m/sec
Spray rate -30 gr/min
Air/N2 pressure control/ regulating Yes
Full colour HMI touchscreen Yes
Bus or Ethernet/IP connections Yes
Recommended for industrial robot applications Yes
Weight and dimensions 43kg / 550 x 1420 x 266mm
